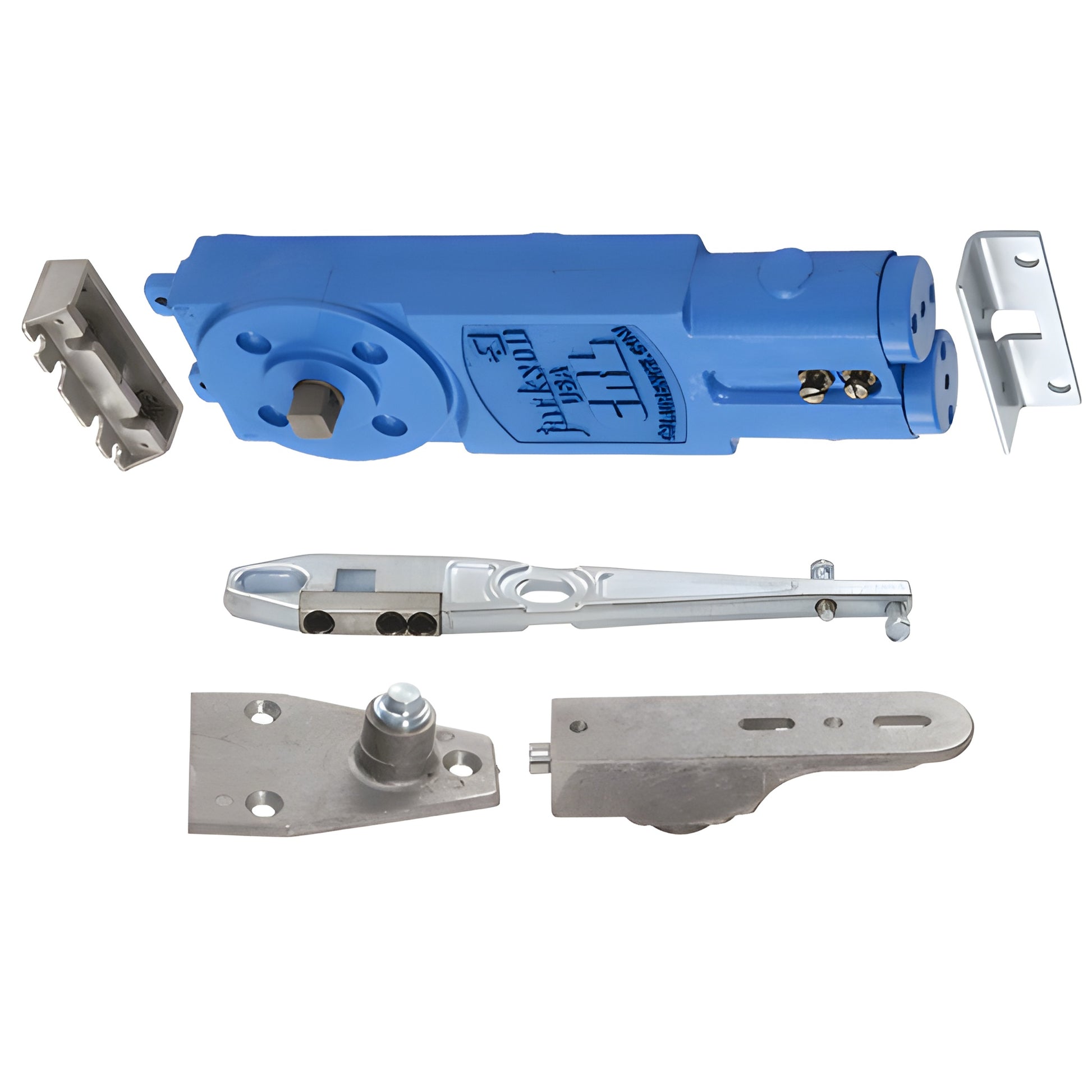

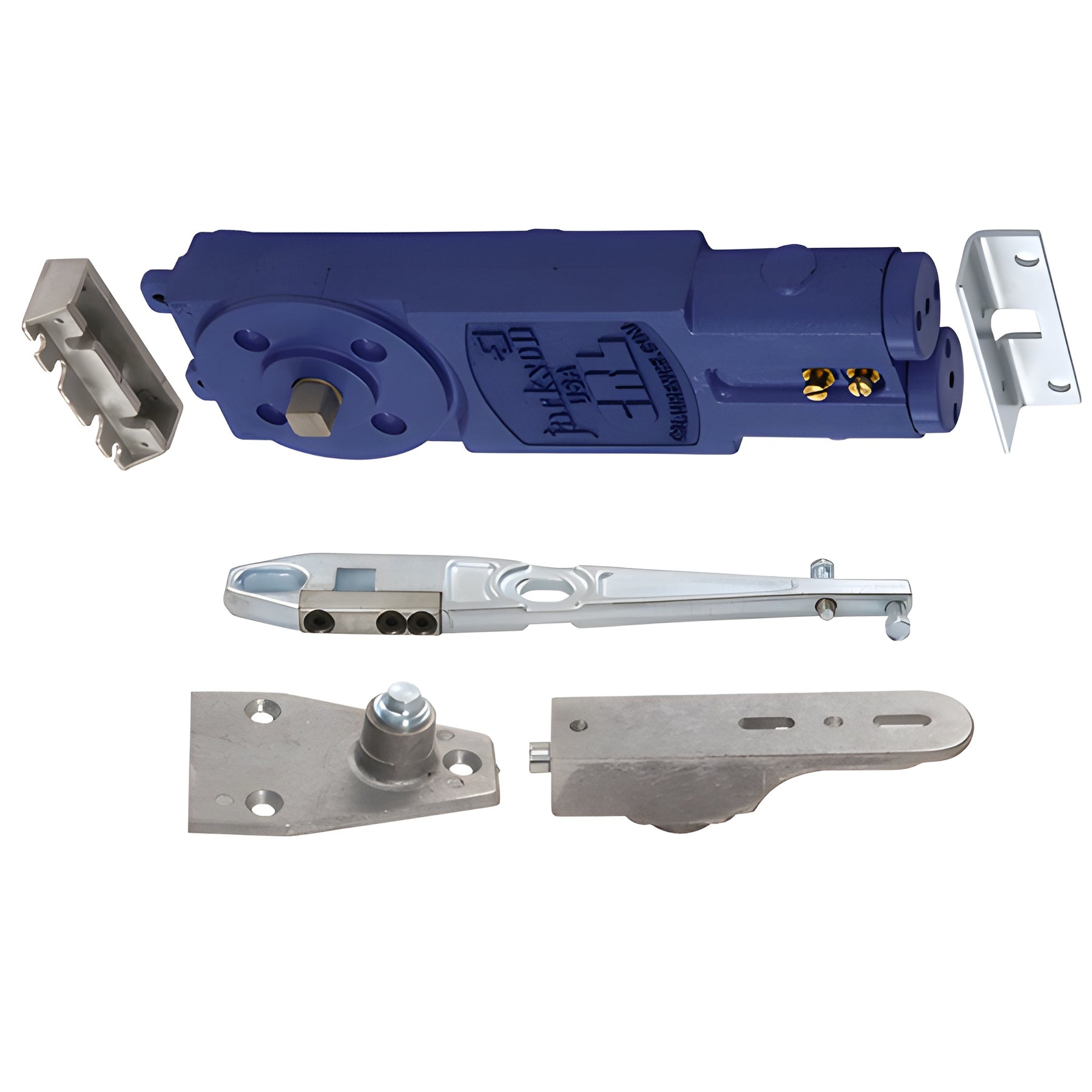

CRL Jackson® 105° Hold-Open Concealed Overhead Closer with S Hardware
CRL Jackson® 105° Hold-Open Concealed Overhead Closer with S Hardware
Regular price
$423.18 CAD
Regular price
Sale price
$423.18 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 21101S18
Shipping Weight: 11.34 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 11.34 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Americans with Disabilities Act
Yes
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Bottom Door Rail Depth
1-1/2
Bottom Pivot Type
Floor Mount Pivot
Brand
Jackson
Closer Type
Overhead Concealed
Handing
Double Acting
Hold Open
105°
Includes
20101M18, 20219, 20400B, 20902
Material
Aluminum
Maximum Door Weight
250
Package Type
Side Load S
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
20190628, 20190313, 20510, HMC035, DCHSAS, CRL8010SCP, SLB3, SLS1
Similar
21101GE18, 21101U18
Spindle
1/2
Spring Size
Adjustable
Top Rail Depth
1/2
Type
Center Hung
UL Listed
Yes
Overview
- Suitable for doors 30" to 48" (762 mm to 1.22 m) wide to meet A.D.A. opening force requirements
- Floor-mounted pivot for 1-1/2" (38 mm) deep bottom rail
- 3/16" (5 mm) height adjustment
- UL Listed
- 5 Year Limited Warranty
CRL Jackson® Adjustable Spring Power Overhead Concealed Door Closer (SKU 21101S18) — adjustable from Size 1 (Barrier-Free) through Size 4 (Regular) for A.D.A. barrier-free applications. Set the spring power to meet A.D.A. opening force limits while retaining control for a wide range of door types and sizes. Ideal when you need an ADA-compliant, adjustable overhead concealed door closer for commercial and institutional entrances.
A.D.A. NOTE: While the adjustable spring power closer can be tuned for A.D.A. opening forces, adequate closing force may not be achieved on all sites and door sizes when complying with A.D.A. requirements.
NOTE: We recommend installing an auxiliary floor or overhead door stop to prevent damage from over-extension of maximum allowable door swing.
Product Warning: Closers set to comply with A.D.A. opening forces might not provide sufficient spring power to reliably control and close the door under varying site conditions and door sizes.
For replacement, compliance guidance, or to order SKU 21101S18, contact CRL or add to cart now.
