CRL Jackson® 105° Overhead Concealed Closer No Hold-Open 1-13/64"
CRL Jackson® 105° Overhead Concealed Closer No Hold-Open 1-13/64"
Regular price
$355.02 CAD
Regular price
Sale price
$355.02 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 20106M17
Shipping Weight: 11.2 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 11.2 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Americans with Disabilities Act
Yes
Body Height
1-11/16 in. (42.9 mm)
Body Length
11-5/8 in. (295.3 mm)
Body Width
3-11/16 in. (93.7 mm)
Case Quantity
4
Closer Type
Overhead Concealed
Door Height
96 in. (2438.4 mm)
Handing
Double Acting
Maximum Door Weight
250 lbs. (113.4 kg)
Maximum Door Width - Exterior
42 in. (1066.8 mm)
Maximum Door Width - Interior
36 in. (914.4 mm)
No Hold Open
105°
Recommended Door Type
Aluminum, Hollow Metal
Spindle
1-13/64 in. (30.6 mm)
Spring Size
Adjustable
UL Listed
Yes
Overview
- Maximum adjustability for ADA requirements versus stack pressure
- Patented Dual Compression Technology — adjustable spring power sizes 2–4
- Designed for ADA barrier-free applications
- Extra-long 1-13/64" spindle for use with patch fittings and rail hardware — 105° no hold open
- U.L. Listed with a five-year limited warranty

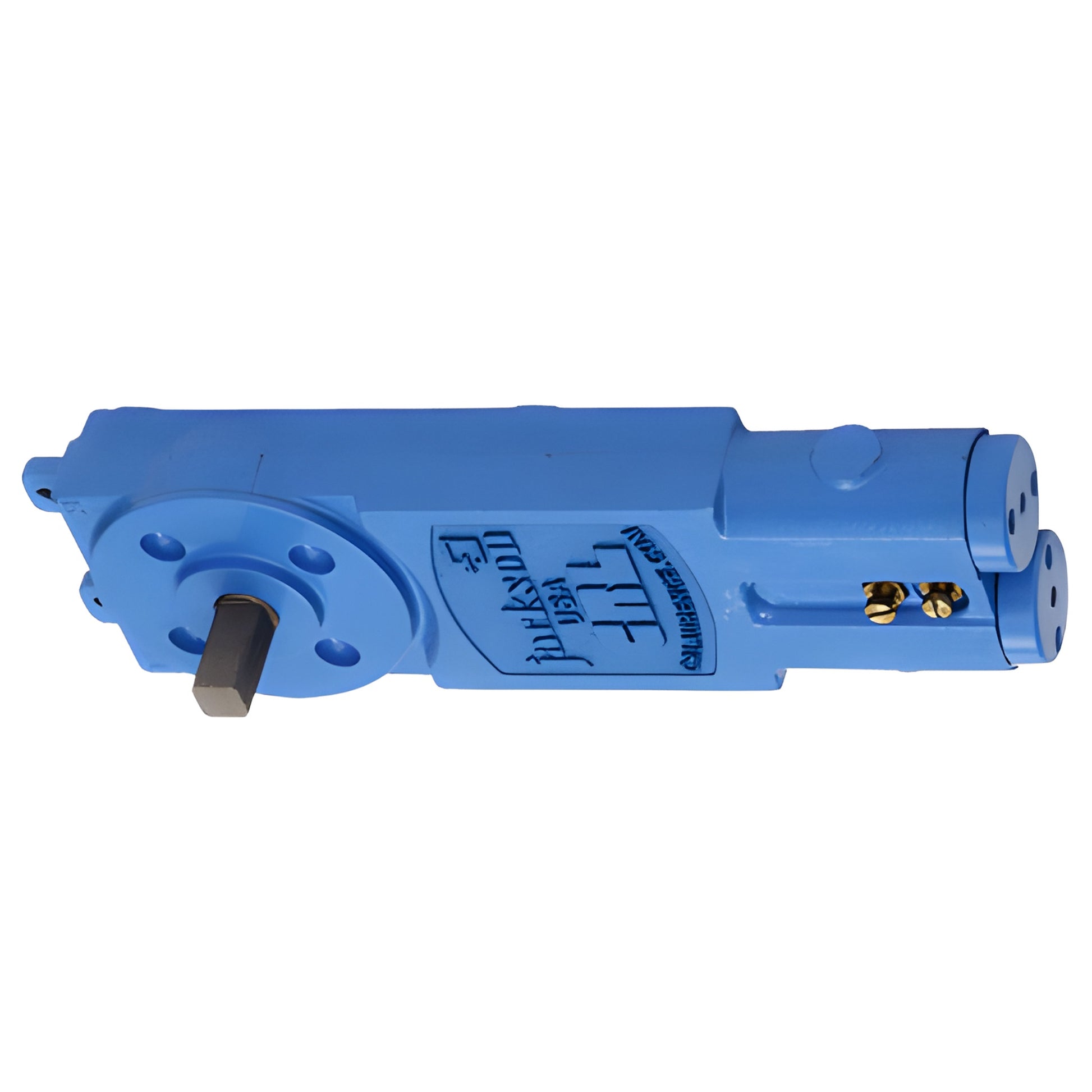

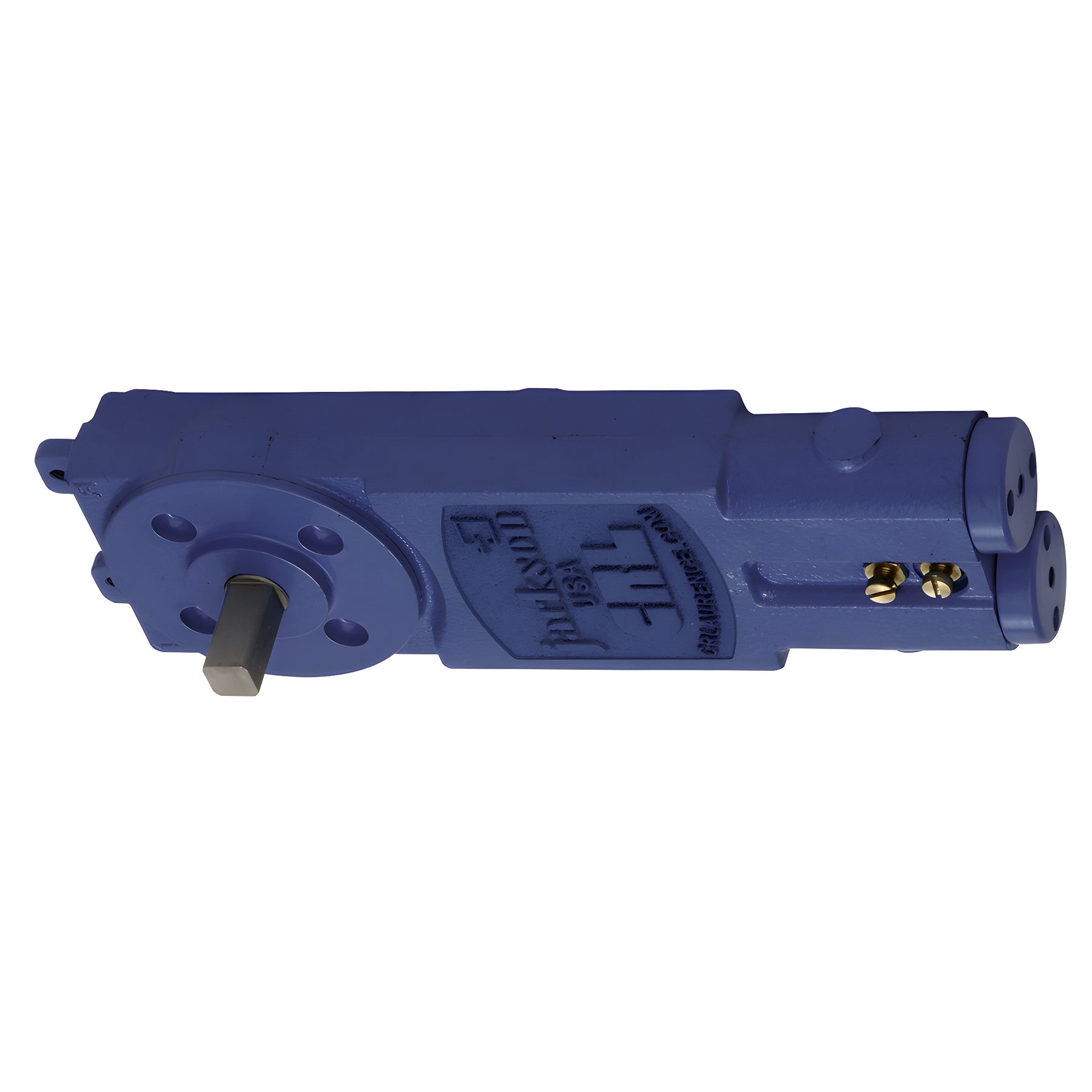

This CRL Jackson® Adjustable Spring Power Overhead Concealed Closer Body (SKU: 20106M17) is engineered for ADA overhead concealed closer installations and barrier-free glass door applications. The extra-long 1-13/64" spindle gives added engagement with patch fittings and rail hardware, while Patented Dual Compression Technology delivers finer spring tension adjustment and improved efficiency across spring power sizes 2–4. Independent hydraulic valves allow precise control to balance building codes, stack pressure, and reliable door closure. Easily retrofits most fixed-spring overhead concealed closers — a professional-grade choice for glass doors and commercial ADA door projects.
Product Warning:
Closers set to comply with ADA-specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size. Mounting clips are not included — if not reusing existing clips, purchase the correct mounting clip package for your application. Contact Jackson® Technical Sales for assistance selecting the proper mounting clip package.
Order SKU 20106M17 today to specify a reliable ADA overhead concealed closer for commercial glass doors.
