Product Details
- Includes Both Surface Mount and Flush Mount Fittings
- Allows 1/8" (3 mm) Vertical Adjustment
- Polished Stainless Finish
- Includes Bracket for Soft Brake

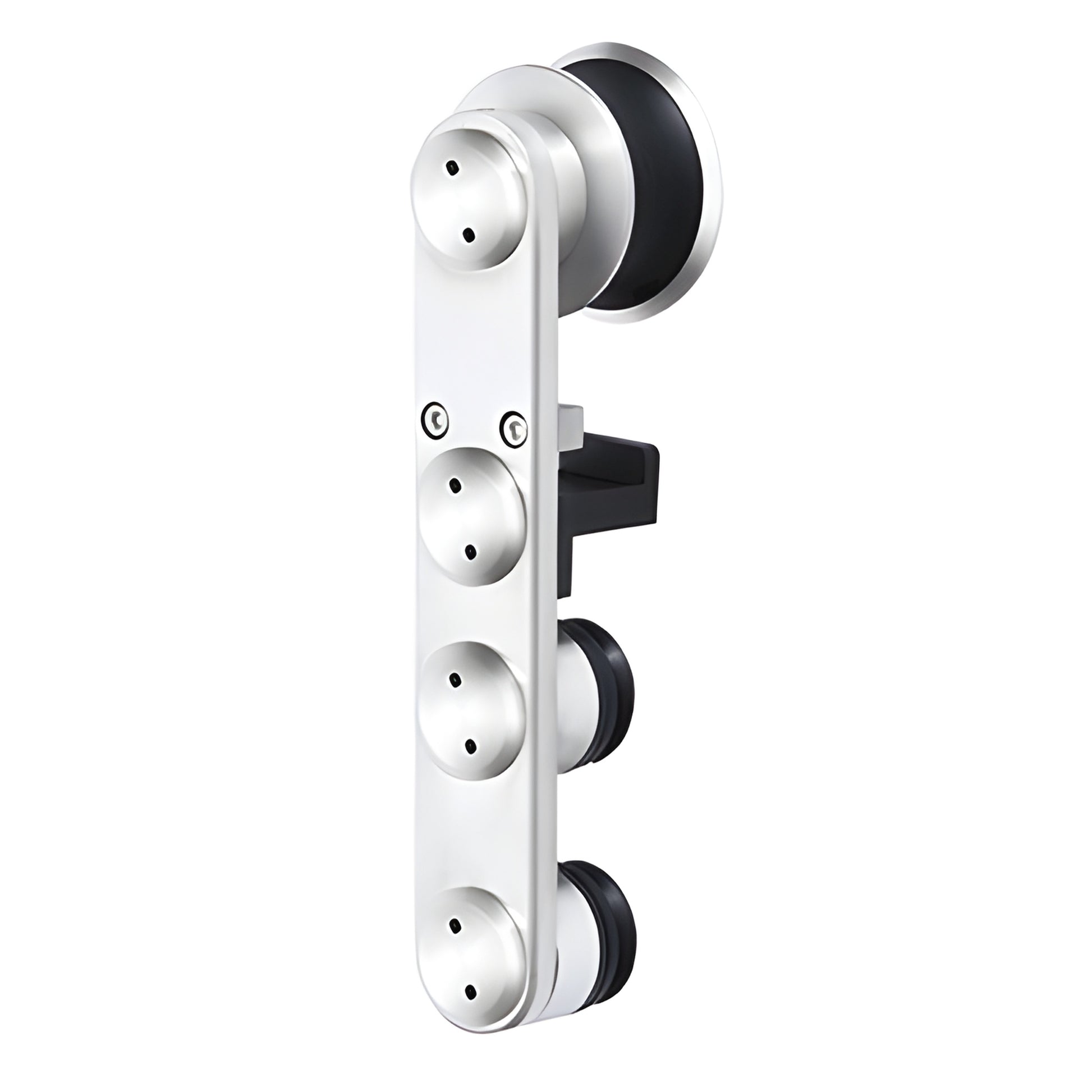

Two CRL Laguna Series Anti-lift Top Rollers are needed for each sliding door panel. These will be placed on the Cat. No. LS104PS Top Sliding Tube after it has been mounted to the glass panels or wall. The door panel is then positioned and attached to the rollers. The anti-lift Top Rollers will allow for 1/8" (3 mm) up or down adjustment. Cat. No. LS505LPS and Cat. No. LS505RPS are the soft brake brackets to be used with Cat. No. LS500PS.
Product Warning:
STRUCTURAL DISCLAIMER - All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
