CRL Light-Duty Narrow Floor Spring Closer, 180° with 90° Hold-Open
CRL Light-Duty Narrow Floor Spring Closer, 180° with 90° Hold-Open
Regular price
$225.79 CAD
Regular price
Sale price
$225.79 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL8420
Shipping Weight: 10.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 10.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Auxiliary Stop Recommended
Yes

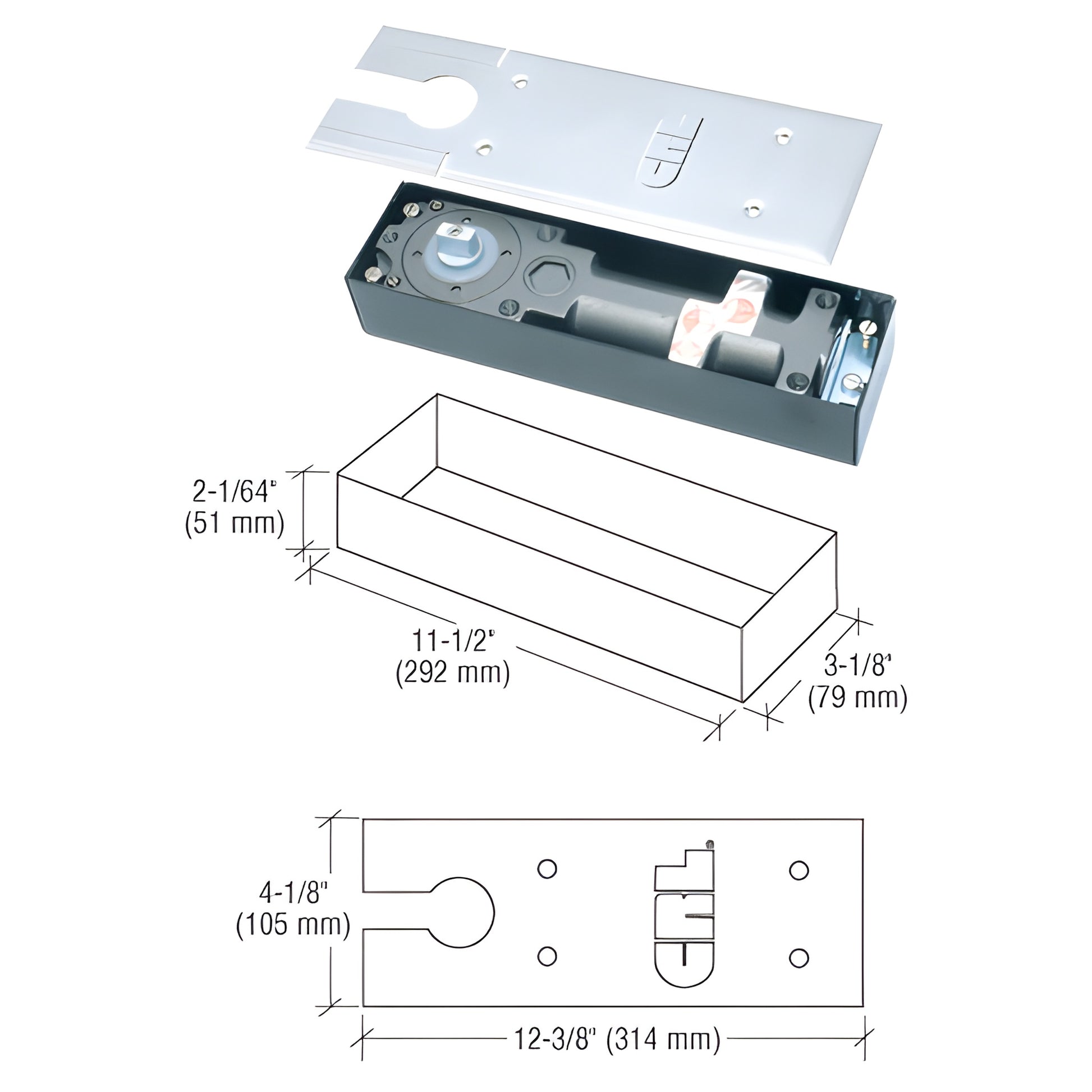

Body Height
2-1/64
Body Length
11-1/2
Body Width
3-1/8
Closer Body With Box
Yes
Closer Type
Floor Closer
Door Height
96
Handing
Double Acting
Hold Open
180°
Includes
CRL84CB, CRL9040S2
Independent Closing and Latching Valves
Yes
Interchangeable Spindles
Yes
Interior Or Exterior Doors
Yes
Maximum Door Width - Exterior
48 Inches
Maximum Door Width - Interior
54 Inches
Maximum Weight Center Hung
264
Opening Degree
90
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
CRL84CB, CRL9040S3
Similar
CRL8534, J990NHOD
Spindle Included
Yes
Spring Size
Light
UL Listed
Yes
Overview
- Perfect door closer for CRL patch hardware installations
- Interchangeable spindle heights for finished-floor clearance adjustment
- 5 Year Limited Warranty
- UL Listed
These CRL Narrow Width Floor Mounted Door Closers (SKU: CRL8420) are preferred for doors fitted with patch hardware because their smaller cover plates create a cleaner, more attractive installation. The closer includes separate valves to control closing and latching speeds and is available in 90° Hold Open and No Hold Open models.
The standard 1/8" (3 mm) collar-height spindle is supplied, providing a 5/16" (8 mm) clearance from finished floor to door bottom. Optional spindles accommodate different finished-floor heights. Accessories such as cover plates, pivots, center-hung and offset arms are available to complete patch-hardware floor closer installations.
NOTE: Designed to open to a maximum of 180°. An auxiliary floor or overhead stop is required to stop the door at less than 180°.
SPECIFICATIONS:
Maximum Door Weight: 264 lbs (120 kg)
Maximum Interior Door Width: 42" (1.07 m)
Maximum Exterior Door Width: 38" (965 mm)
Product Warning:
The 8400 Series Floor Closer is designed to open to a maximum of 180°. An auxiliary floor or overhead stop is required to stop the door at less than 180°.
For technical questions or to order CRL8420 narrow width floor mounted door closers for patch hardware, contact CRL Customer Service or add to cart now.
