Product Details
- Several Sizes in Our Most Popular Finishes
- Heavy 3/4" (19 mm) Diameter Tubular Construction (1.5 mil Thick)
- No Metal Washers Creates a Sleek, Continuous Profile
- Use Monolithic Tempered Glass

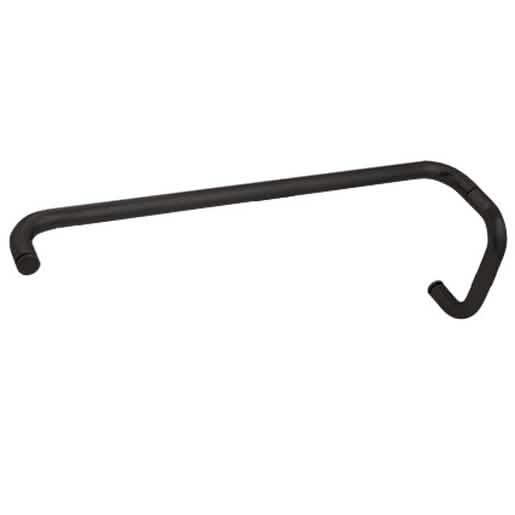

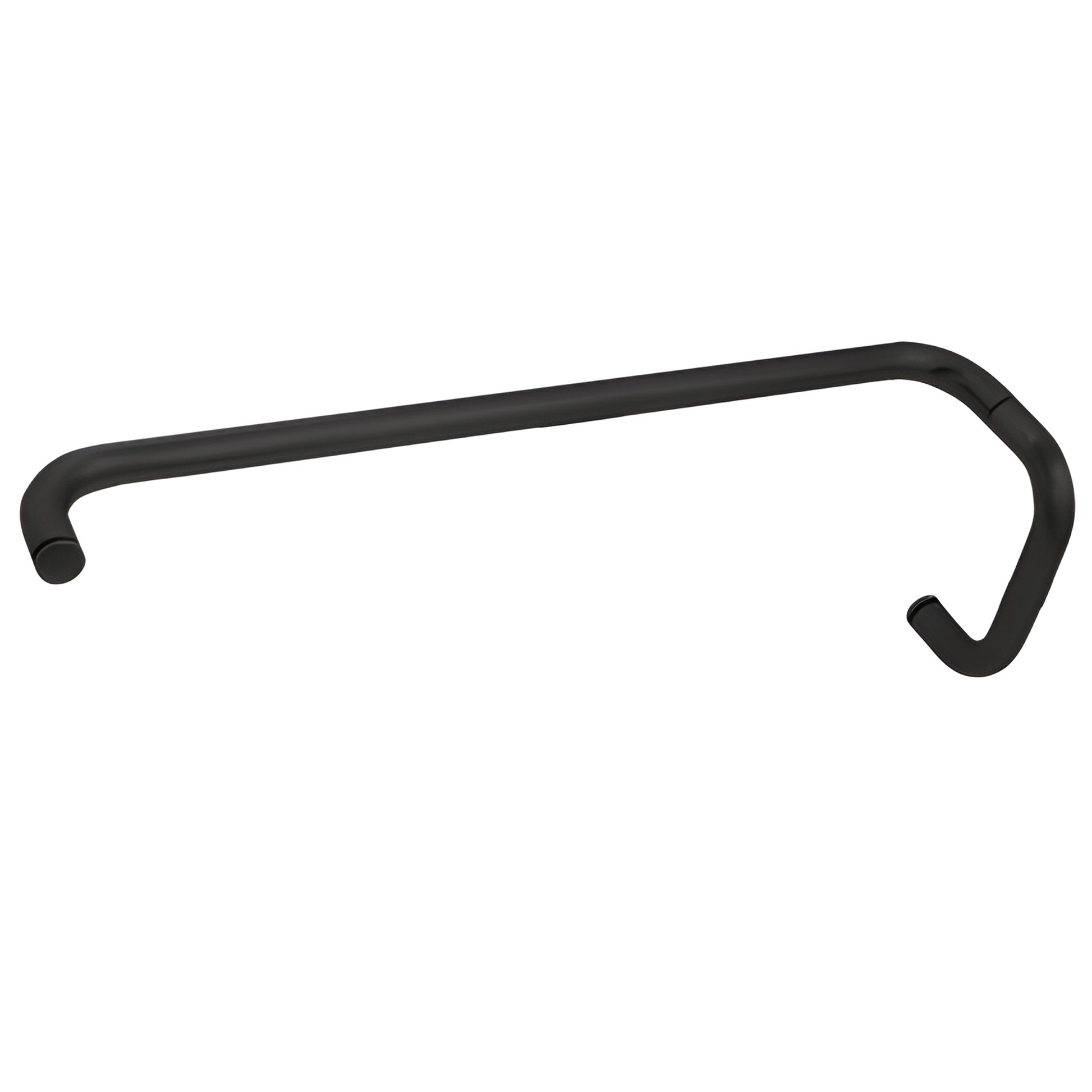

The CRL BM Series of Pull Handle/Towel Bar Combinations Without Metal Washers are provided with all the hardware required for installation. They are constructed of 1.5 mil thick heavy brass tubing. Each set consists of a pull handle/towel bar set, along with plastic washers to protect against glass-to-metal contact.
SPECIFICATIONS:
Material: 3/4" (19 mm) Diameter Brass Tubing (1.5 mil thick)
Glass Thickness Range: 1/4" to 1/2" (6 to 12 mm)
Hole Diameter Required: 1/2" (12 mm)
Center-to-Center Hole Spacing:
6" Pull = 6" (152 mm)
8" Pull = 8" (203 mm)
12" Pull = 12" (305 mm)
12" Towel Bar = 12" (305 mm)
18" Towel Bar = 18" (457 mm)
22" Towel Bar = 22" (559 mm)
24" Towel Bar = 24" (610 mm)
AVAILABLE SIZES:
Cat. No. BMNW6X12 6" Pull/12" Towel Bar
Cat. No. BMNW6X18 6" Pull/18" Towel Bar
Cat. No. BMNW6X22 6" Pull/22" Towel Bar
Cat. No. BMNW6X24 6" Pull/24" Towel Bar
Cat. No. BMNW8X18 8" Pull/18" Towel Bar
Cat. No. BMNW8X22 8" Pull/22" Towel Bar
Cat. No. BMNW8X24 8" Pull/24" Towel Bar
Cat. No. BMNW12X24 12" Pull/24" Towel Bar
