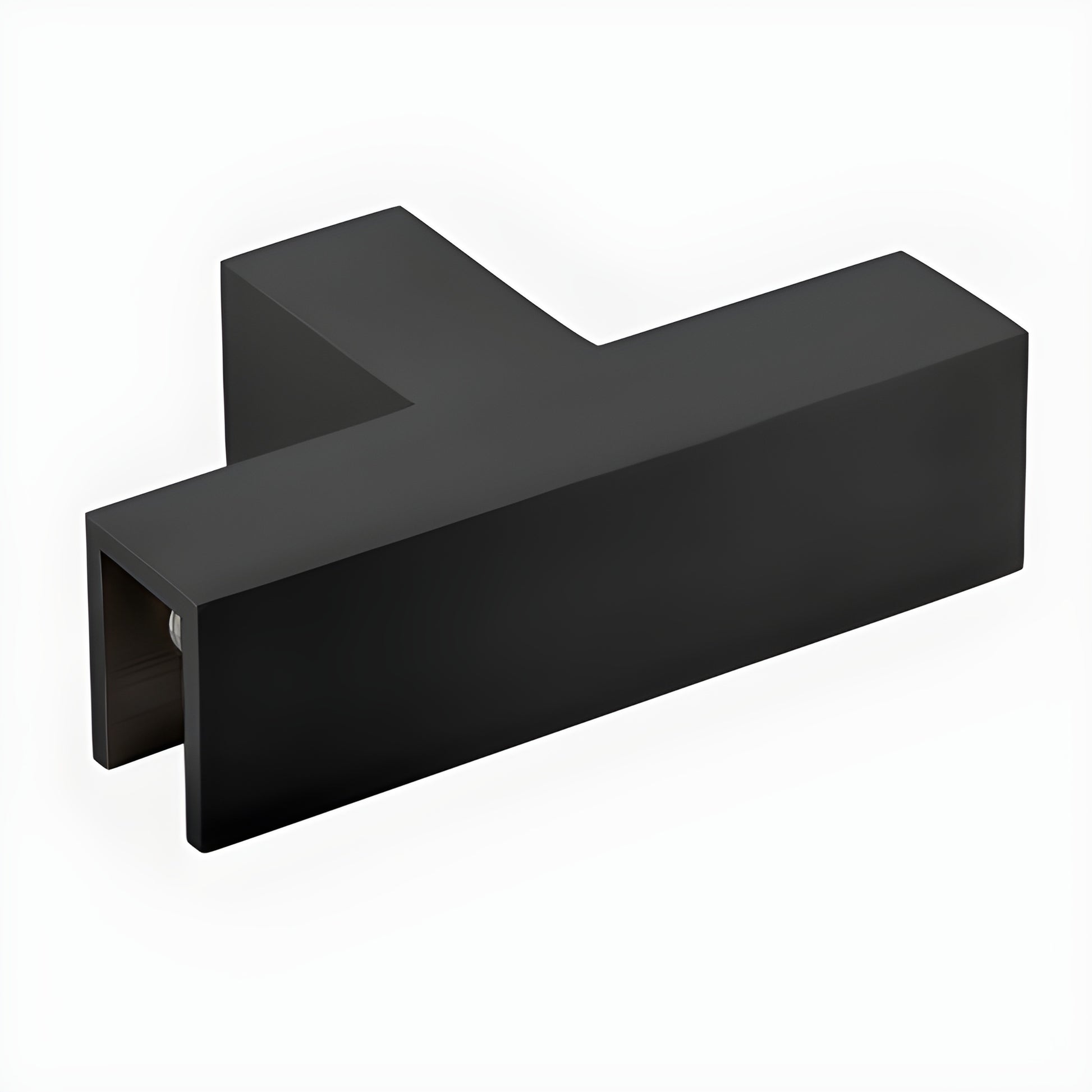

CRL Matte Black 90° Sleeve-Over T-Junction Glass Clamp

• Fits 5/16" to 1/2" (8 to 12 mm) thick glass
• Solid brass construction for corrosion resistance
• Use with monolithic tempered glass
• Special T-junction design for glass-to-glass connections
• Helps resist shear forces in frameless shower installations

CRL Sleeve Over Glass Glass-to-Glass T-Junction Clamp (SKU: S0GCT90MBL) is a mechanical fastener engineered for frameless shower glass T-junctions and other glass-to-glass connections. No special glass fabrication is required. Use these clamps to hold panels in position while silicone sealant cures—the sealant provides waterproofing and the long-term pull strength to keep panels from separating. Clamps are secured with nylon-tipped Allen set screws for secure, damage-minimizing tightening.

P612** replacement screws

SPECIFICATIONS:
Glass Thickness: 5/16" to 1/2" (8 to 12 mm)
Material: Solid Brass
Includes: Gaskets
No glass fabrication required

NOTE: Clamps tighten using nylon-tipped Allen screws. These clamps are not intended to replace headers or support bars. Contact CRL Frameless Shower Technical Sales for application guidance and load requirements.

Product Warning:
These clamps are not designed to take the place of headers or a support bar.

Need help selecting the right clamp for your frameless shower? Contact CRL Frameless Shower Technical Sales or add SKU S0GCT90MBL to your cart to order.
