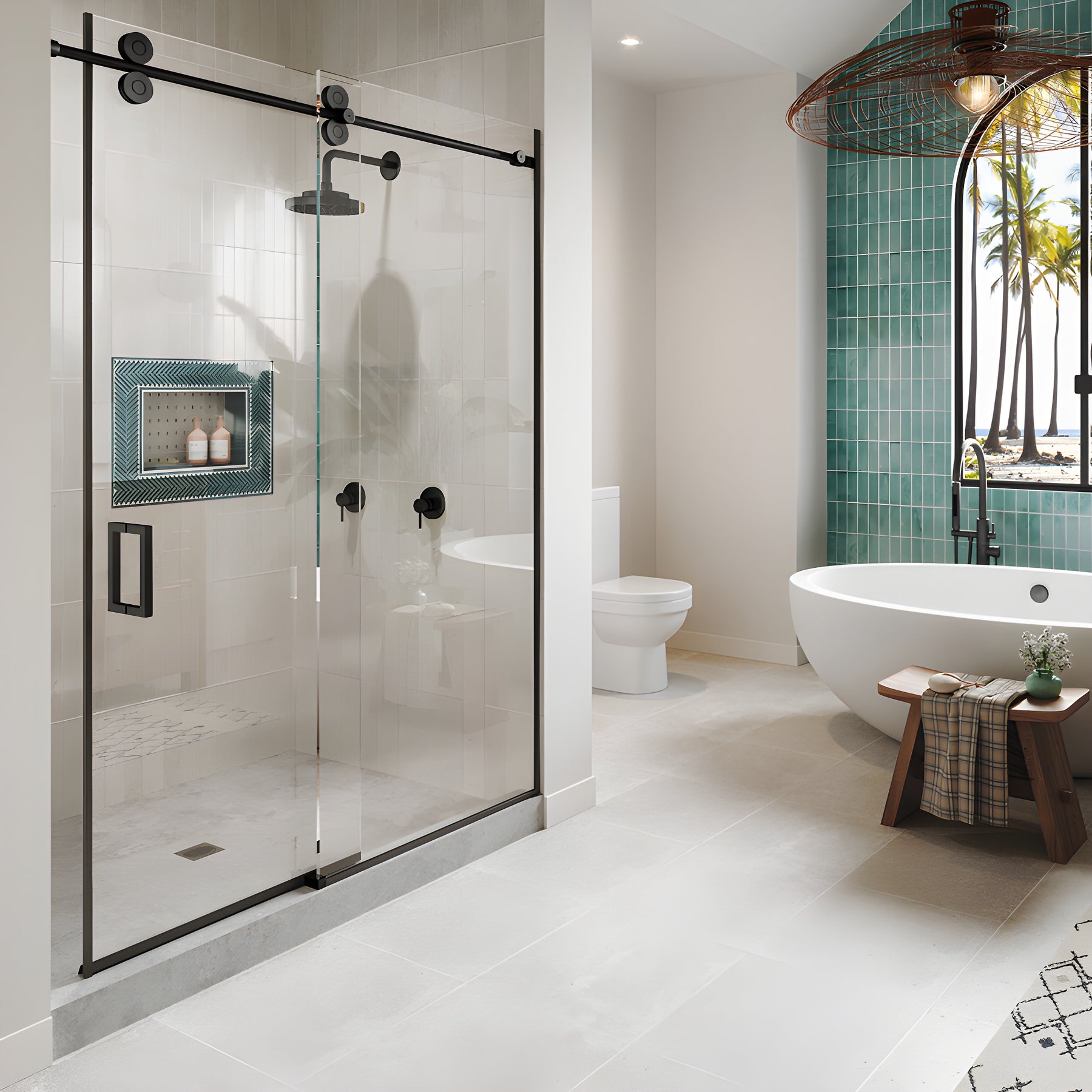

CRL Matte Black Complete 180º Crescent Series Sliding System
Item # CRE78MBL
Finish (5)
Part Type (3)
- Slider Kit

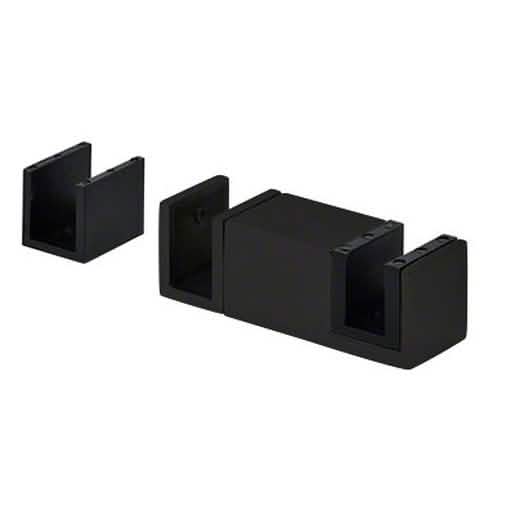

- 90° Accessory Kit
- Replacement Rollers
Overview
| SKU | CRE78MBL |
|---|---|
| Sold As | 1 Each |
| Design Style | Squared |
| Enclosure Type | Corner, Niche, Bathtub, Tailor Made Solutions |
| Finish/Color | Matte Black |
| Glazing Thickness | 3/8 in., 1/2 in. (10 mm, 12 mm) |
| Length | 78 in. (1981 mm) |
| Material | Stainless Steel |
| Maximum Door Height | 80 in. (2032 mm) |
| Maximum Door Weight | 100 lbs. (45.4 kg) |
| Maximum Door Width | 36 in. (914 mm) |
| Maximum Opening Width | 78 in. (1981 mm) |
| Opening Style | Slide |
| Panel Type | Single Panel Sliding |
| Roller Location | Top |
| Series | Crescent |
Description
- System Features One Sliding Door and One Fixed Panel
- Quality Roller Bearings Assure Quiet Door Movement

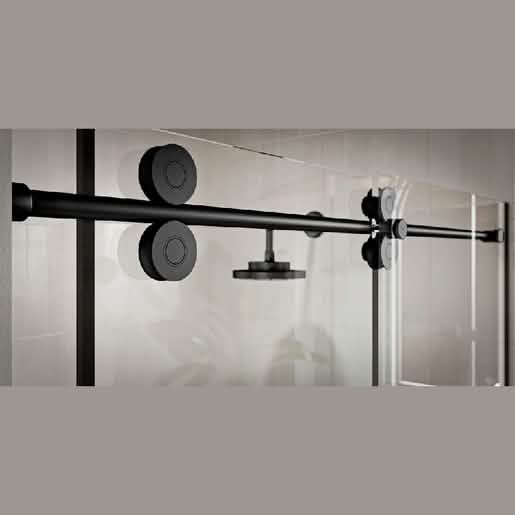

- Circular Header and Rollers Provide Symmetrical Aesthetics
- Polished Stainless, Brushed Stainless, and Matte Black Finishes
- Handle or Knob for Door Glass Ordered Separately
- Glass Clamps or U-Channel for Fixed Panel Ordered Separately
- Accommodates 1/2" or 3/8" (12 or 10 mm) Thick Tempered
- Safety Glass (Not Included)

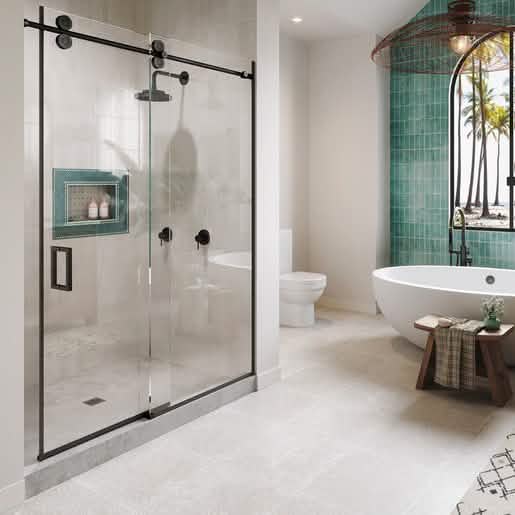

The circular shaped Header and the round Rollers of the Crescent Series Sliding Door System are the perfect complement to each other. They help provide a luxurious sliding shower door system and a soft décor. The use of minimal hardware lends itself to the popular modern sliding shower door systems by showing more glass, and less hardware. These quality Rollers assure quiet door travel, and make the door easy to slide. The Crescent Series Sliding System accommodates 1/2"or 3/8" (12 or 10 mm) thick tempered safety glass (not included), and the system allows that the fixed and sliding panels are reversible for installation as desired. The Crescent Series Sliding Door System is available in a choice of polished stainless steel, brushed stainless steel, or the new popular matte black finish.
Create a custom look with our black seals and black edge moldings sold separately. (View Here)

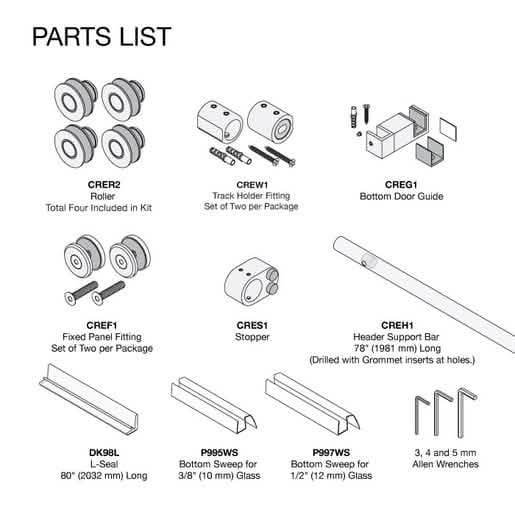

STANDARD 180 DEGREE KIT INCLUDES:
NOTE: Customer to supply choice of Handle or Knob for door, and Glass Clamps or U-Channel for fixed panel.
