CRL Matte Black Complete 180º Premium Tofino Series Sliding System
Item # TFN78MBL
Finish (3)
-
Brushed Bronze -
Matte Black -
Satin Brass
Part Type (2)
- Slider Kit
- 90° Accessory Kit & Bottom Guide
Overview
| SKU | TFN78MBL |
|---|---|
| Sold As | 1 Each |
| Design Style | Concealed/Premium |
| Enclosure Type | Corner, Niche, Bathtub, Tailor Made Solutions |
| Finish/Color | Matte Black |
| Glazing Thickness | 5/16" to 3/8" (8 to 10 mm) |
| Length | 78 in. (1981 mm) |
| Material | Stainless Steel |
| Maximum Door Weight | 90 lbs. (41 kg) |
| Maximum Door Width | 36 in. (914.4 mm) |
| Opening Style | Slide |
| Roller Location | Top |
| Series | Tofino |
Description

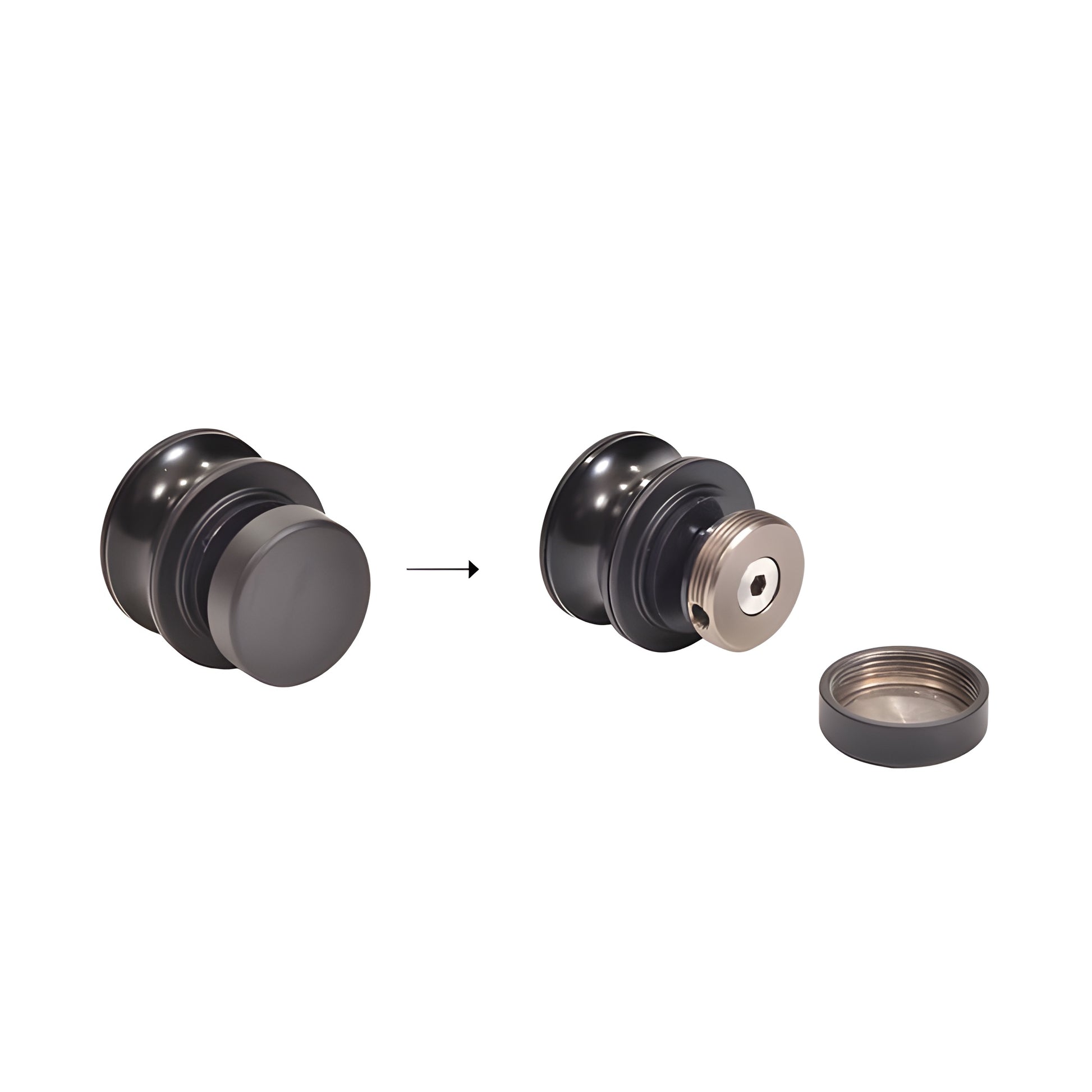

- Beautifully Enhanced Aesthetics Including Concealed Mounting Hardware
- System Features One Sliding Door and One Fixed Panel
- Fixed and Sliding Panels May Be Reversed for Installation
- For 5/16" to 3/8" (8 to 10 mm) Thick Tempered Glass (Not Included)
- Glass Clamps or U-Channel for Fixed Panel Ordered Separately

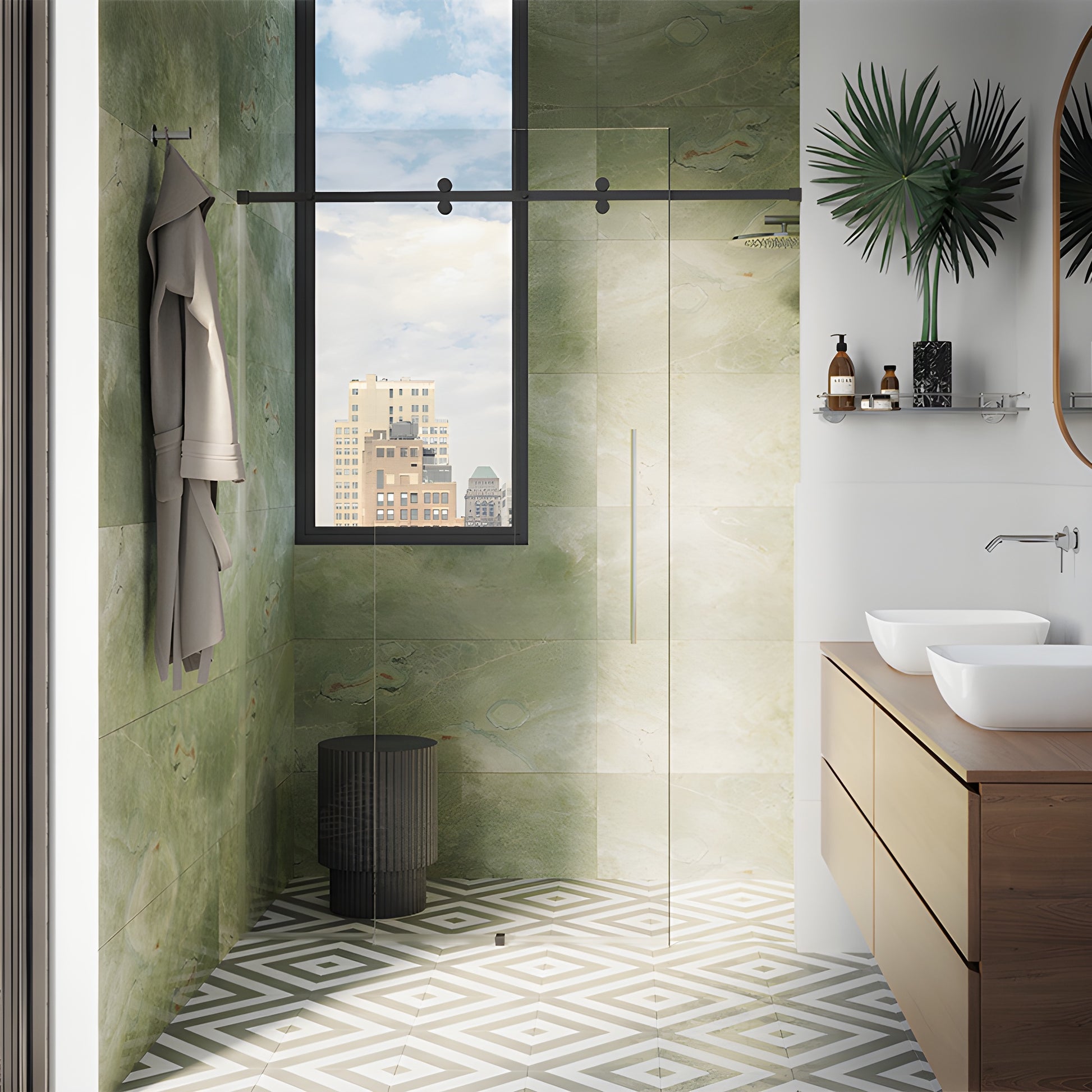

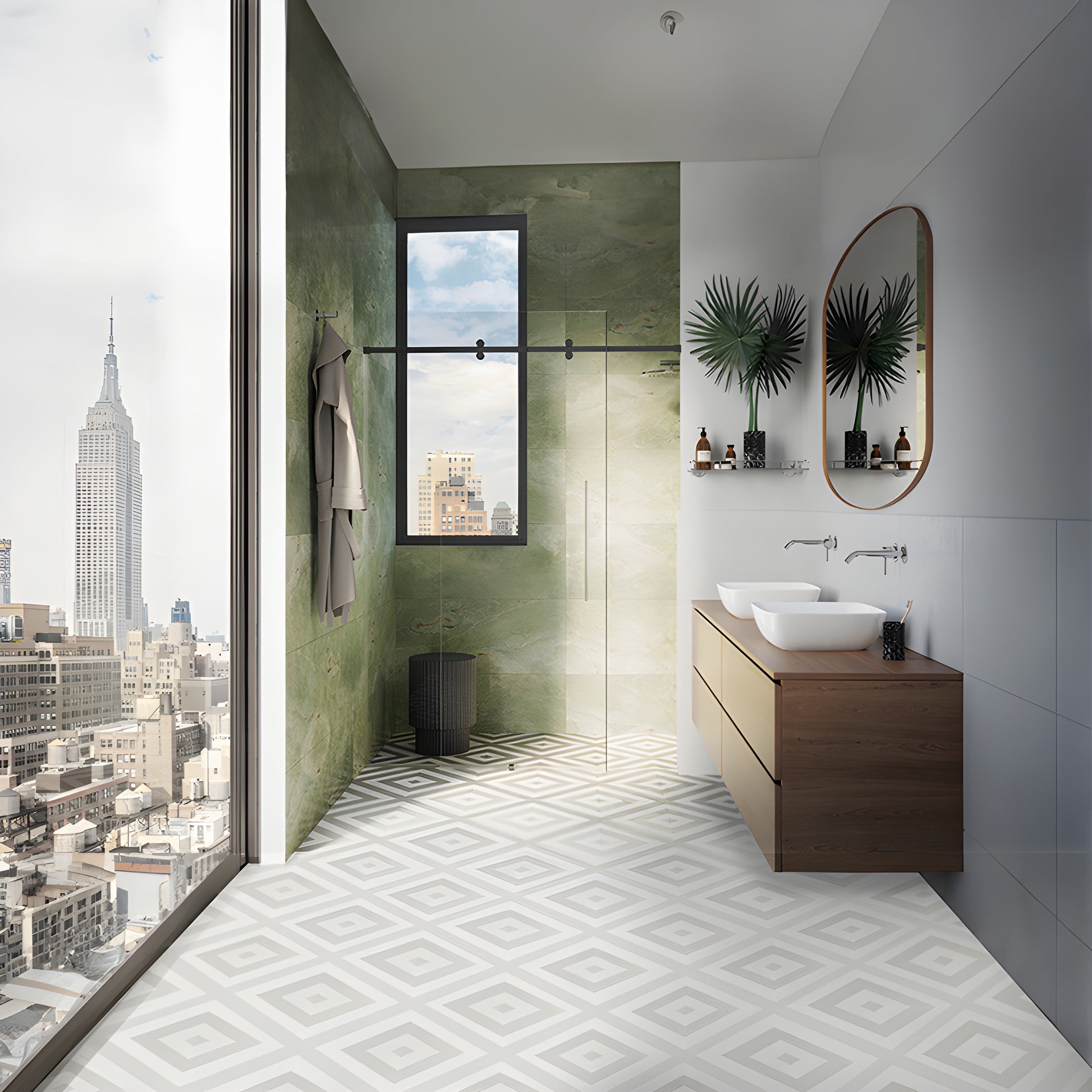

Our CRL 180 Degree Premium Tofino Series Sliding System has an entirely different look from traditional sliding systems. The use of minimal hardware with concealed installation hardware provides a frameless look that gives the enclosure an almost floating appearance. Specially designed roller bearings allow for quiet and easy opening and closing of the door. One sliding panel and one fixed panel make the Tofino Series both practical and beautiful.
