CRL Matte Black Double Roller Laguna Series Glass Mount Single Slider Kit
Item # LSGM25MBL
$1,705.36
CAD
Finish (2)
-
Brushed Stainless Steel -
Matte Black
Overview
| SKU | LSGM25MBL |
|---|---|
| Sold As | 1 Each |
| Finish/Color | Matte Black |
| Glazing Thickness | 3/8 in. To 1/2 in. (10 mm To 12 mm) |
| Glazing Type | Tempered Monolithic |
| Material | 316 Stainless Steel |
| Maximum Door Height | 98-7/16 in. (2500 mm) |
| Maximum Panel Weight | 220 lbs. (100 kg) |
| Maximum Panel Width | 53-9/16 in. (1360 mm) |
| Minimum Door Width | 37-13/16 in. (960 mm) |
| Track Length | 104 in. (2642 mm) |
Description
- This Kit Designed for Glass Mounting
- Anti-Lift Double Roller
- Alloy 316 Steel Construction
- Assembly Contains All Necessary Hardware to Complete the Installation With 3/8" or 1/2" (10 or 12 mm) Tempered Glass
- Spanner Wrench for Installation Sold Separately

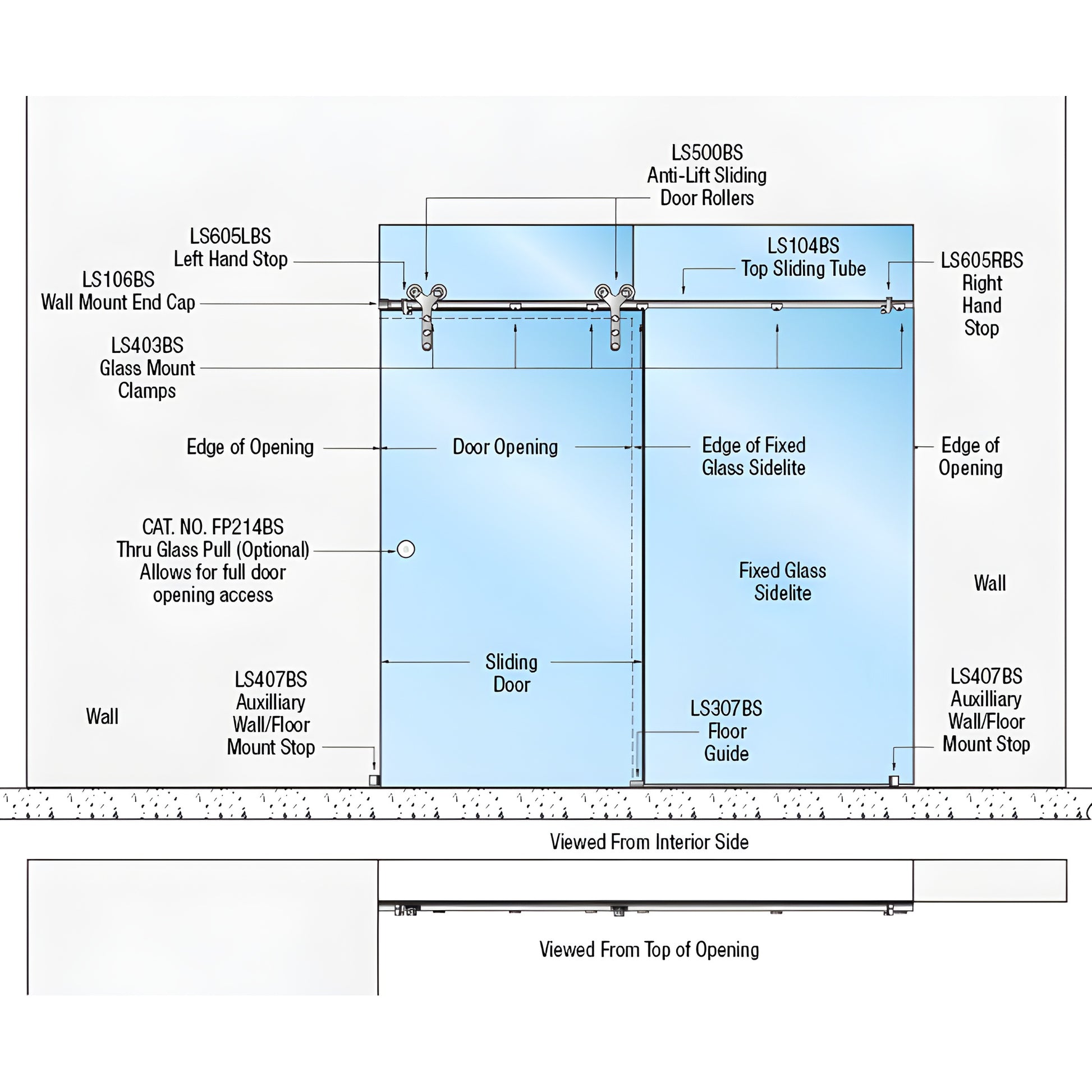

The CRL Double Roller Laguna Series Glass Mount Single Slider Kit contains all the components you will need (except the tempered glass) to complete this style of installation. This model is used in applications where you are attaching a single sliding door in an 'all-glass' opening where you have a wall on one end next to the door, a glass transom above the door, and a fixed glass panel on the other side of the door.
The Anti-Lift Sliding Door Top Rollers can be attached to the glass with either Surface Mount or Flush Mount Fittings (both are supplied). The Rollers have a 1/8" (3 mm) up or down vertical adjustment to aid in door alignment. This system should only be used with 3/8" or 1/2" (10 or 12 mm) tempered glass. Laminated glass cannot be used.
DOOR SYSTEM LIMITATIONS:
Maximum Door Weight: 220 Lbs. (100 kg)
Minimum Door Width: 37-13/16" (960 mm)
Maximum Door Width: 53-9/16" (1.36 m)
Maximum Door Height: 98-7/16" (2.50 m)
Maximum Track Length: 104" (2.64 m)
NOTE: Bi-parting double doors are not possible for this application
Product Warning:
STRUCTURAL DISCLAIMER - All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures.
Specifications
Installation Instructions
