CRL Matte Black Edge Grip Clamp for 3/8 in Glass

• For 3/8" (10 mm) material thickness
• No drilling required in glass or panel materials — ideal edge grip for 3/8" glass panels
• Can be used on corners and edges of panels
• Supplied with an EGCS socket head cap screw

CRL Edge Grips — SKU: EG38MBL provide a no-drill mounting solution for decorative panels and signage, holding 3/8" (10 mm) material securely without piercing the panel face. Designed for quick installation and easy adjustment, these edge grips are a practical choice for glass, acrylic, and other rigid panels where clean aesthetics and damage-free mounting matter. 1-1/4" (32 mm) diameter Edge Grips are available in brass, chrome, satin chrome, 316 brushed stainless, and gun metal finishes, and are compatible with CRL standoffs. For heavier panels, use Edge Grips at the top, bottom, and sides for maximum support.

NOTE: To attach an Edge Grip directly to a substrate, use Cat. No. 12X112PHPSMS (No. 12 × 1-1/2" pan head Phillips sheet metal screw). Screws should be installed into wood blocking when possible. Edge Grips are recommended for rectangular or square panels only.

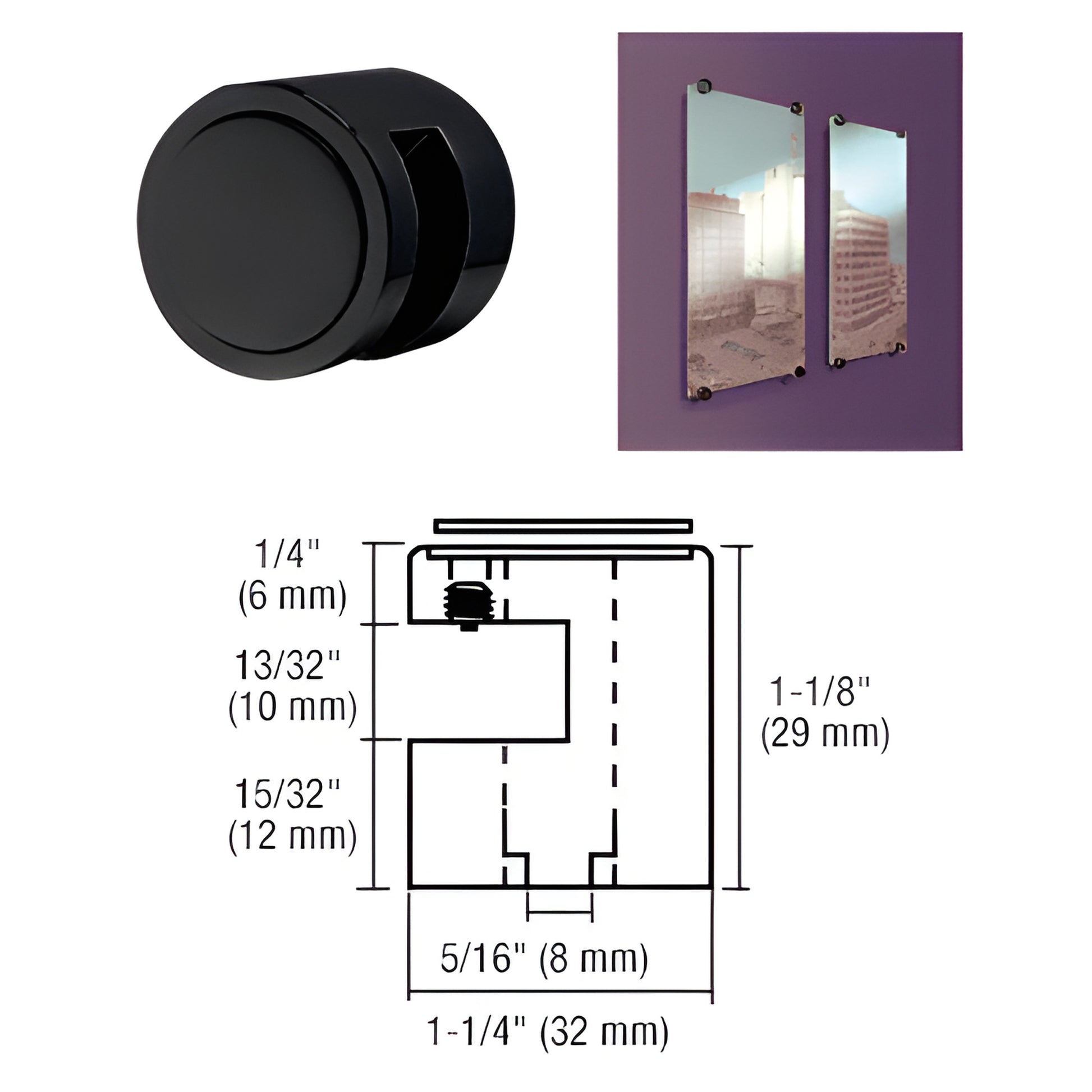

Edge Grip Specs:
Diameter: 1-1/4" (32 mm)
EG14BS Length: 1-1/16" (27 mm)
EG38 Length: 1-1/8" (28.6 mm)
EG12 Length: 1-3/16" (30.1 mm)

Replacement cover disks are available for repairs or replacements.

Product Warning:

For maximum support of heavier panels, install CRL Edge Grips at the top, bottom, and sides.
