Description
| Finish/Color | Matte Black |
| Glazing Pocket Width | 13/32 |
| Glazing Thickness | 3/8 in. (10 mm) |
| Height 3/4 in. | (19 mm) |
| Length 144 in. | (3658 mm) |
| Material | Aluminum |
| Profile | Deep |
| Width 9/16 in. | (14 mm) |
Overview

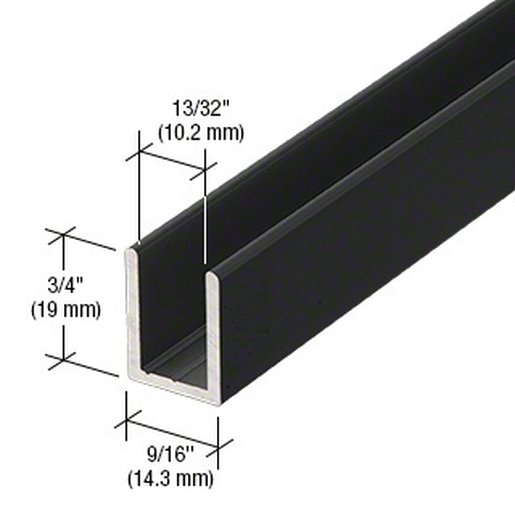

The CRL Deep U-Channel, with its 3/4" (19 mm) tall profile, provides a secure solution for fixing glass panels to walls, ceilings, or floors.
Available in widths for 3/8" and 1/2" (10 and 12 mm) glass, it features a deep pocket design that holds panels firmly in place with wet glazing using clear silicone.
The popular 144" (3.66 m) stock length comes with optional end caps to conceal the channel ends, and it can be used alone or paired with a regular depth U-Channel.
Please note, stock lengths must ship via common carrier unless cut specifically for UPS shipment.
For precise shipping weights and costs, contact CRL Customer Service prior to ordering.
Available in widths for 3/8" and 1/2" (10 and 12 mm) glass, it features a deep pocket design that holds panels firmly in place with wet glazing using clear silicone.
The popular 144" (3.66 m) stock length comes with optional end caps to conceal the channel ends, and it can be used alone or paired with a regular depth U-Channel.
Please note, stock lengths must ship via common carrier unless cut specifically for UPS shipment.
For precise shipping weights and costs, contact CRL Customer Service prior to ordering.
