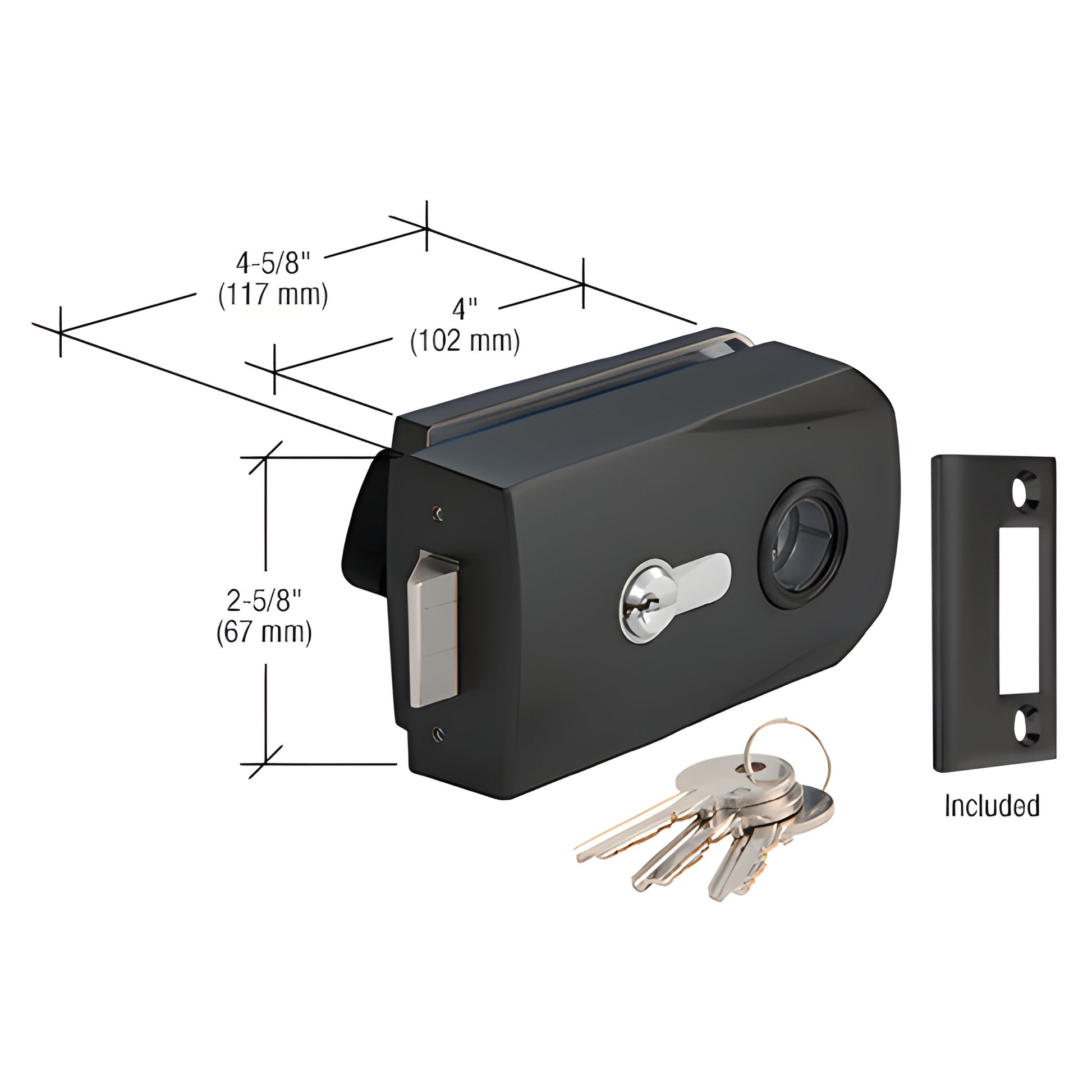

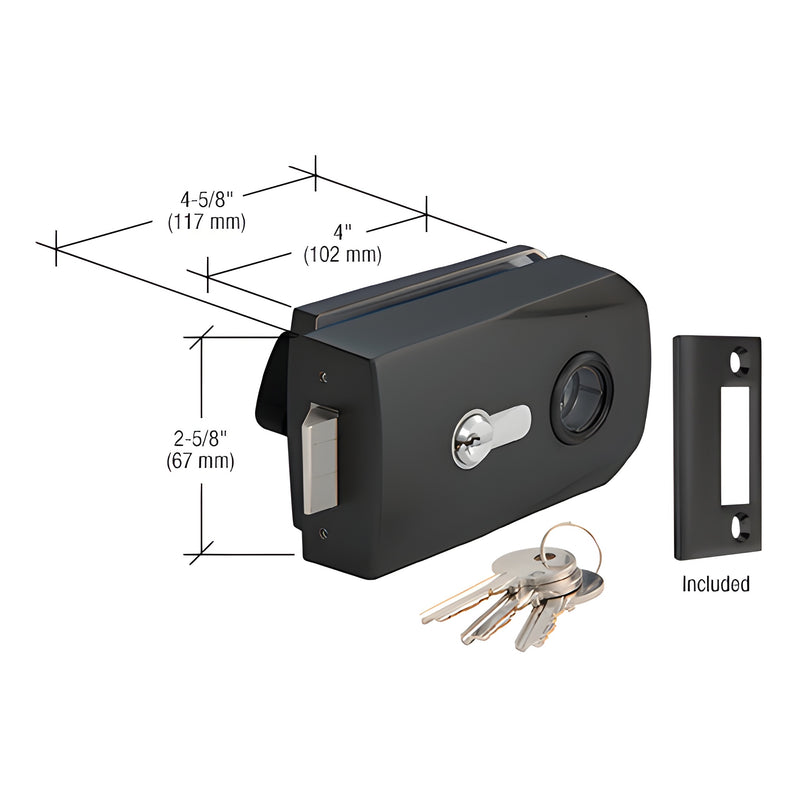

CRL Matte Black Glass Door Lever Lock for Metal Frames
CRL Matte Black Glass Door Lever Lock for Metal Frames
Regular price
$323.96 CAD
Regular price
Sale price
$323.96 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PTH310MBL
Shipping Weight: 3.2 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 3.2 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Matte Black
Glass Mounting Holes Diameter
1-3/4 in. (44 mm)
Glazing Thickness
3/8 in. or 1/2 in. (10 mm or 12 mm)
Height
2-5/8 in. (67 mm)
Length
4-5/8 in. (117 mm)
Series
Slimline
Overview
- Works on single-acting frameless doors
- Compatible with 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass
- Slimline, low-profile design for modern glass door applications
- Intended for doors that close into a frame
CRL Glass Mounted Latch (SKU: PTH310MBL) — a compact glass door latch designed for frameless single-acting doors using monolithic tempered glass. Ideal for commercial and residential glass partition or shower door installations where a latch mounts directly to the glass and the door closes into a frame.
NOTE: Handle is sold separately.
GLASS FABRICATION REQUIRED:
Two 1-7/8" (48 mm) holes in the glass
COMES WITH:
EC3 and EC4 Series cylinder/thumbturn with 3 keys, template, and installation instructions.
Order the PTH310MBL glass-mounted latch today for a slim, secure solution for 3/8" or 1/2" tempered glass doors.
