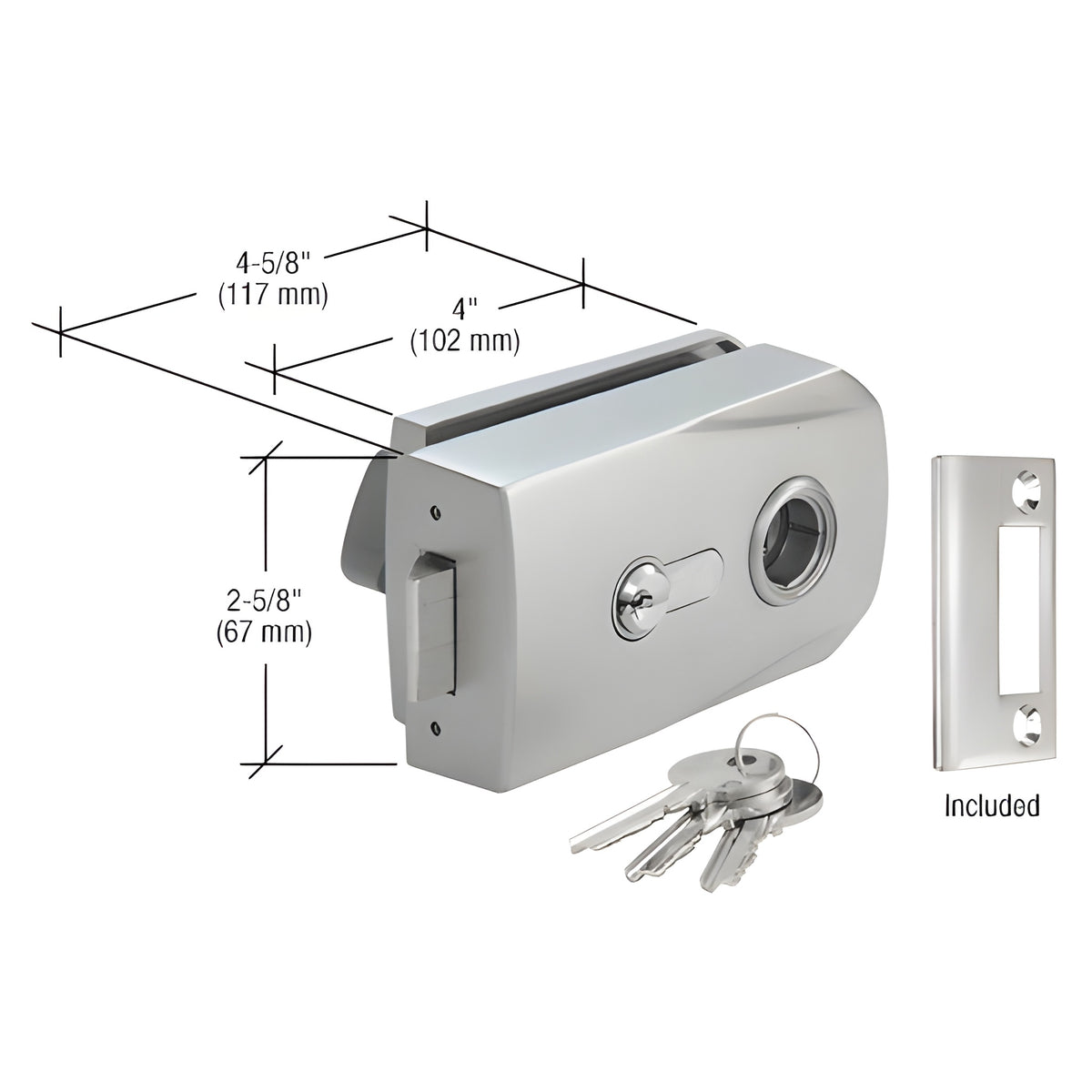

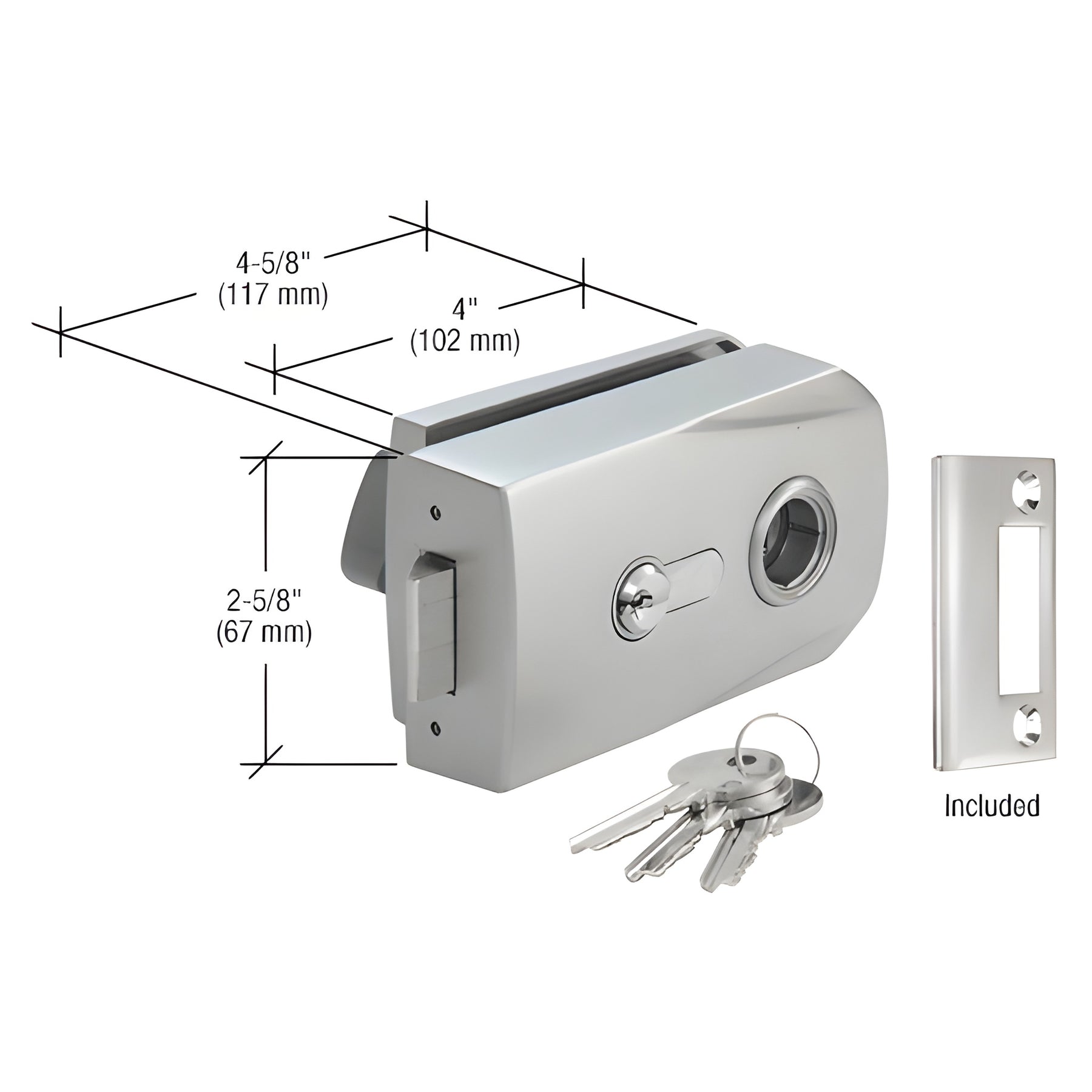

CRL Brushed Stainless Glass-Mount Lever Lock for Metal Frame Doors
CRL Brushed Stainless Glass-Mount Lever Lock for Metal Frame Doors
Regular price
$322.50 CAD
Regular price
Sale price
$322.50 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PTH310BS
Shipping Weight: 3.2 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 3.2 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Stainless Steel
Glass Mounting Holes Diameter
1-3/4 in. (44 mm)
Glazing Thickness
3/8 in. or 1/2 in. (10 mm or 12 mm)
Height
2-5/8 in. (67 mm)
Length
4-5/8 in. (117 mm)
Series
Slimline
Overview
- Works on single-acting doors
- Fits 3/8" or 1/2" (10 or 12 mm) tempered glass doors
- Slimline design for frameless glass applications
- Use monolithic tempered glass
The CRL Glass Mounted Latch (SKU: PTH310BS) secures a door when closed into a frame—ideal as a glass-mounted latch for frameless and semi-frameless shower and interior glass doors.
NOTE: Handle is sold separately.
GLASS FABRICATION REQUIRED:
Two 1-3/4" (44.5 mm) holes
COMES WITH:
EC3 and EC4 Series Cylinder/Thumbturn with 3 keys each, template, and instructions.
Stainless Steel Advisory:
Although stainless steel is corrosion-resistant, it is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for details.
Order the PTH310BS glass-mounted latch today to secure your 3/8" or 1/2" tempered glass door—contact CRL for lead time and installation guidance.
