CRL Polished Stainless Steel Glass-Mount Lever Lock for Metal Doors
Item# PTH310PS
Shipping Weight: 3.11 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 3.11 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Finish/Color
Polished Stainless Steel
Glass Mounting Holes Diameter
1-3/4 in. (44 mm)
Glazing Thickness
3/8 in. or 1/2 in. (10 mm or 12 mm)
Height
2-5/8 in. (67 mm)
Length
4-5/8 in. (117 mm)
Series
Slimline
- Works on single-acting doors
- Fits 3/8" or 1/2" (10 or 12 mm) tempered glass doors
- Slimline glass-mounted latch design
- For use with monolithic tempered glass

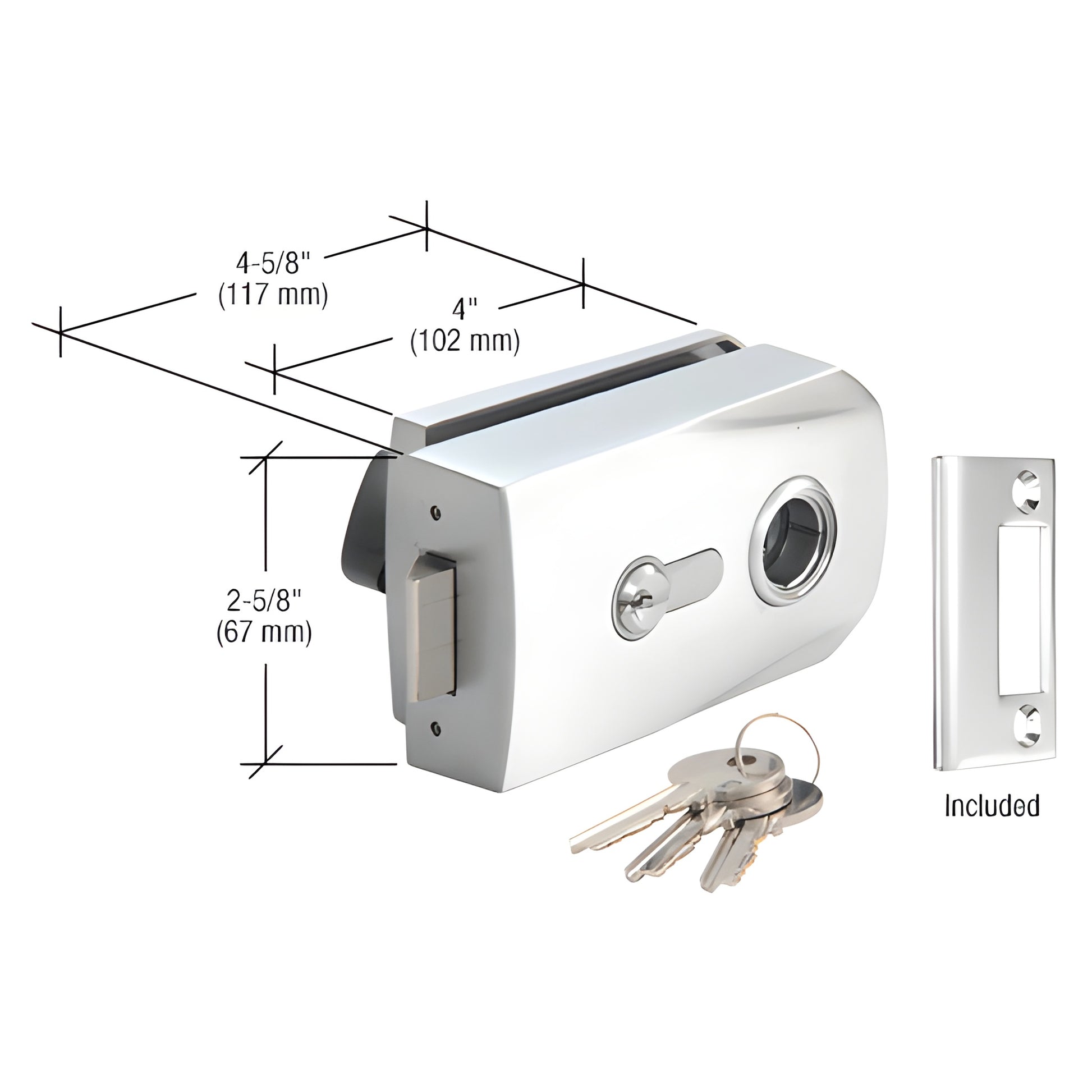

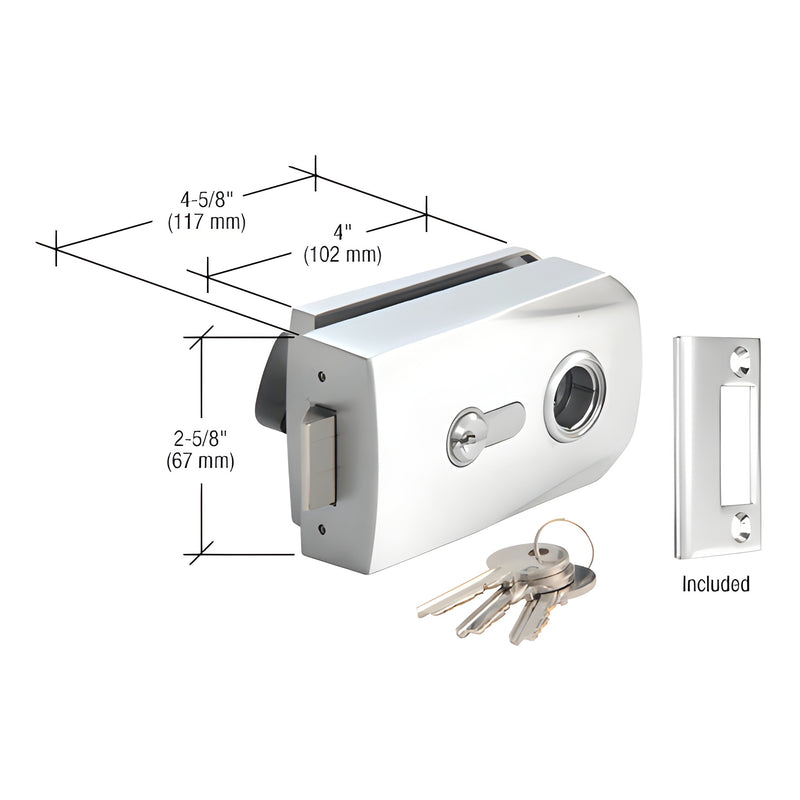

The CRL Glass Mounted Latch (SKU: PTH310PS) secures doors that close into a frame and is engineered for glass door installations requiring two 1-3/4" (44.5 mm) holes in the glass.
NOTE: Handle sold separately.
Glass fabrication required:
Two 1-3/4" (44.5 mm) holes
Comes with:
EC3 and EC4 Series cylinder/thumbturn with 3 keys each, template, and instructions.
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, please contact CRL Customer Service before ordering. Product images are actual or close representations; colors may vary by monitor.
Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Ideal for frameless glass entry and interior glass door projects where a low-profile, secure latch is required. Order SKU PTH310PS or contact us for installation guidance.
