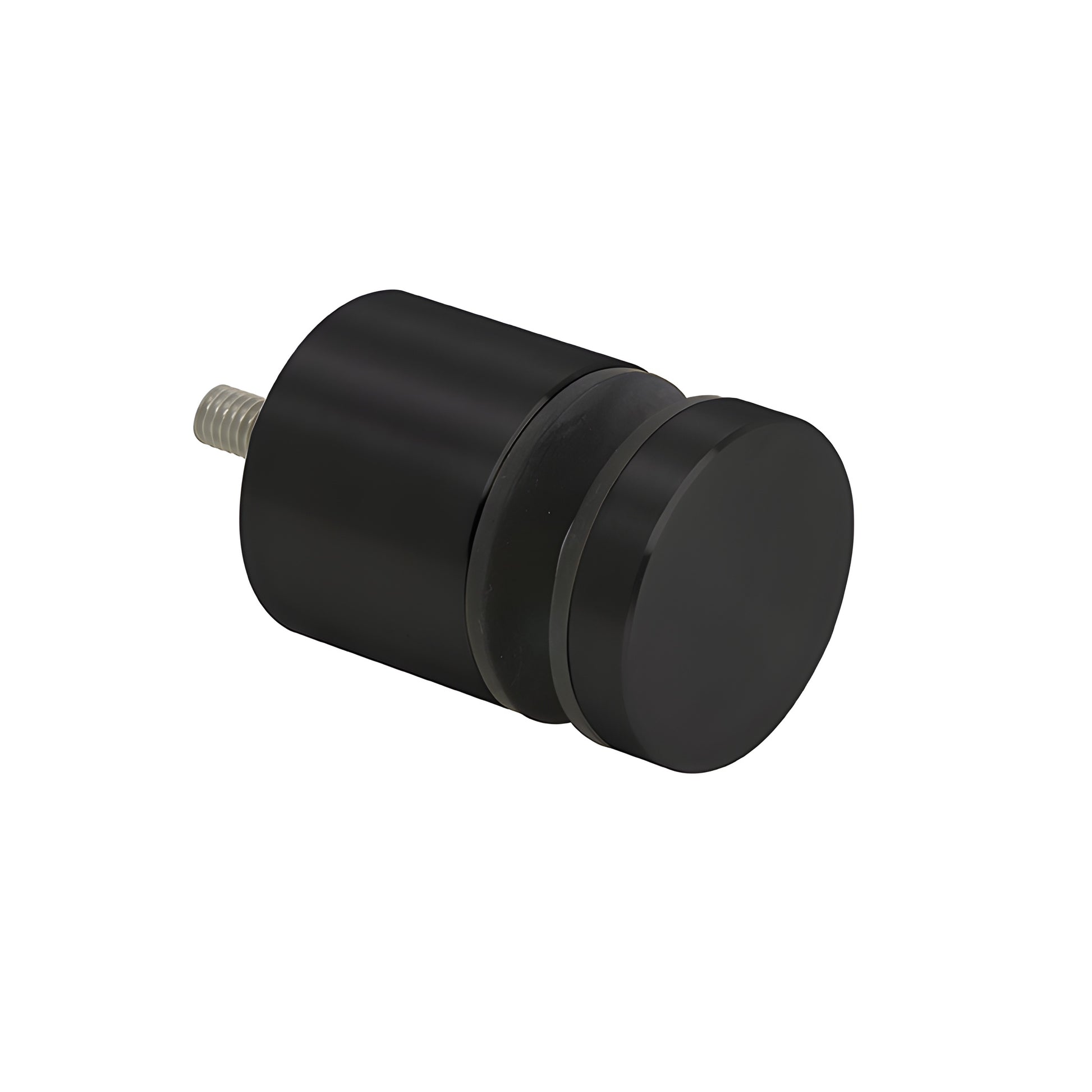

CRL Matte Black Glass Rail Standoff Base & Cap - 1.75in Projection

• Compact 2" (51 mm) glass rail standoff design with base, cap, and mounting stud — ideal for handrails and guardrails
• Compatible with 1/2" and 3/4" (12 and 19 mm) monolithic tempered glass or 9/16" and 27/32" (13.52 and 21.52 mm) laminated tempered glass using Kuraray SentryGlas® interlayer
• Fabricated from high-grade Alloy 316 stainless steel (brushed or polished finish) for corrosion resistance in interior and exterior applications
• Includes 3/8"-16 x 2" Allen stud for secure mounting to steel; can be mounted to steel, concrete, or wood substrates

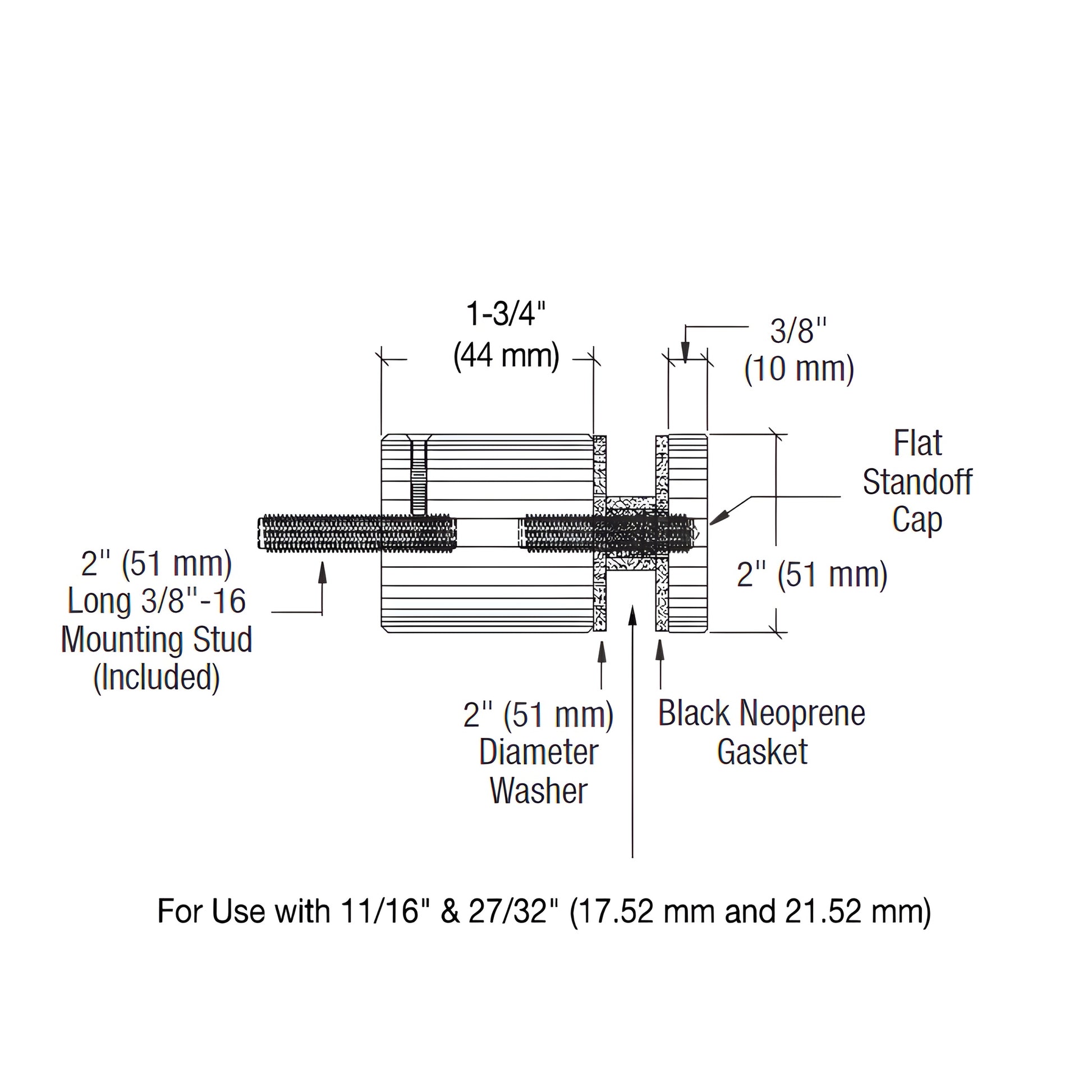

These heavy-duty CRL Glass Rail Standoff Base and Caps accept a 3/4" (19 mm) diameter hole in the glass and include gaskets and grommet for proper glazing. The standoff fitting measures 2" (51 mm) diameter with a 1-3/4" (44.5 mm) base and ships with a 3/8"-16 x 2" Allen stud for steel mounting. Use Cat. No. SSW12 Spanner Wrench to tighten the cap. Alloy 316 stainless steel construction provides durability and weather resistance—an excellent choice for commercial and residential glass railing projects.

SPECIFICATIONS:
For use with 1/2"–27/32" (12–21.52 mm) tempered monolithic or tempered laminated glass (do not use with raw or annealed glass).
Glass fabrication: one 3/4" (19 mm) diameter hole per fitting.
Spacing: maximum spacing depends on application and mounting conditions; minimum hole spacing between standoffs is 4" (102 mm). An Engineering Report is available in Technical Details.

Product Warning:
For use only with 1/2" to 27/32" (12 to 21.52 mm) tempered monolithic or tempered laminated glass. Do not use with raw or annealed glass. Bracket spacing and maximum glass panel widths vary depending on use and mounting conditions.
