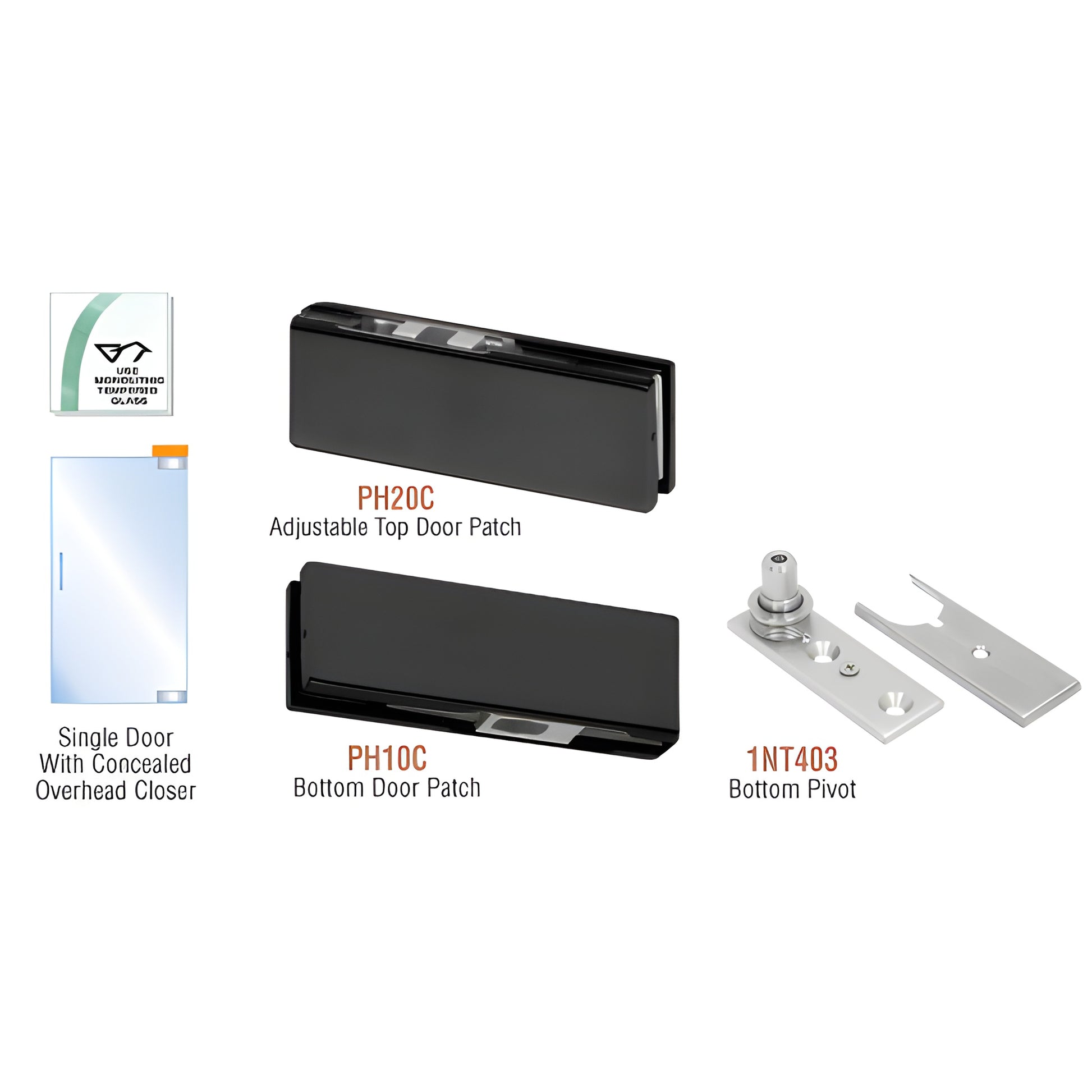

  • PHA2MBL matte black frameless glass door kit: adjustable top patch, bottom patch and silver bottom pivot, for 3/8-1/2" glass
1 2

CRL

CRL Matte Black Patch Door Kit for Overhead Closer - No Lock

CRL Matte Black Patch Door Kit for Overhead Closer - No Lock

$269.84 CAD
$269.84 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PHA2MBL
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Configuration
Single
Door Type
A Style Glass Door
Finish/Color
Matte Black
Glazing Thickness
3/8 in. or 1/2 in. (10 mm or 12 mm)
Pivot Setback
2-3/4 in. (69.85 mm)

Overview

  • Adjustable Top Fitting – PH20C adjustable after installation
  • Five architectural finishes for coordinating frameless hardware
  • Designed for monolithic tempered glass (3/8" or 1/2" / 10 or 12 mm; holes and notches required)
  • Door closer not included; overhead closer must be ordered separately

CRL PHA2 North American Patch Door Kits (SKU: PHA2MBL) include the hardware to complete a single frameless glass door (except overhead closer and glass). Pivot setback is 2-3/4" (70 mm). These patch door kits are optimized for commercial and residential frameless tempered glass installations where durable, adjustable fittings and multiple finish options are required.

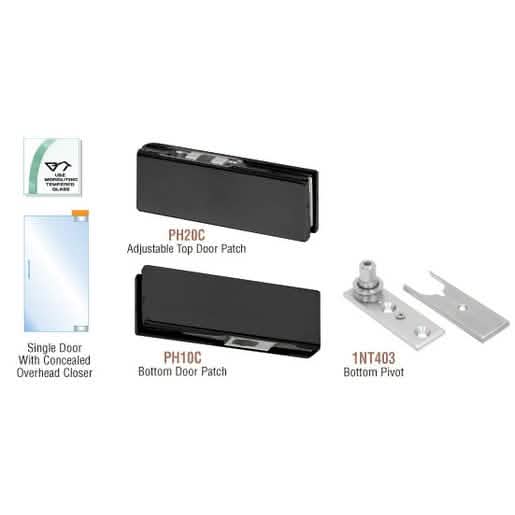

Kit Contains:

  • One - PH20C Adjustable Top Door Patch
  • One - PH10C Bottom Door Patch
  • One - 1NT403 Bottom Pivot
  • Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (holes and notches required in the glass)

Kits with lock option also include one Cat. No. AMR205 patch lock. Cylinders, thumbturns, and keepers are ordered separately.

Note: For maximum door sizes when using this product, CRL follows GANA Guidelines.

Most shipping weights are approximate. If you need exact weight for shipping cost calculations, contact CRL Customer Service before ordering. Product images are representative; actual colors may vary by monitor.

Order the CRL PHA2 North American Patch Door Kit (SKU: PHA2MBL) today to complete your frameless tempered glass door installation.
