CRL Polished Stainless Patch Kit for Overhead Door Closer - No Lock
CRL Polished Stainless Patch Kit for Overhead Door Closer - No Lock
Regular price
$268.40 CAD
Regular price
Sale price
$268.40 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PHA2PS
Shipping Weight: 1.78 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.78 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Configuration
Single
Door Type
A Style Glass Door
Finish/Color
Polished Stainless Steel
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback
2-3/4
Overview
- Adjustable Top Fitting (PH20C)
- Five architectural finishes available
- Door closer not included — overhead closer sold separately
- Use monolithic tempered glass (3/8" or 1/2" (10 or 12 mm); holes and notches required)
CRL PHA2 North American Patch Door Kits (SKU: PHA2PS) include all hardware to complete a single pivot door except the overhead closer and the glass. Pivot setback is 2-3/4" (70 mm). The Top Patch Fitting (Cat. No. PH20C) is adjustable after installation for on-site alignment. Overhead door closer must be ordered separately.

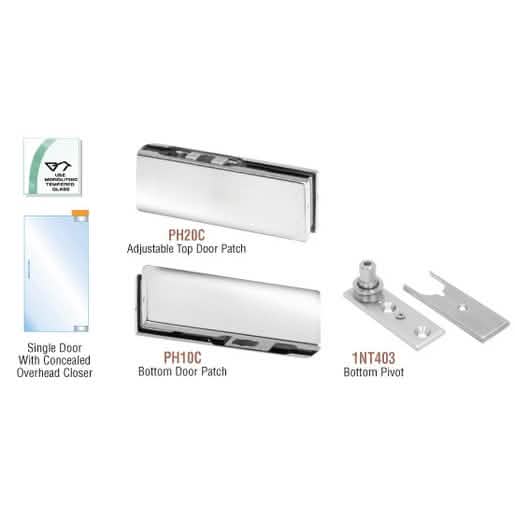

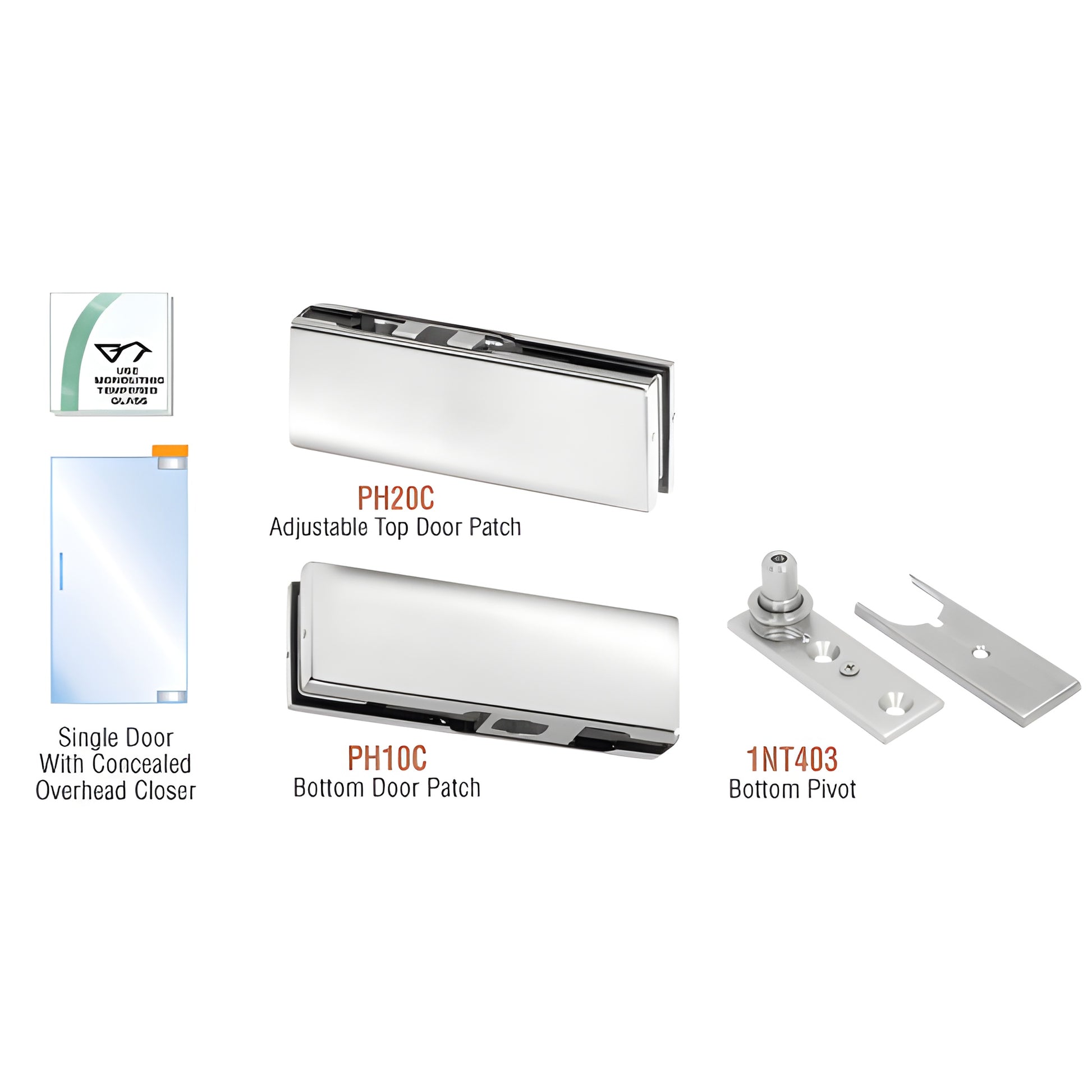

Kit Contains:
- One - PH20C Adjustable Top Door Patch
- One - PH10C Bottom Door Patch
- One - 1NT403 Bottom Pivot
- Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (holes and notches required)
NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.
Stainless Steel Advisory:
Although stainless steel resists corrosion, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References for details.
Shop CRL PHA2 North American Patch Door Kits for durable, adjustable patch hardware designed for monolithic tempered glass pivot doors. Order now or contact customer service for assistance.
