CRL Satin Anodized Patch Door Kit for Overhead Door Closer - No Lock
Item# PHA2A
Shipping Weight: 4.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 4.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Configuration
Single
Door Type
A Style Glass Door
Finish/Color
Satin Anodized
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback
2-3/4
- Adjustable Top Fitting (adjustable after installation)
- Five architectural finishes for design flexibility
- Designed for use with monolithic tempered glass (holes and notches required)
- Door closer not included — overhead closer must be ordered separately
CRL PHA2 North American Patch Door Kits (SKU: PHA2A) include the hardware needed to complete a single frameless glass door installation (glass and overhead closer sold separately). Pivot setback: 2-3/4" (70 mm). The adjustable Top Patch Fitting (Cat. No. PH20C) allows post-installation alignment — a key advantage for on-site adjustments and tight tolerances.

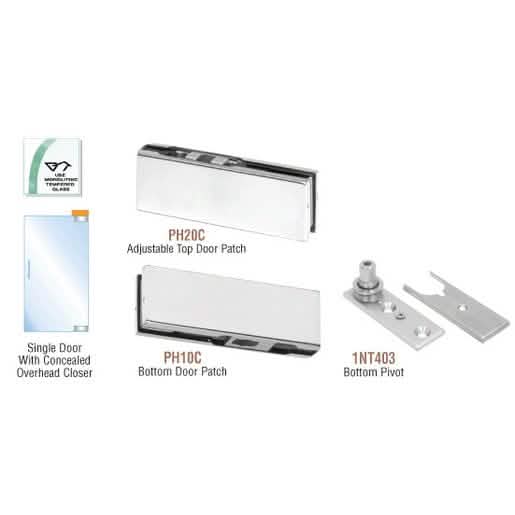

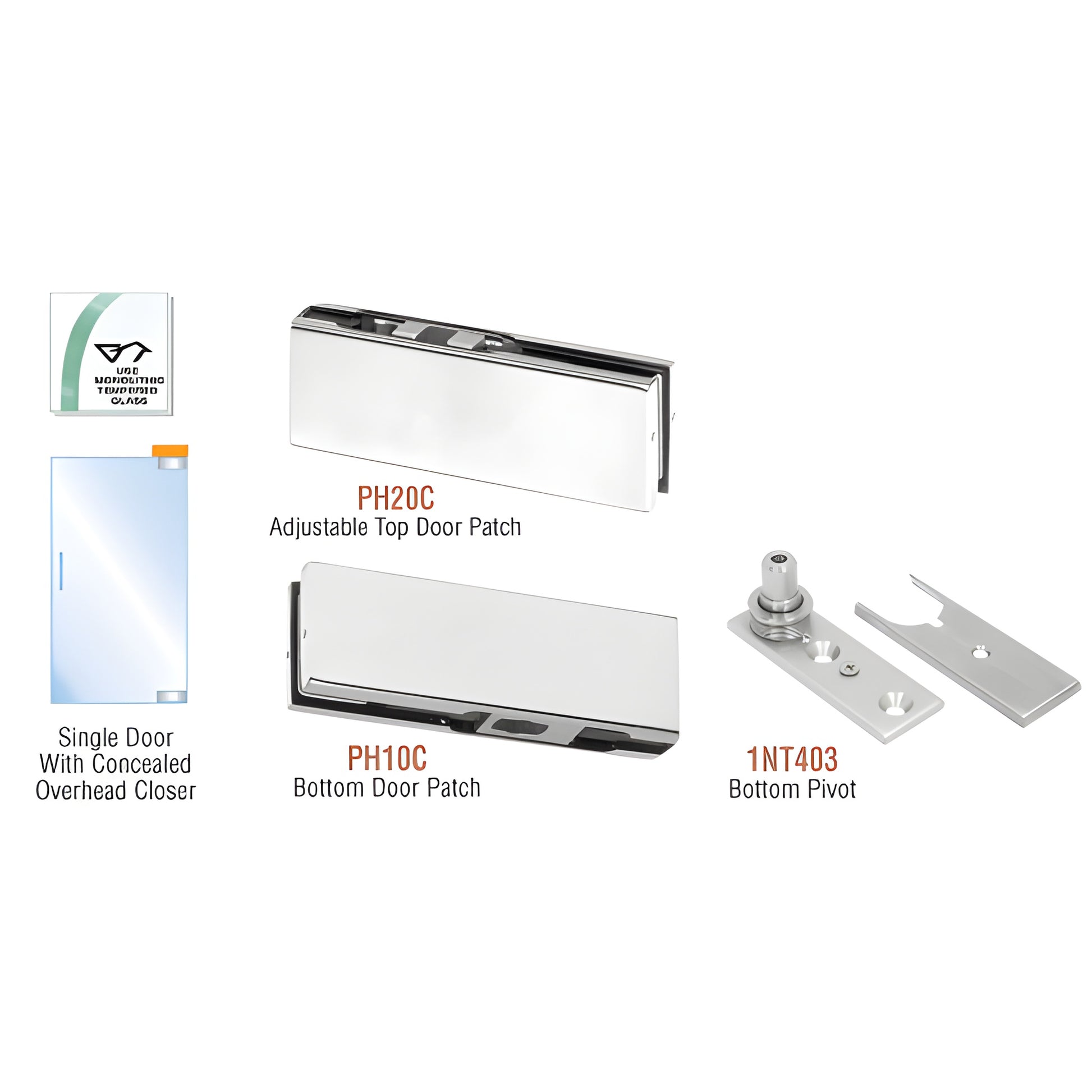

Kit Contains:
- One – PH20C Adjustable Top Door Patch
- One – PH10C Bottom Door Patch
- One – 1NT403 Bottom Pivot
- Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass
Kits with lock include one Cat. No. AMR205 patch lock; cylinders, thumbturns, and keepers are ordered separately.
Compliance & Notes: For maximum door sizes, CRL follows GANA Guidelines. Use monolithic tempered glass with required holes and notches. Product images are representative; colors may vary by monitor. Shipping weights are approximate — contact CRL Customer Service for exact shipping weight if needed.
Optimize your frameless glass door project with the PHA2A patch door kit — order now or contact CRL for pricing and lead times.
