CRL Matte Black Patch Kit for Frameless Glass Doors w/ Lock
Item# PHA1LMBL
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Configuration
Single
Door Type
F Style Glass Door
Finish/Color
Matte Black
Glazing Thickness
3/8 in. or 1/2 in. (10 mm or 12 mm)
Pivot Setback
2-3/4 in. (69.85 mm)
- Fits 3/8" or 1/2" (10 or 12 mm) tempered monolithic glass
- Available with or without locks (patch lock Cat. No. AMR205 included in lock kits; cylinders, thumbturns, and keepers sold separately)
- Designed for single free‑swinging frameless glass doors; pivot setback 2-3/4" (70 mm)
CRL PHA1 North American Patch Door Kits (SKU: PHA1LMBL) include the hardware needed to complete a single free‑swinging door (glass not included). Compatible with floor closers that use tapered spindles (floor closers ordered separately).

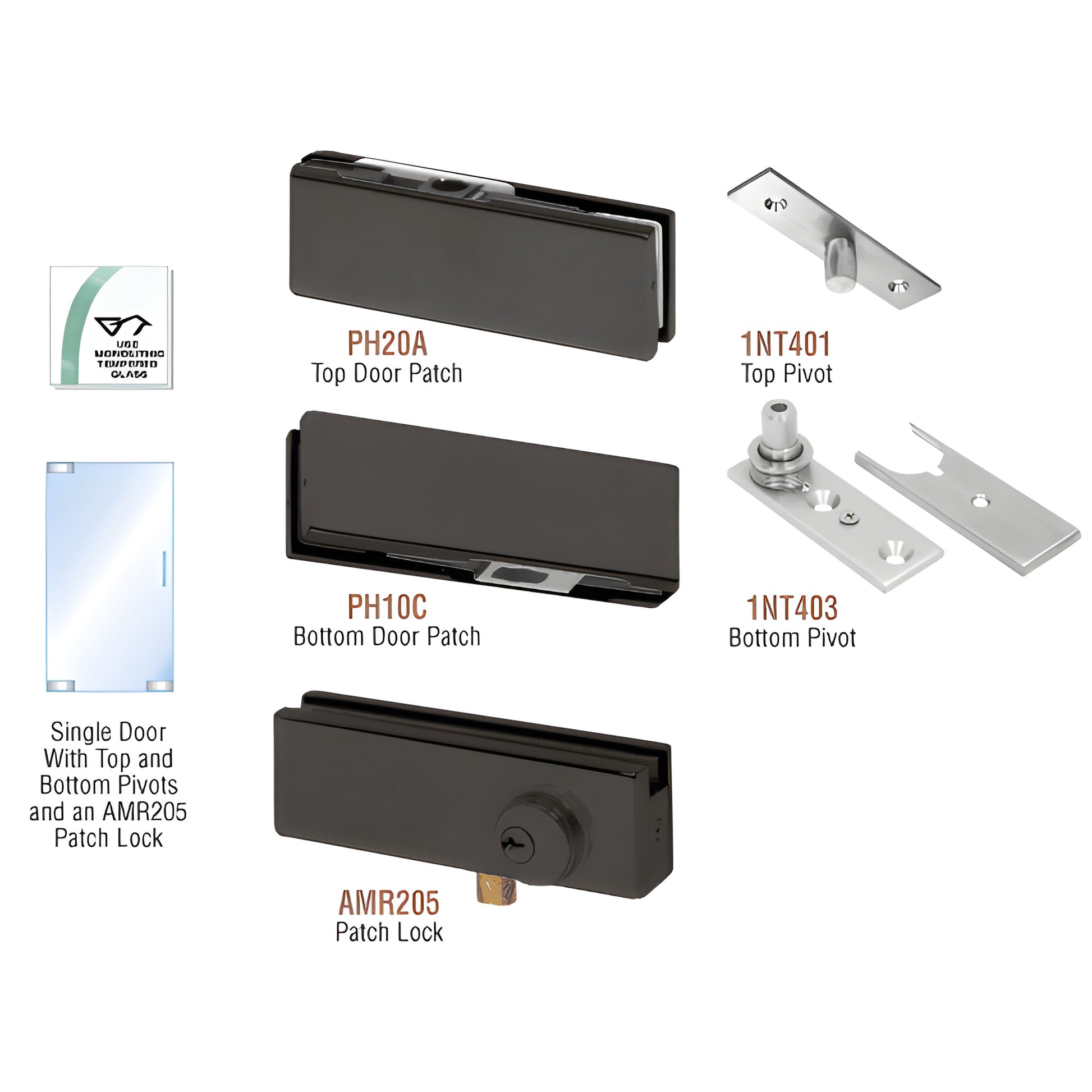

Kit Contains:
- 1 × PH20A Top Door Patch
- 1 × PH10C Bottom Door Patch
- 1 × 1NT401 Top Pivot
- 1 × 1NT403 Bottom Pivot
- Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass — glass must include required holes and notches
Note: For maximum door sizes when using this product, CRL follows GANA Guidelines.
Most shipping weights are approximate. If you need exact weight to determine shipping costs before ordering, contact CRL Customer Service. Product images are actual or close representations; colors may vary by monitor.
Ideal for frameless commercial and residential tempered glass doors requiring reliable patch door hardware. Order the PHA1LMBL kit or contact us for bulk pricing and compatibility guidance.
