CRL Polished Stainless Patch Door Kit with Lock - Frameless Glass
CRL Polished Stainless Patch Door Kit with Lock - Frameless Glass
Regular price
$376.92 CAD
Regular price
Sale price
$376.92 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PHA1LPS
Shipping Weight: 4.78 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 4.78 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Configuration
Single
Door Type
F Style Glass Door
Finish/Color
Polished Stainless Steel
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback
2-3/4
Overview
- For 3/8" or 1/2" (10 or 12 mm) Glass
- Available With or Without Locks
- Use Monolithic Tempered Glass (holes and notches required)
CRL PHA1 North American Patch Door Kits (SKU: PHA1LPS) include all hardware needed to complete a single free-swinging frameless glass door except the glass. Pivot setback is 2-3/4" (70 mm). Compatible with floor closers that use tapered spindles (floor closers ordered separately). These patch door kits are ideal for commercial frameless glass door installations and other tempered glass door projects seeking durable stainless steel components.

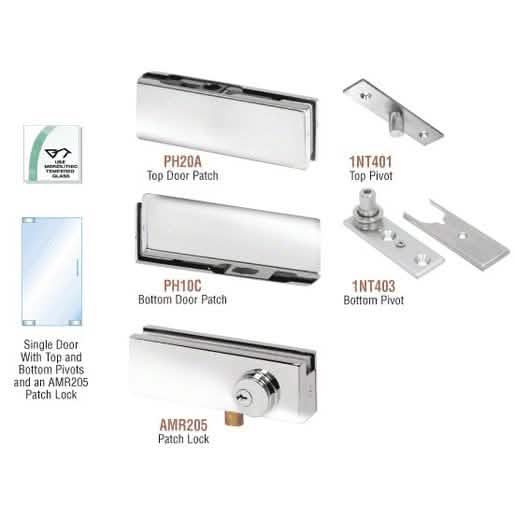

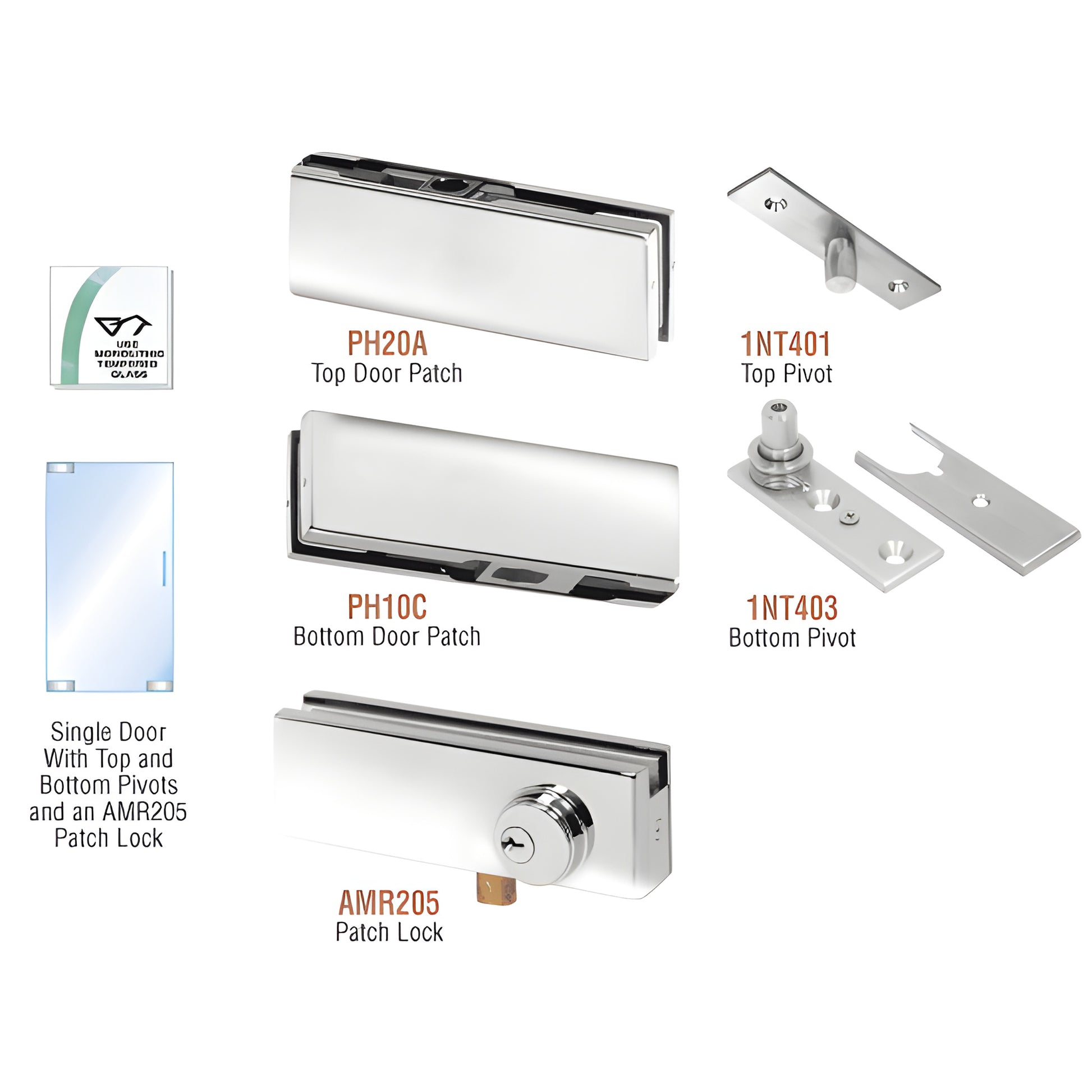

Kit Contains:
- 1 - PH20A Top Door Patch
- 1 - PH10C Bottom Door Patch
- 1 - 1NT401 Top Pivot
- 1 - 1NT403 Bottom Pivot
- Gaskets for 3/8" or 1/2" (10 or 12 mm) Tempered Glass
NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.
Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for details.
Why choose PHA1LPS? Durable stainless steel hardware, compatible with 3/8" or 1/2" monolithic tempered glass, and available with optional locking—designed for reliable commercial frameless glass door installations.
Order the CRL PHA1 Patch Door Kit (SKU: PHA1LPS) now or contact CRL Customer Service for technical assistance.
