CRL Polished Brass North American Glass Door Patch Kit with Lock

CRL Polished Brass North American Glass Door Patch Kit with Lock

$428.32 CAD
$428.32 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PHA1LBR
Shipping Weight: 4.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Configuration
Single
Door Type
F Style Glass Door
Finish/Color
Polished Brass
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback
2-3/4

Overview

  • For 3/8" or 1/2" (10 or 12 mm) Glass
  • Available With or Without Locks
  • Use Monolithic Tempered Glass

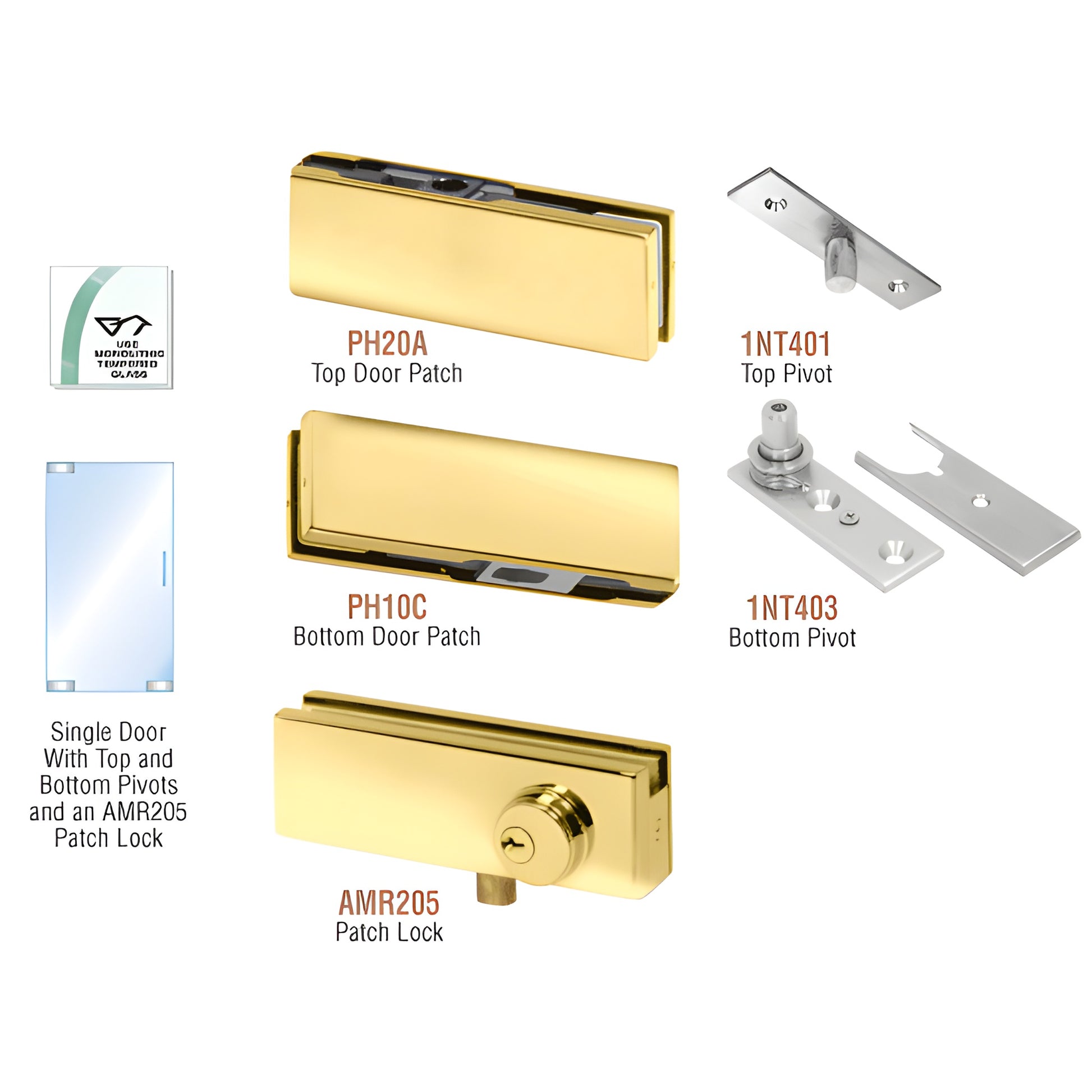

CRL PHA1 North American Patch Door Kits (SKU: PHA1LBR) include the hardware needed to complete a single free-swinging frameless or glass-entry door (glass not included). Pivot setback is 2-3/4" (70 mm). Compatible with floor closers that use tapered spindles (ordered separately). Ideal for commercial and residential applications requiring durable patch door hardware for 3/8" or 1/2" tempered glass. Kit Contains:
  • 1 - PH20A Top Door Patch
  • 1 - PH10C Bottom Door Patch
  • 1 - 1NT401 Top Pivot
  • 1 - 1NT403 Bottom Pivot
  • Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (holes and notches required in the glass)
Kits with lock include one Cat. No. AMR205 patch lock; cylinders, thumbturns, and keepers are ordered separately. NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors can vary depending on your monitor.

Brass Finish Advisory:
Although durable, brass is prone to oxidation and may develop a tarnished appearance over time regardless of initial packaging. For care and maintenance details, view the Brass Finish Disclaimer in the Technical References section.

Order the PHA1LBR patch door kit or contact CRL Customer Service for specifications, shipping weight, or custom options.
