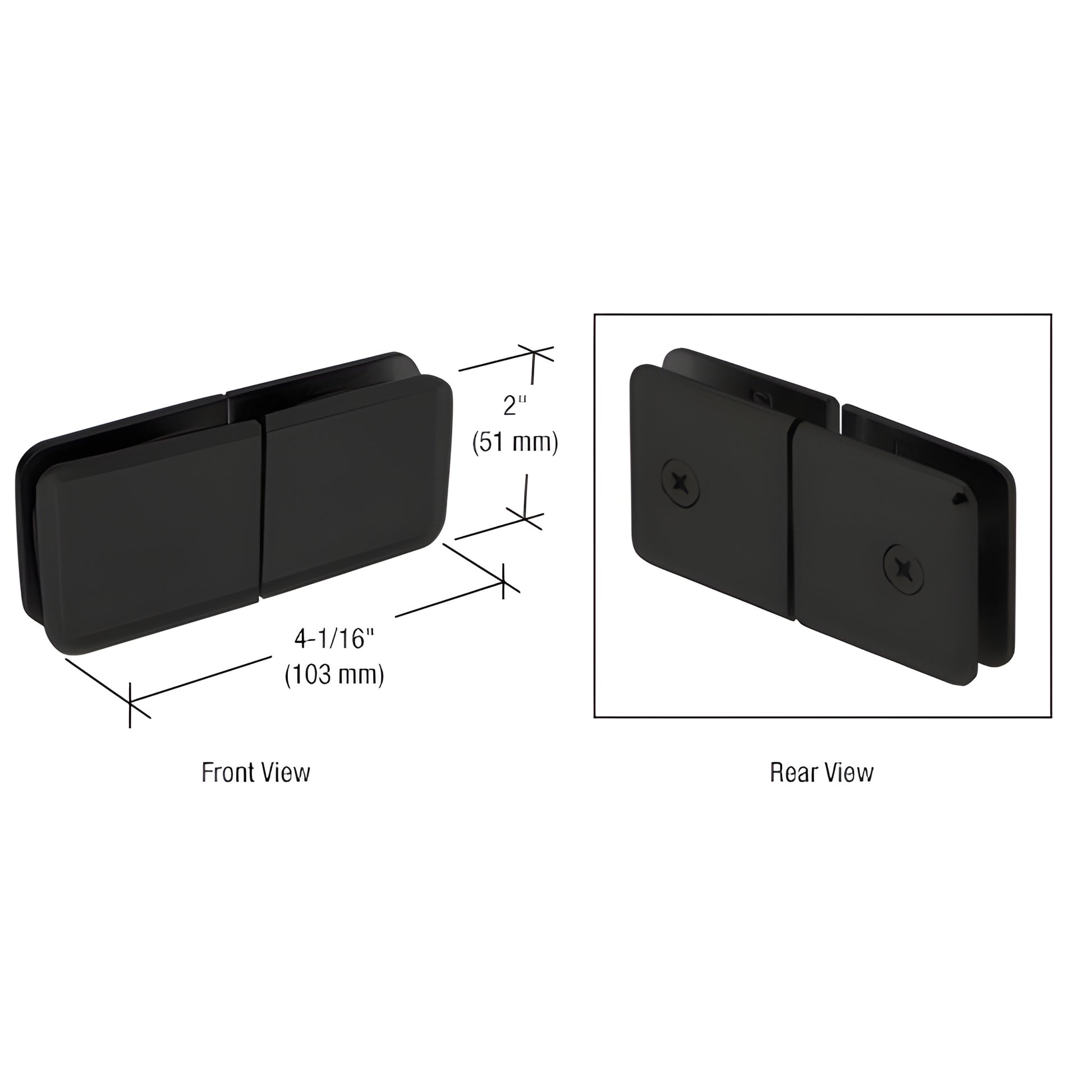

CRL Matte Black 180° Square Glass-to-Glass Adjustable Transom Clamp

• For 3/8" to 1/2" (10 to 12 mm) thick glass
• Glass transom swivels to allow controlled steam release
• Wall mount and 180º models available
• Solid brass construction for corrosion resistance
• Designed for monolithic tempered glass

CRL Beveled 180º Glass-to-Glass Movable Transom Clamps (SKU: BGC188MBL) provide smooth rotation of a movable transom off an inline fixed glass panel. This beveled 180-degree glass-to-glass movable transom clamp is ideal for shower enclosures and glass partition systems where a steam-release swivel and heavy-duty brass hardware are required. Use in combination with Cat. No. BGC186 wall mount movable transom clamp for additional configurations. Clamp must be centered on the transom to achieve balanced movement.

Replacement parts: Cat. Nos. 90295A120 (nylon washer), 211039 (10-32 x 3/4" flat head Phillips screw), 193004 (10-32 nylon lock nut), and BGCU1G (gasket).

NOTE: Maximum transom size is 16" x 30" (406 x 762 mm). Larger transoms require pivot hinges used as transom clamps—call CRL for details.

SPECIFICATIONS:
Materials: Solid brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: BGC180, BGC135, BGC90, and BGC186 require a 3/4" (19 mm) hole; BGC188 requires a 3/4" (19 mm) hole in the fixed panel and a notch in the transom
Includes: Gaskets
