Product Details
- Low Profile Cap Railing that Meets Guard Rail Load Requirements
- Designed for 27/32" (21.52 mm) Laminated Glass (10 x 1.52 x 10 mm Glass Make Up)
- Connects to Fabricated Corners and End Caps
- Cut-to-Size or Custom Fabricated Lengths
- Use Laminated Tempered Glass

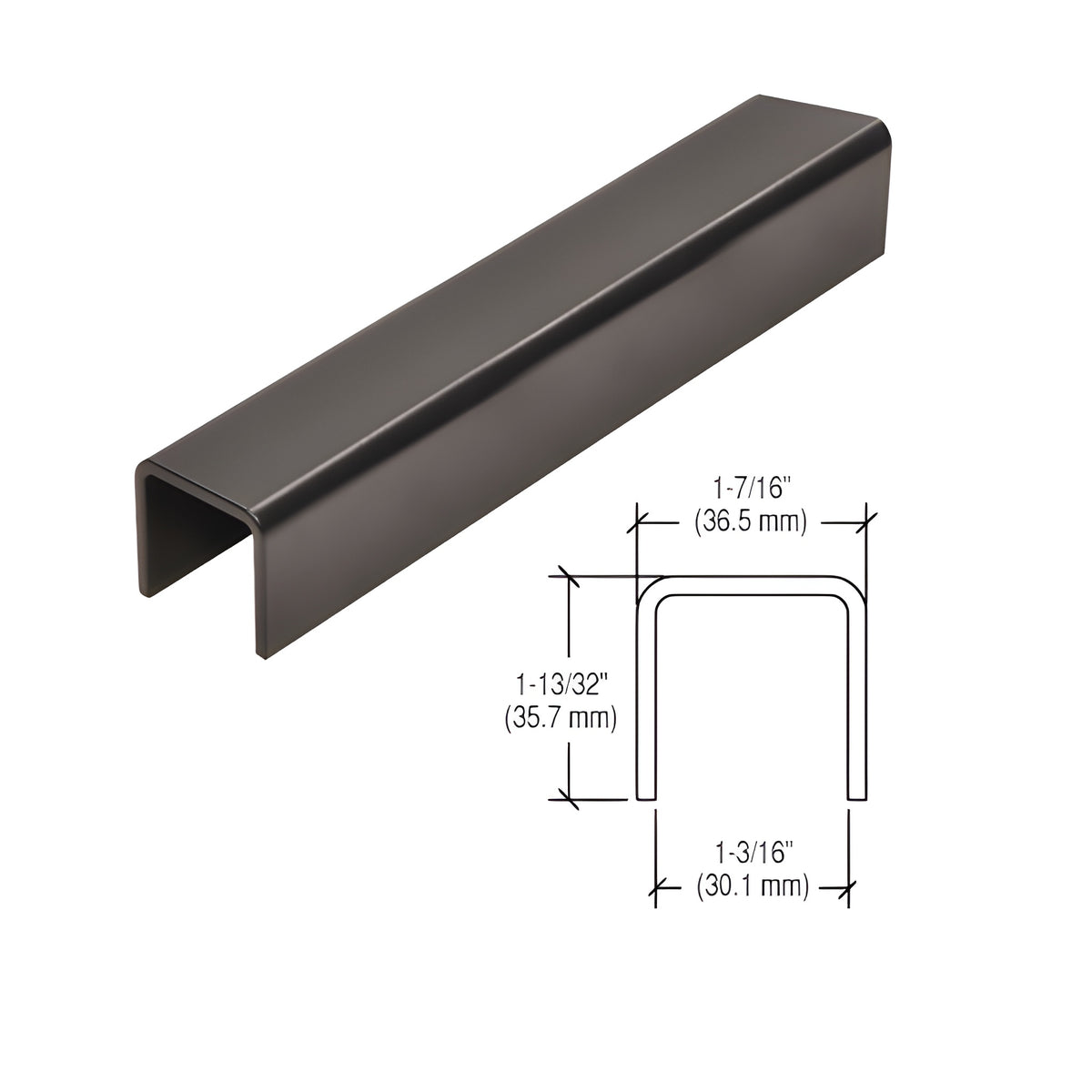

CRL Low Profile U-Channel Cap Railing is designed for guard rail applications and is offered in two architectural finishes. The low profile design allows for a virtually unobstructed view. Use of our LR21PV Cap Railing Rubber Insert and 95CBL Silicone is required to achieve a secure and permanent bond.
SPECIFICATIONS:
Material: 316 Stainless Steel
Thickness: 11 Gauge
Stock Length: 118-1/8" (3 m)
Typical Uses: Protects the Edge of 21.52 mm Laminated Glass and Secures Glass Panels Together in Cap Railing Installations
Product Warning:
SS Channel or bar must ship via Common Carrier only, NO UPS. Cannot be cut-to-size.
