CRL Matte Bronze 6-1/2" x 6-1/2" Square Base Plate
Item# BP6BRZ
Shipping Weight: 1.51
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.51
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
- Finish/Color:Matte Bronze
- Height6-1/2 in. (165 mm)
- MaterialAluminum
- ProfileSquare
- Width6-1/2 in. (165 mm)
- For Use with Our 4" x 4" (102 x 102 mm) Vertical Posts
- Seven Standard Colors, Plus Unfinished Chromate

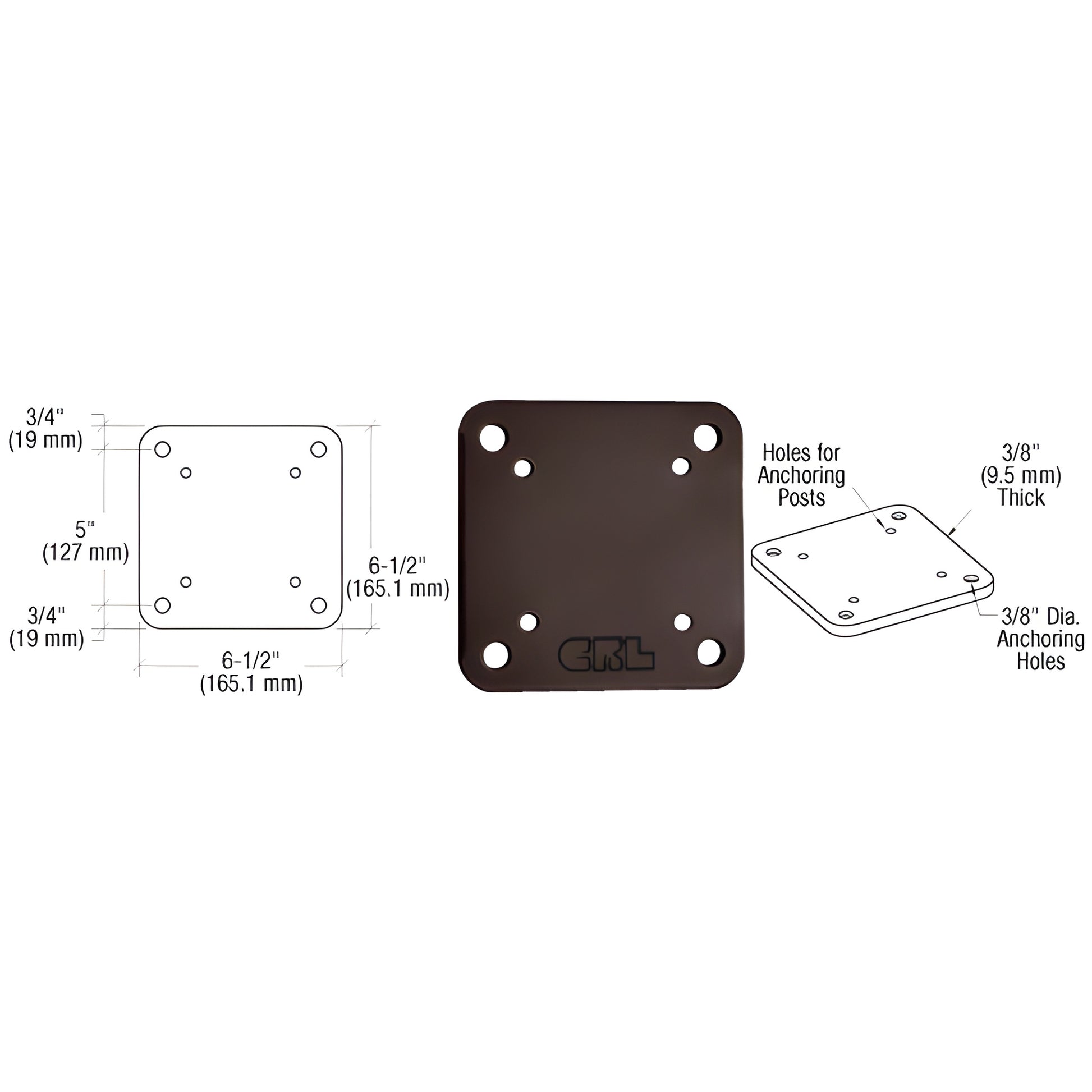

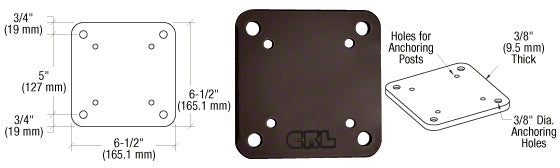

This CRL Square Base Plate screws into our 4" x 4" (102 x 102 mm) Vertical Post raceways, and is countersunk to accept four Cat. No. BPS112 Base Plate Screws. Attach to substrate with Concrete Anchors or Lag Bolts. Use Stainless Steel Washers (WSHR1) and Color Match Bolt Cover Buttons (BTN1) to add a finished look. One each Moisture Barrier Gasket Cat. No. BPG3BL is included with each Base Plate.
Product Warning:
All ARS/AWS products are painted to order and are non-refundable or returnable.
Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
