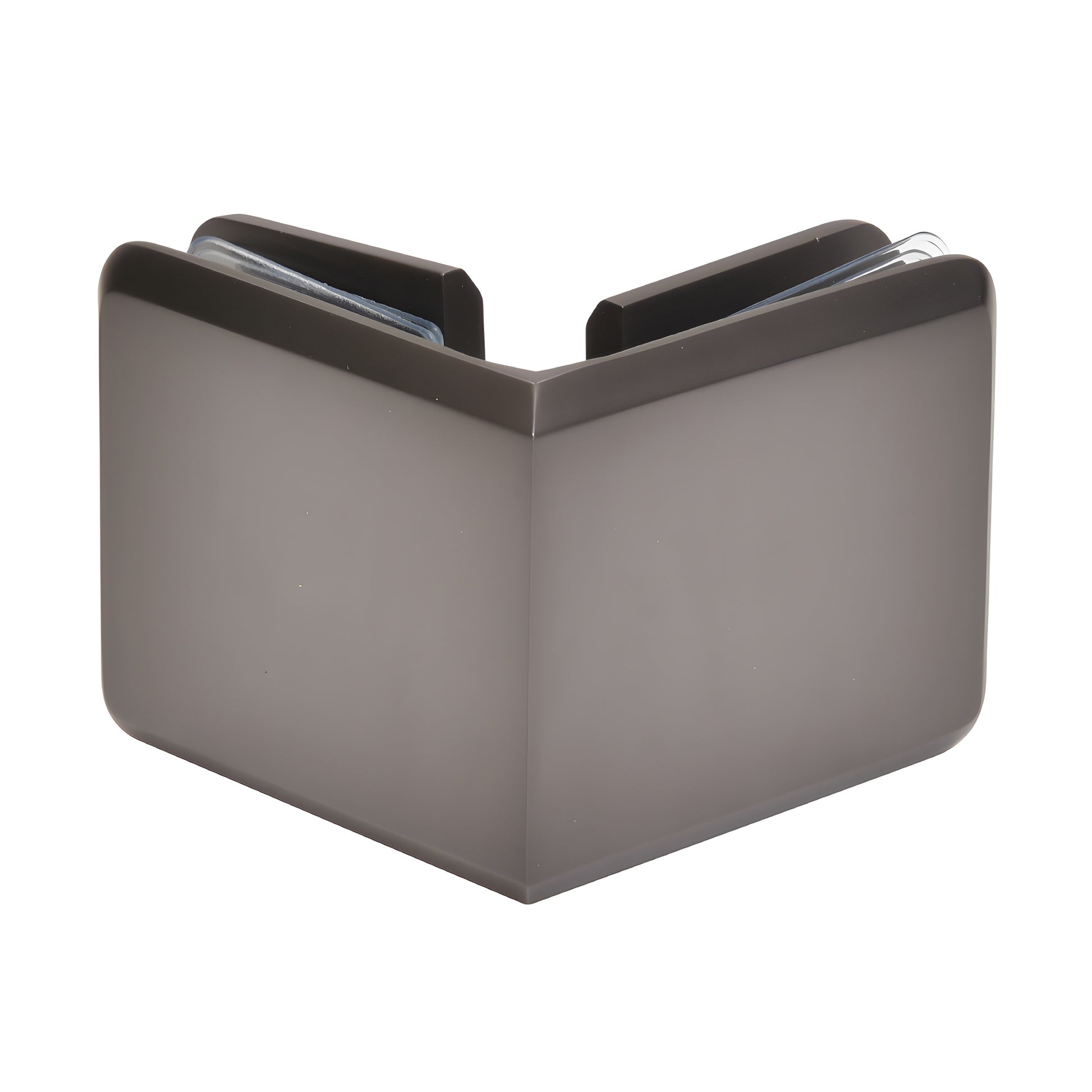

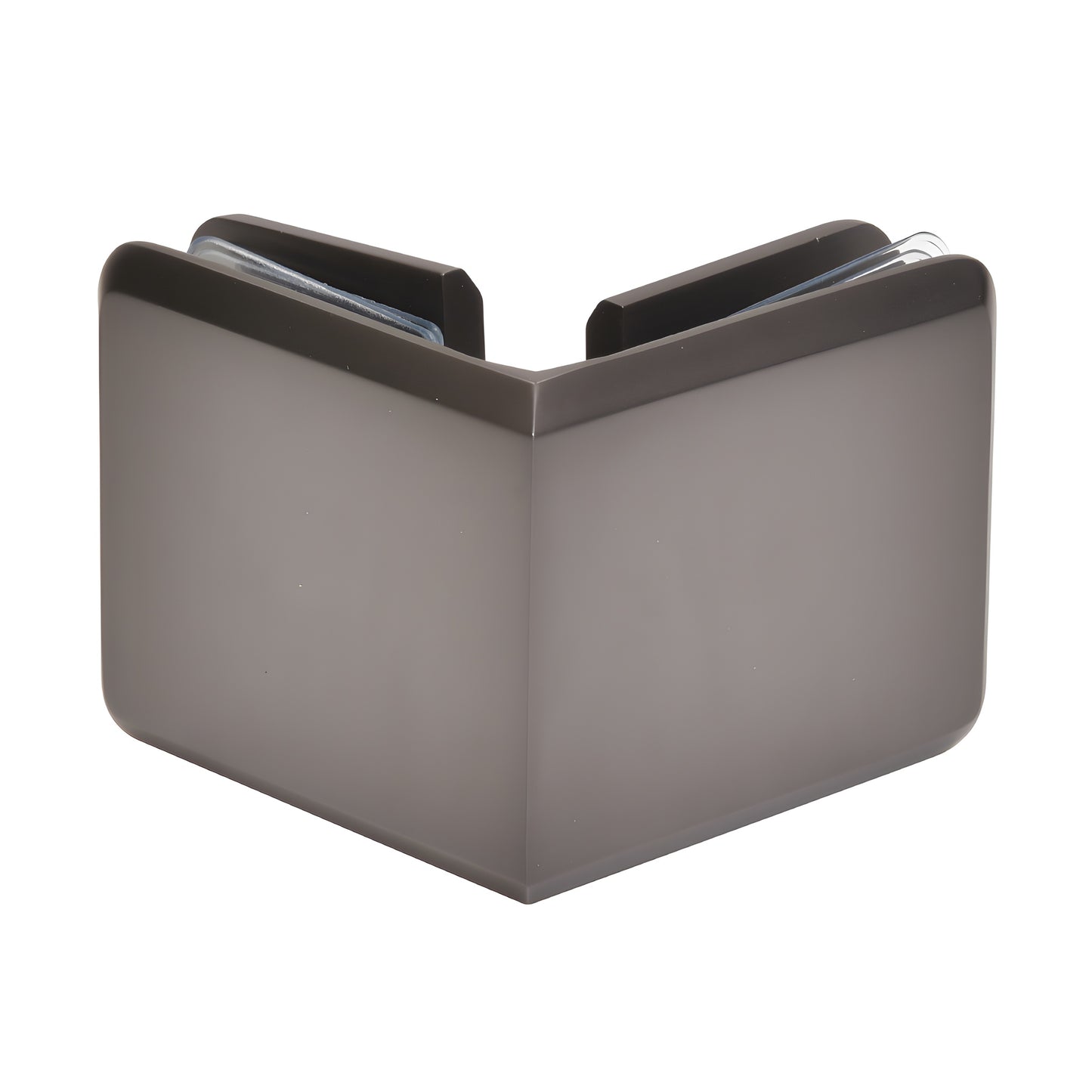

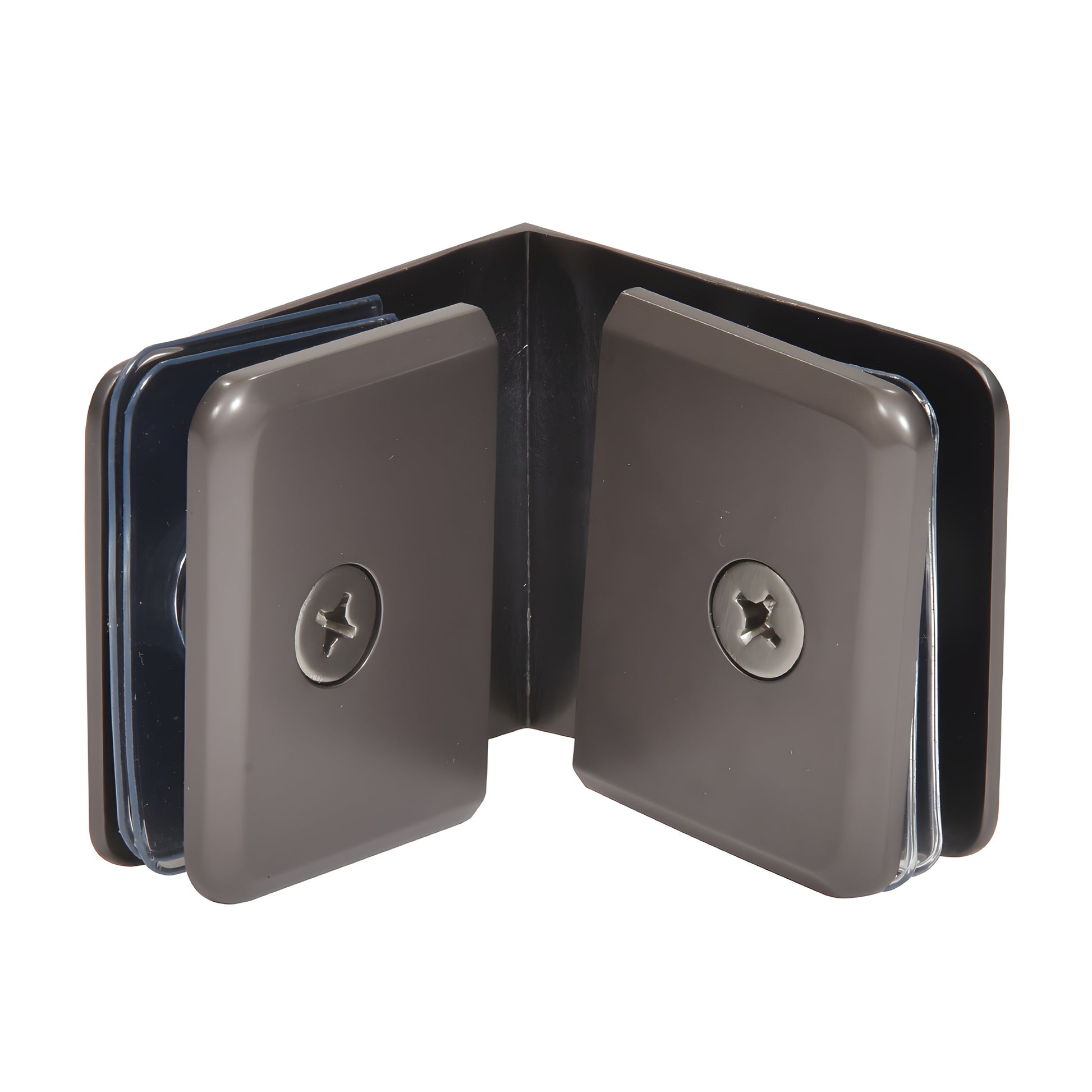

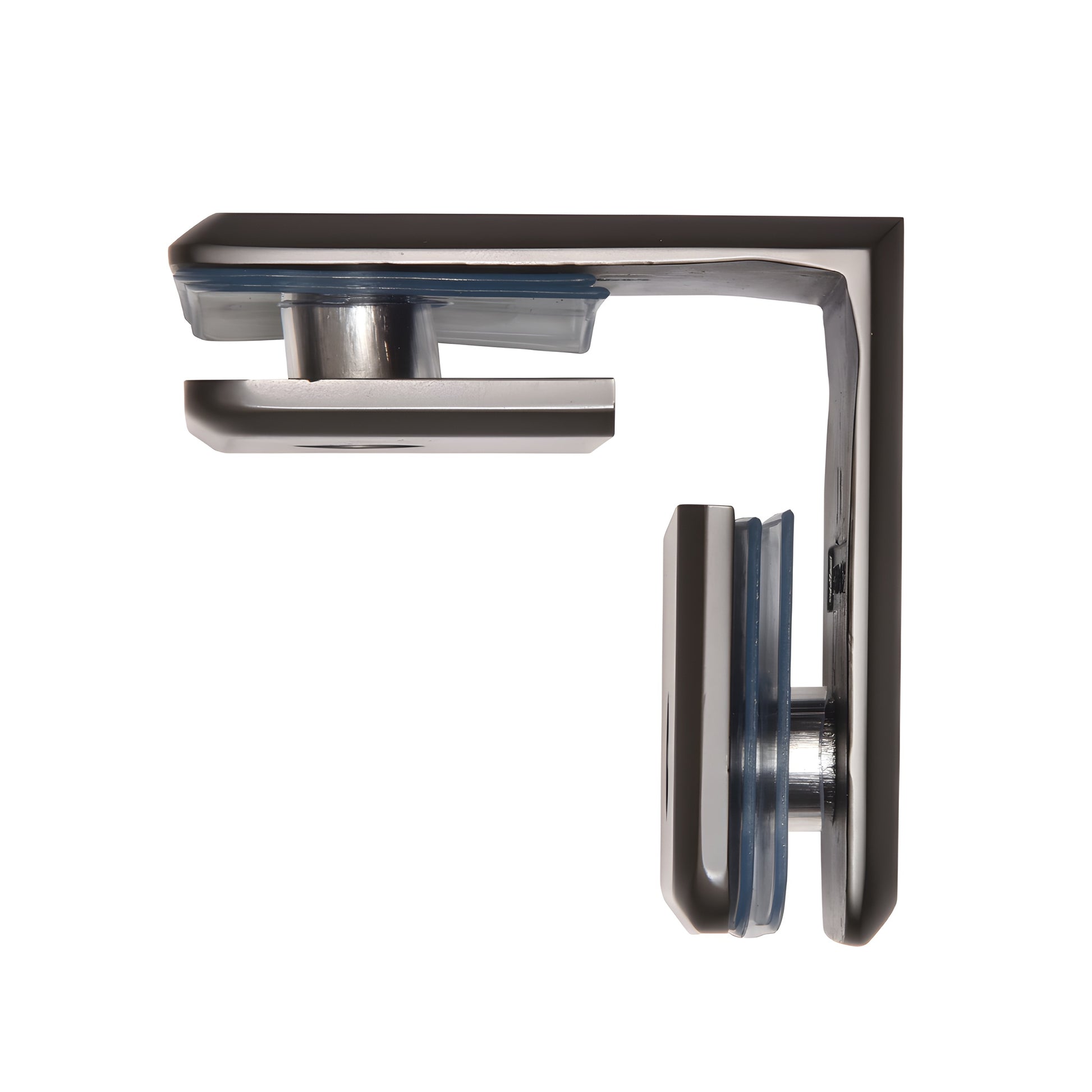

CRL Matte Gun Metal 90Β° Beveled Glass-to-Glass Clamp, Frameless Shower
CRL Matte Gun Metal 90Β° Beveled Glass-to-Glass Clamp, Frameless Shower
Regular price
$75.83 CAD
Regular price
Sale price
$75.83 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# BGC90MGM
Shipping Weight: 15.84 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 15.84 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Matte Gun Metal
Glass To Glass Angle
90
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)
Material
Brass
Mounting Type
Glass To Glass
Overview
- For 3/8" to 1/2" (10 to 12 mm) glass
- Use monolithic tempered glass
- Secures fixed panels for frameless shower enclosures
- Solid brass construction
- Creates an 'all-glass' appearance as an alternative to U-channel
- Glass fabrication required to accommodate clamps
CRL Beveled Style 90ΒΊ Glass-to-Glass Clamp (SKU: BGC90MGM) features attractive beveled edges in solid brass to match hinges with a similar design. Designed to connect two fixed glass panels at a 90ΒΊ angle for frameless shower enclosures and other architectural glass applications.
SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: BGC180, BGC135, BGC90, and BGC186 require 3/4" (19 mm) holes; BGC188 requires a 3/4" (19 mm) hole in the fixed panel and a notch in the transom
Includes: Mounting screws (for wall clamps) and gaskets
Order the BGC90MGM beveled 90ΒΊ glass-to-glass clamp for a cleaner, all-glass lookβadd to cart or contact us for fabrication guidance.
