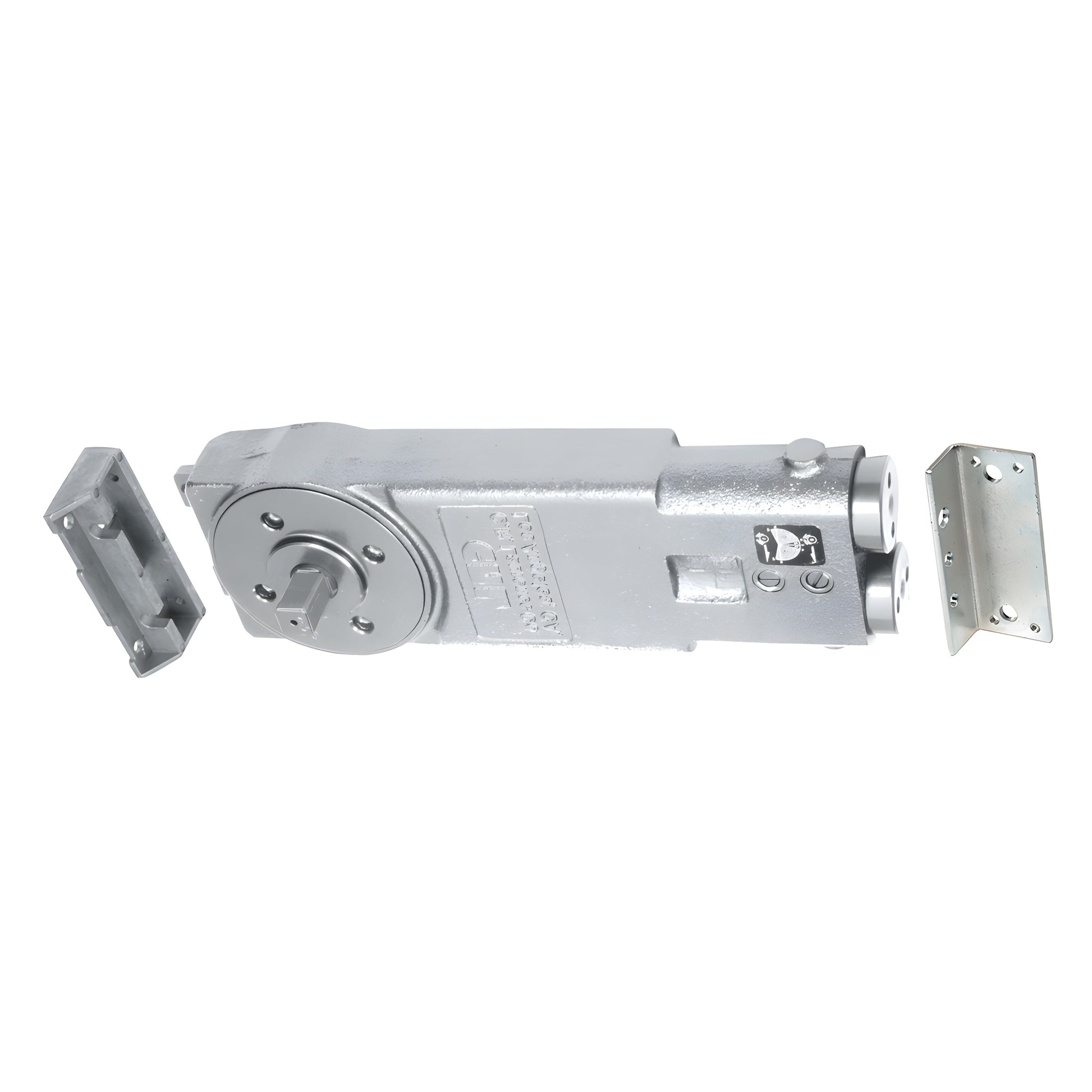

CRL Medium Duty 105º Hold Open 3/4" Long Spindle Overhead Concealed Closer Body With Mounting Clips

Item # CRL9170

$120.21 CAD

Overview

SKUCRL9170
Sold As1 Each
Body Height1-11/16
Body Length11-5/8
Body Width3-11/16
Closer TypeOverhead Concealed
Door Height96
HandingDouble Acting
Hold Open105°
IncludesCRL8010FS
Maximum Door Weight200
Recommended Door TypeAluminum, Hollow Metal
Spindle3/4
Spring Size8.5
UL ListedYes

Description

  • Interchangeable with All Jackson® Style Overhead Concealed Door Closers
  • Extended 3/4" (19 mm) Long Spindle for Use with Patch Fittings and Door Rail Hardware
  • New Adjustable Models
  • UL Listed
  • Conveniently Packaged with Templates and Instructions

This CRL Overhead Concealed Closer for Patch Fittings and Door Rails have a longer spindle approximately 3/4" (19 mm), the preferred length when used in conjunction with Patch Hardware Fittings. The closer has dual action valves for closing operation (one valve for closing, one valve for latching). 90º and 105º Hold Open and No Hold Open models are available. Interchangeable with International, Jackson® and similar brands of Overhead Concealed Closers. Mounting Clips and instructions are included with each Door Closer Body.

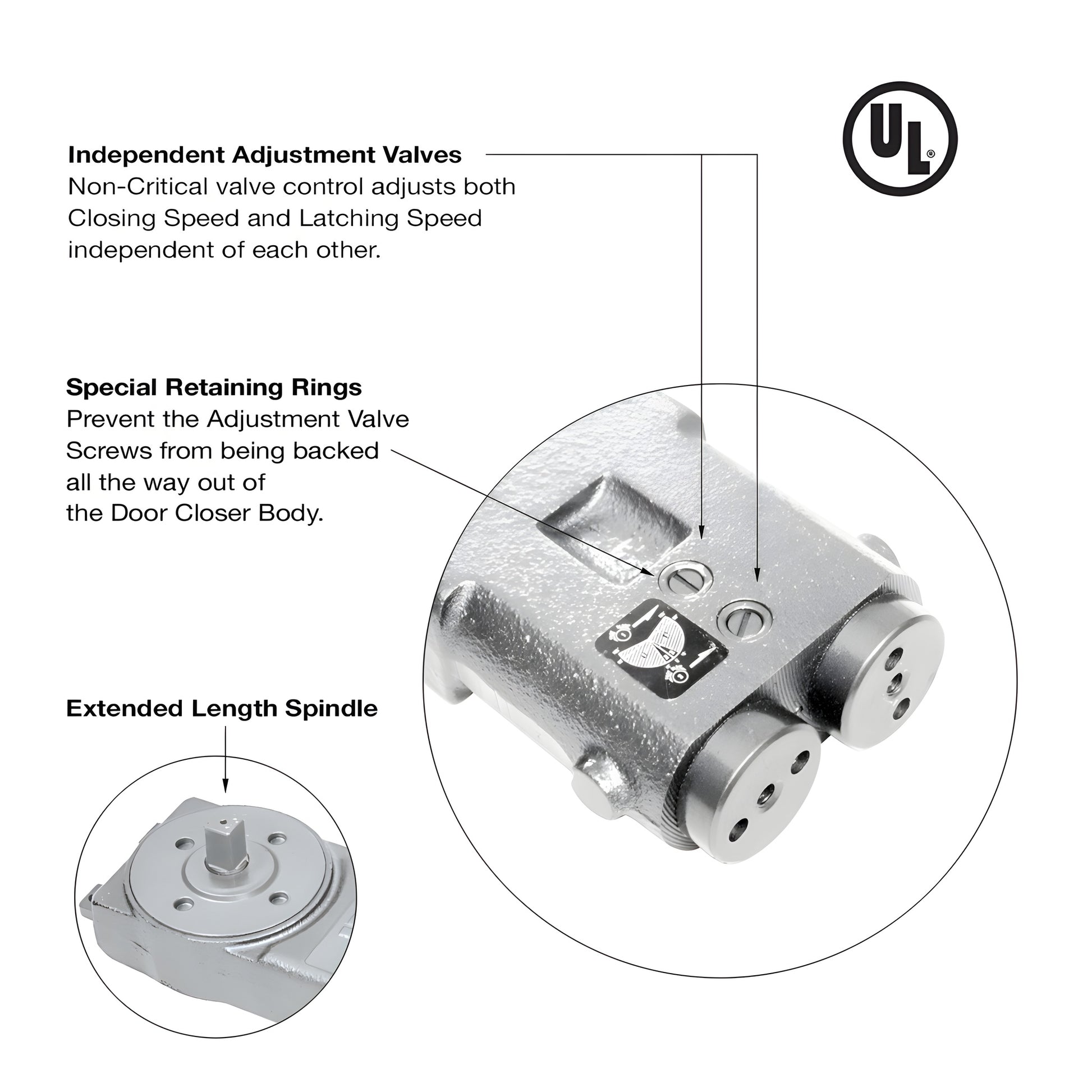

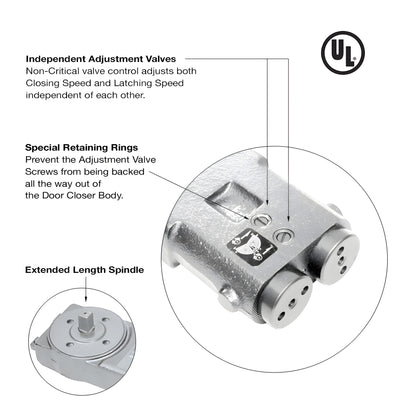

Extended Length Spindle
3/4" (19 mm) Length Spindle for use with Patch Fittings and Door Rail Hardware or when extra reach is needed.

Independent Adjustment Valves
Non-Critical valve control adjusts both Closing Speed and Latching Speed independent of each other.

Special Retaining Rings
Prevent the Adjustment Valve Screws from being backed all the way out of the Door Closer Body.

Weight and Size Limitations
Door Weight: 200 Lbs. (91 kg)
Exterior Door Width: 42" (1.07 m)
Interior Door Width: 48" (1.22 m)
All Doors Height: 96" (2.44 m)
