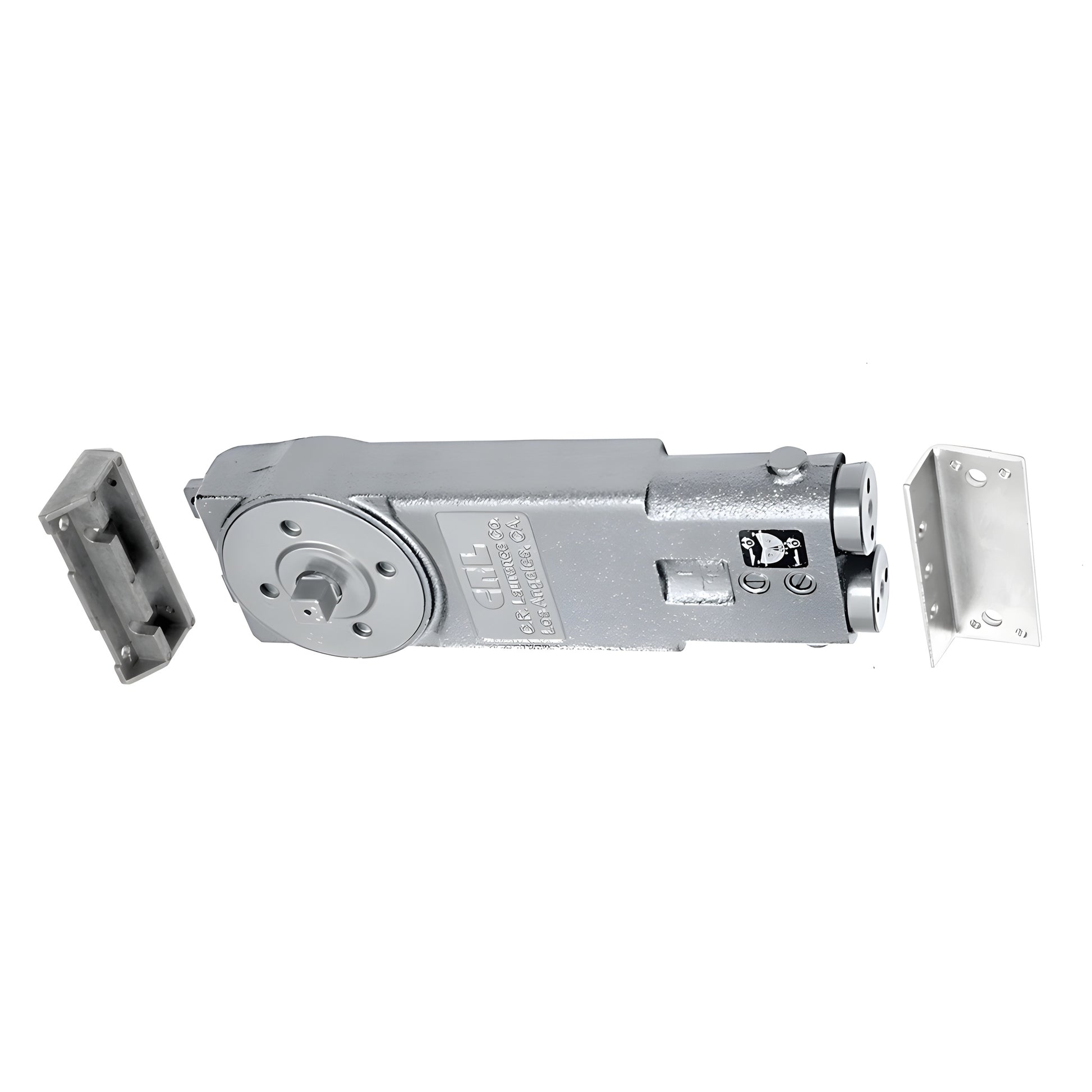

CRL Overhead Concealed Door Closer Body 105° Hold-Open Medium-Duty

• Interchangeable with all Jackson®-style overhead concealed door closers
• 20 models available (SKU: CRL7170)
• Conveniently packaged with mounting clips, templates, and instructions
• 5‑Year Limited Warranty
• UL Listed

Buy a Door Closer Body with Mounting Clips to save on replacement costs and to build a custom overhead concealed door closer with only the accessories you need (pivots, arms, etc.). Each unit ships ready-to-install with mounting clips, templates, and step-by-step instructions for easy retrofit or new installs.

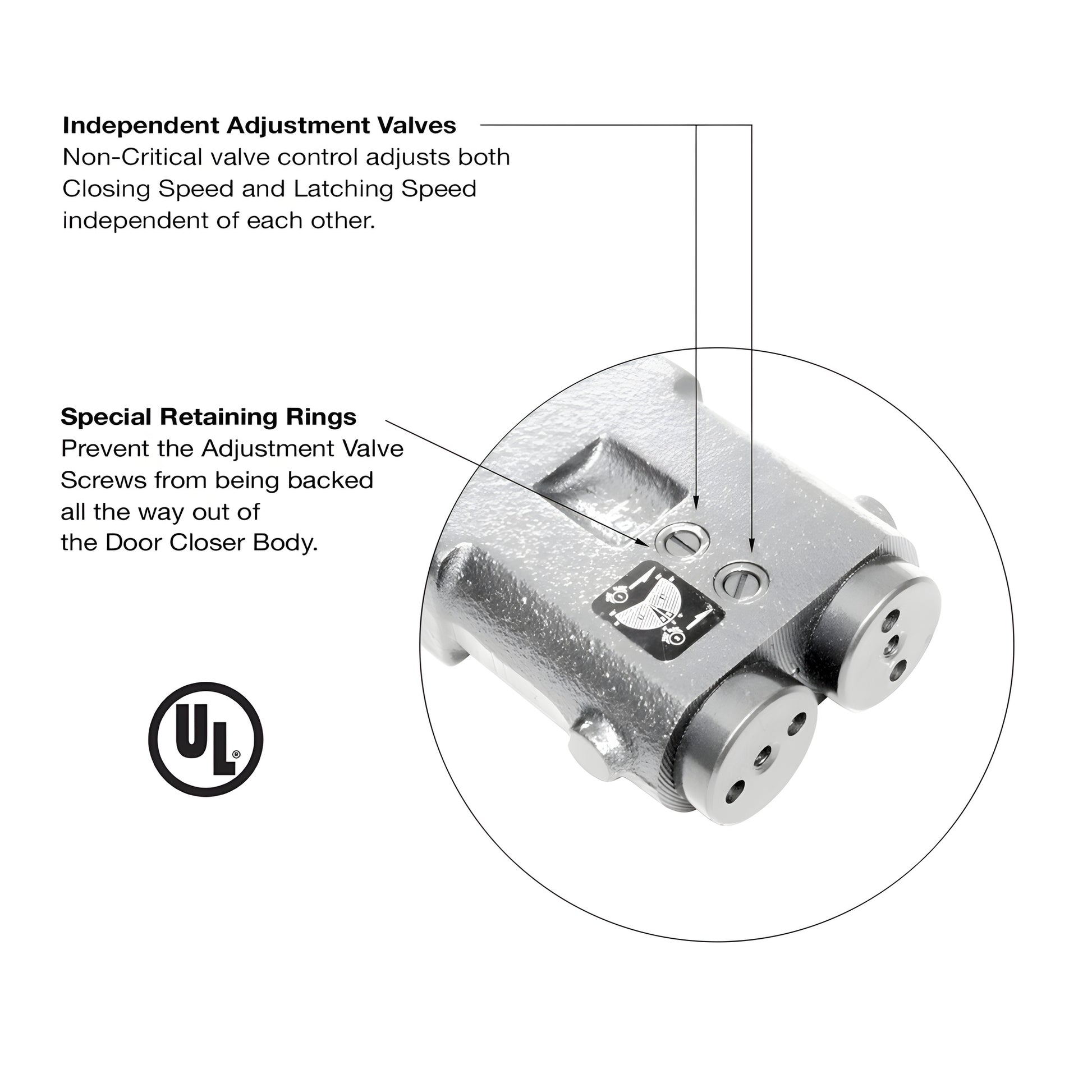

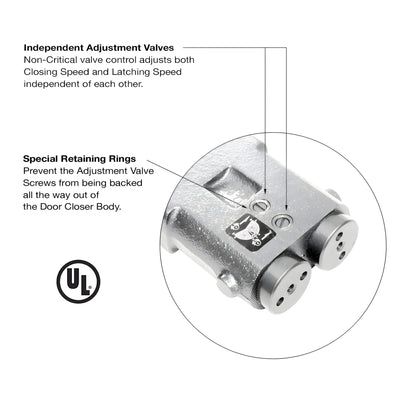

Independent Adjustment Valves
Non-critical valve control lets you set Closing Speed and Latching Speed independently for precise performance.

Special Retaining Rings
Prevent adjustment screws from being backed out of the door closer body, increasing durability and reducing maintenance.

Note: Use an auxiliary floor or overhead door stop to prevent damage from over-extension of the door swing.

Weight and Size Limitations
Door weight: 200 lbs (91 kg)
Exterior door width: 42" (1.07 m)
Interior door width: 48" (1.22 m)
Door height (all): 96" (2.44 m)

Order the CRL7170 door closer body today to retrofit Jackson®-style overhead concealed closers with precision control and durable mounting clips.
