CRL Medium-Duty 105° No-Hold-Open Low-Profile Floor Door Closer

• 264 lb capacity for doors up to 42" wide
• Low-profile 1-9/16" (40 mm) shallow floor cut-out
• Interchangeable spindle heights (standard 1/8" (3 mm) collar supplied)
• 5 Year Limited Warranty
• UL Listed

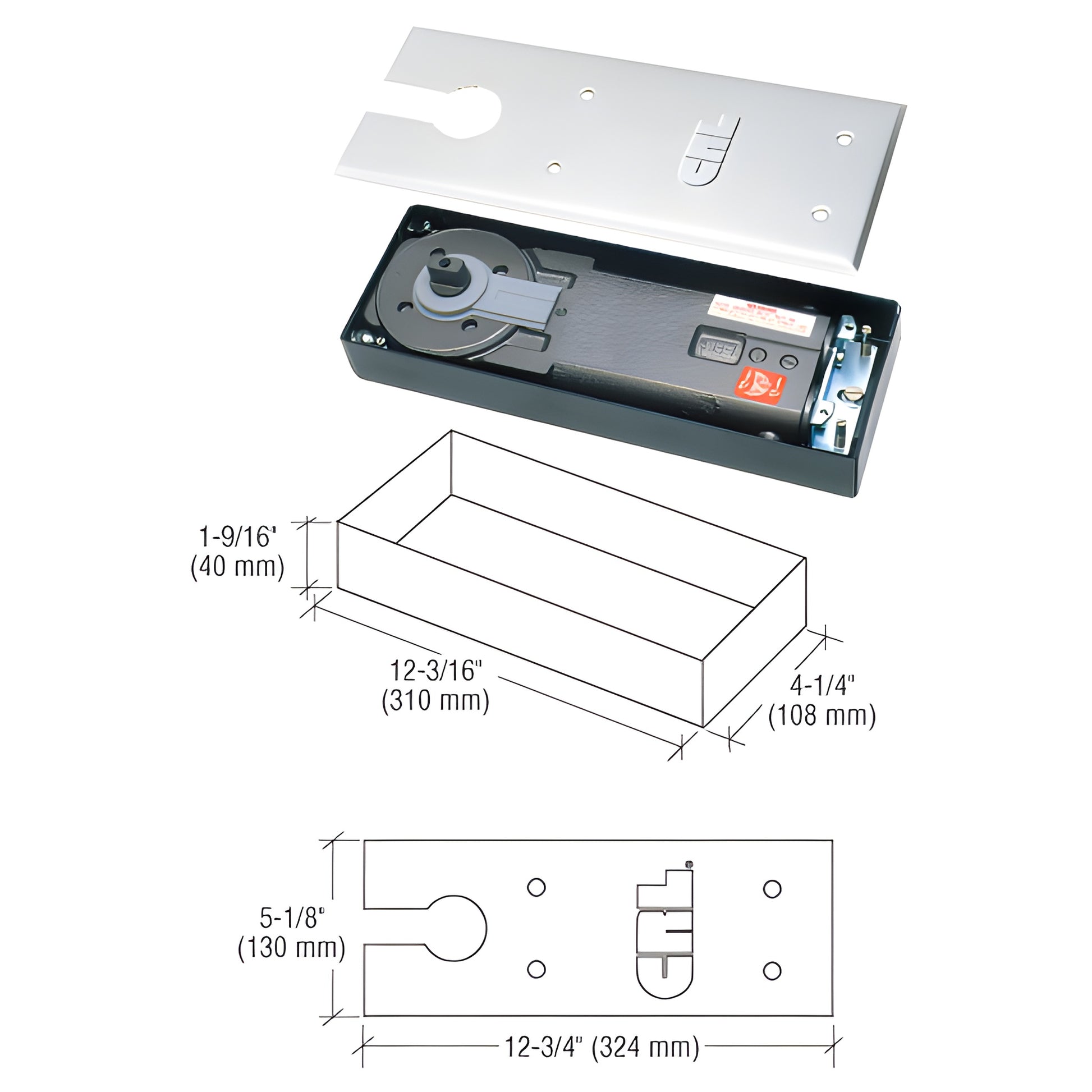

These CRL Shallow Depth Floor Mounted Door Closers (SKU: CRL8372) are designed for installations that require a minimal 1-9/16" (40 mm) cut-out in the floor—ideal for floors above ground level where remaining floor thickness is critical. The low-profile design supports heavier doors while minimizing floor modification. Separate valves allow independent adjustment of closing and latching speeds. Available in 90° and 105° Hold-Open and No Hold-Open models.

The supplied 1/8" (3 mm) collar height spindle provides a 5/16" (8 mm) clearance from the finished floor to the door bottom; optional spindles accommodate other finished floor heights. Accessories available include cover plates, pivots, center-hung and offset arms to suit varied installation needs.

Note: Use an auxiliary floor or overhead door stop to prevent damage from over-extension of the maximum allowable door swing.

Specifications:
Maximum Door Weight: 264 lb (120 kg)
Maximum Interior Door Width: 42" (1.07 m)
Maximum Exterior Door Width: 38" (965 mm)

Find CRL8372 for low-profile floor-mounted door closer applications—order now or contact CRL Customer Service for help with specifications and shipping.
