CRL 105Β° Medium-Duty Overhead Concealed Door Closer S-Side Load Kit
CRL 105Β° Medium-Duty Overhead Concealed Door Closer S-Side Load Kit
Regular price
$194.55 CAD
Regular price
Sale price
$194.55 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL8172S
Shipping Weight: 9.17 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 9.17 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Bottom Door Rail Depth
1
Bottom Pivot Type
Dual Purpose Pivot
Case Quantity
6
Closer Type
Overhead Concealed
Handing
Double Acting
Includes
CRL7172, CRL8010FS, CRL8010S, CRL8010DP
Material
Aluminum
Maximum Door Weight
200
No Hold Open
105Β°
Package Type
Side Load S
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
CRL8010CPAL, CRL8010CPDU, HMC035, DCH4SAS, DCH4DUS, CRL8010SCP, SLB3, SLS1
Similar
CRL8772S
Spindle
1/2
Spring Size
Medium
Top Rail Depth
1/2
Type
Center Hung
UL Listed
Yes
Overview
- For doors with 1/2" (13 mm) top rail depth
- Adjustable dual-purpose bottom pivot set for floor or threshold mounting
- Includes all necessary parts
- 5 Year Limited Warranty
- UL Listed

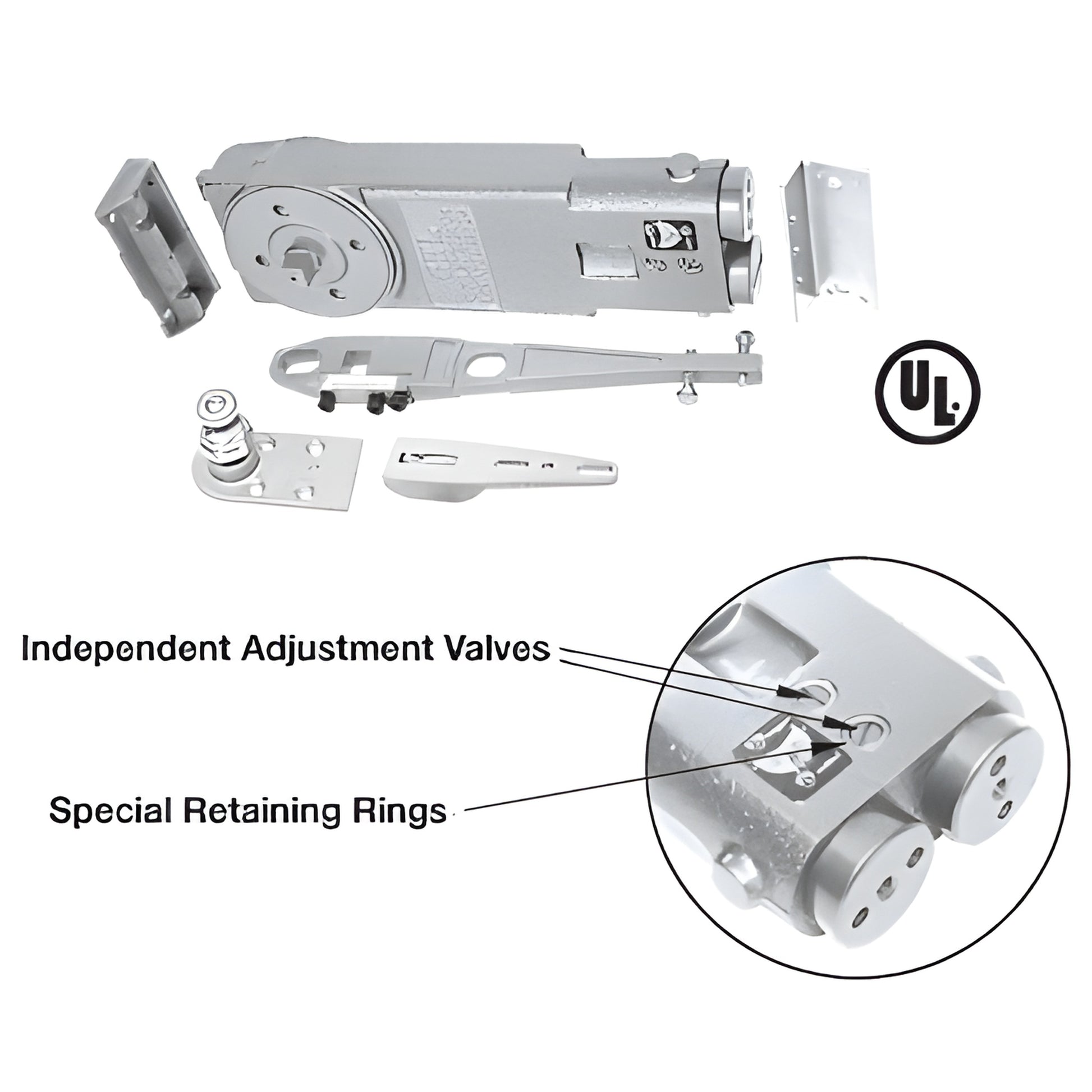

These CRL Overhead Door Closer Kits (SKU: CRL8172S) include a medium spring size door closer, mounting clips, Type S side-load arm, and a DP-adjustable dual-purpose bottom pivot set or GE bottom pivot set. The closer body fits standard 1-3/4" x 4" (44 x 102 mm) or larger extrusions and is suitable for overhead concealed installation. Available in both 90Β° and 105Β° hold-open and no-hold-open models. Ideal for storefront and commercial glass doors requiring an overhead closer and adjustable bottom pivot.
Independent Adjustment Valves
Non-critical valves allow independent control of closing speed and latching speed for precise, repeatable performance.
Special Retaining Rings
Prevent adjustment valve screws from being backed completely out of the door closer body.
NOTE: An auxiliary floor or overhead door stop is recommended to prevent damage to the door closer and entry due to over-extension of maximum allowable door swing.
Product Warning:
This closer is not to be used for doors weighing in excess of 200 lbs.
Order the CRL8172S overhead door closer kit today to secure and control commercial glass doorsβcontact CRL for availability and installation accessories.
