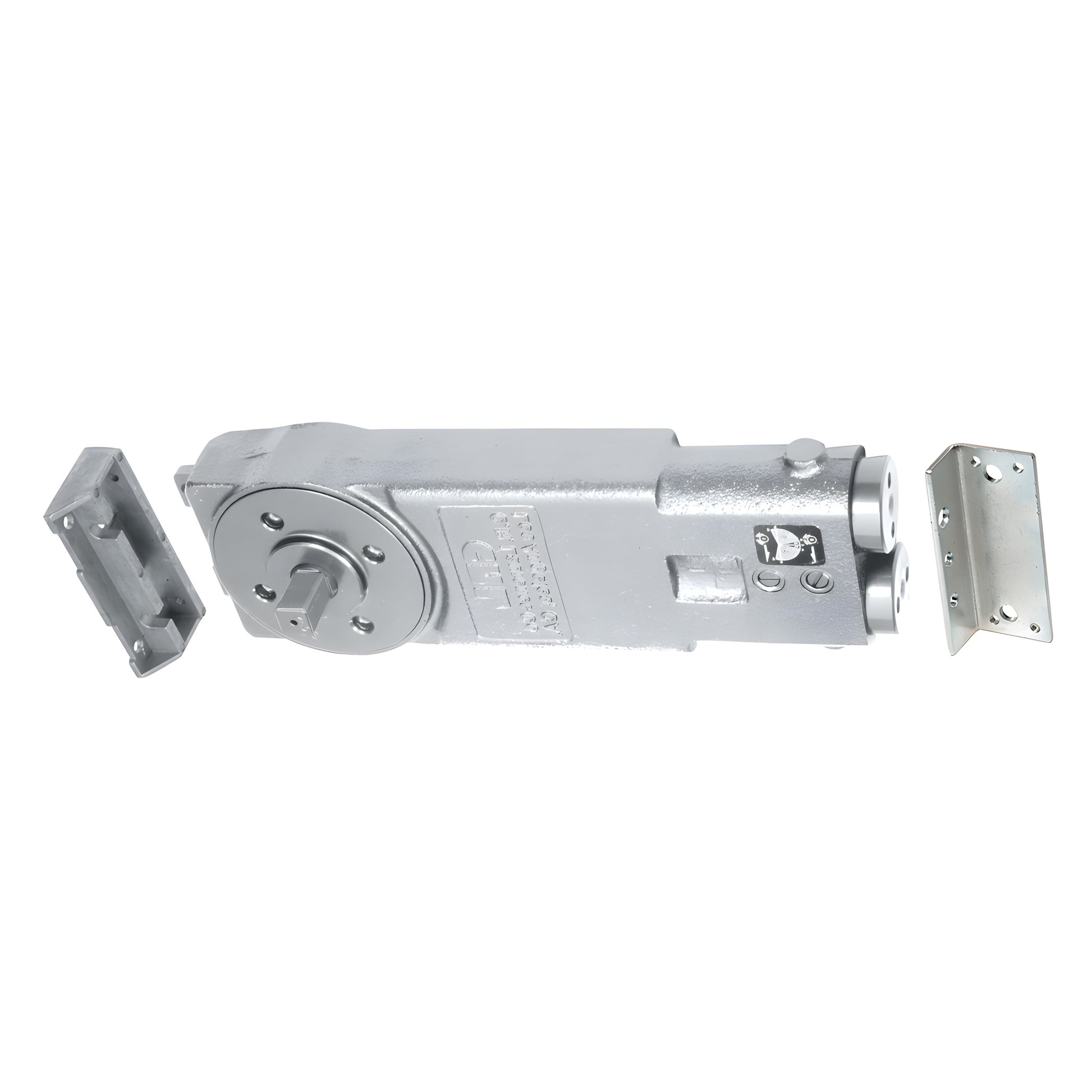

CRL Concealed Overhead Door Closer 90° No Hold 3/4" Spindle w/ Clips
CRL Concealed Overhead Door Closer 90° No Hold 3/4" Spindle w/ Clips
Regular price
$136.32 CAD
Regular price
Sale price
$136.32 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL9162
Shipping Weight: 10.13 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 10.13 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Case Quantity
6
Closer Type
Overhead Concealed
Door Height
96
Handing
Double Acting
Includes
CRL8010FS
Maximum Door Weight
200
No Hold Open
90°
Recommended Door Type
Aluminum, Hollow Metal
Spindle
3/4
UL Listed
Yes
Overview
- Interchangeable with All Jackson® Style Overhead Concealed Door Closers
- Extended 3/4" (19 mm) long spindle for use with patch fittings and door rail hardware
- Available in adjustable models with 90° and 105° hold-open or no hold-open
- UL Listed
- Conveniently packaged with mounting clips, templates and instructions
This CRL Overhead Concealed Closer for Patch Fittings and Door Rails (SKU: CRL9162) features an extended 3/4" (19 mm) spindle—ideal for patch hardware and door rail installations. The closer uses independent dual-action valves (separate closing and latching speed adjustment) for precise control. Choose 90° or 105° hold-open models or no hold-open. Interchanges with Jackson®, International and similar overhead concealed closers. Mounting clips, templates and instructions are included.

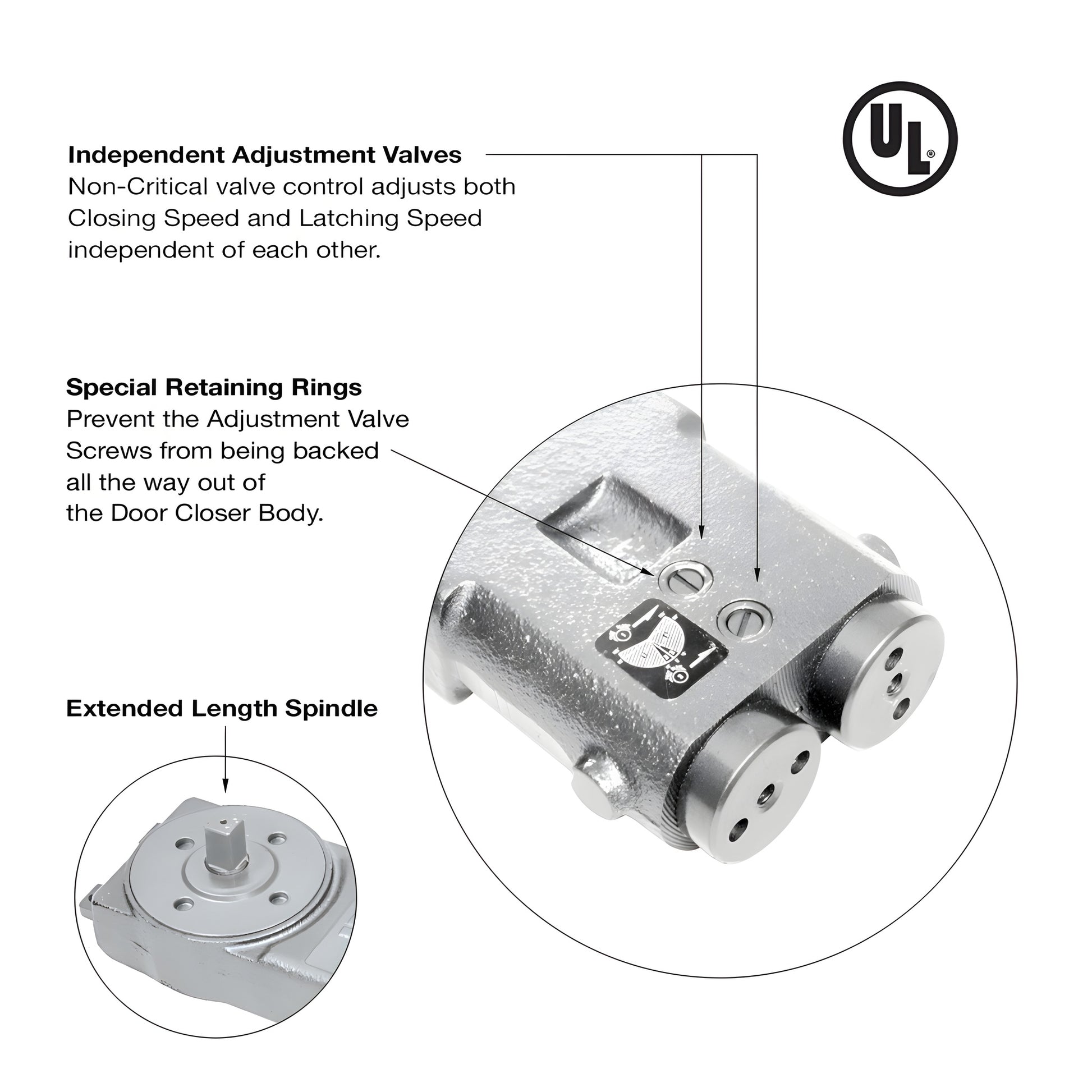

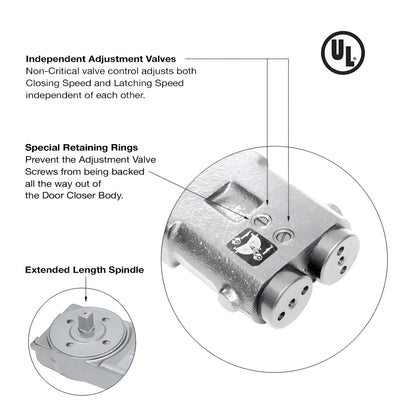

Extended Length Spindle
3/4" (19 mm) spindle provides extra reach for patch fittings, door rail hardware, and retrofit applications.
Independent Adjustment Valves
Non-critical valves let you set Closing Speed and Latching Speed independently for smooth, reliable operation.
Special Retaining Rings
Prevent valve screws from being backed out of the closer body, protecting adjustments during installation and service.
Weight and Size Limitations
Door Weight: 200 lbs (91 kg)
Exterior Door Width: 42" (1.07 m)
Interior Door Width: 48" (1.22 m)
Maximum Door Height: 96" (2.44 m)
