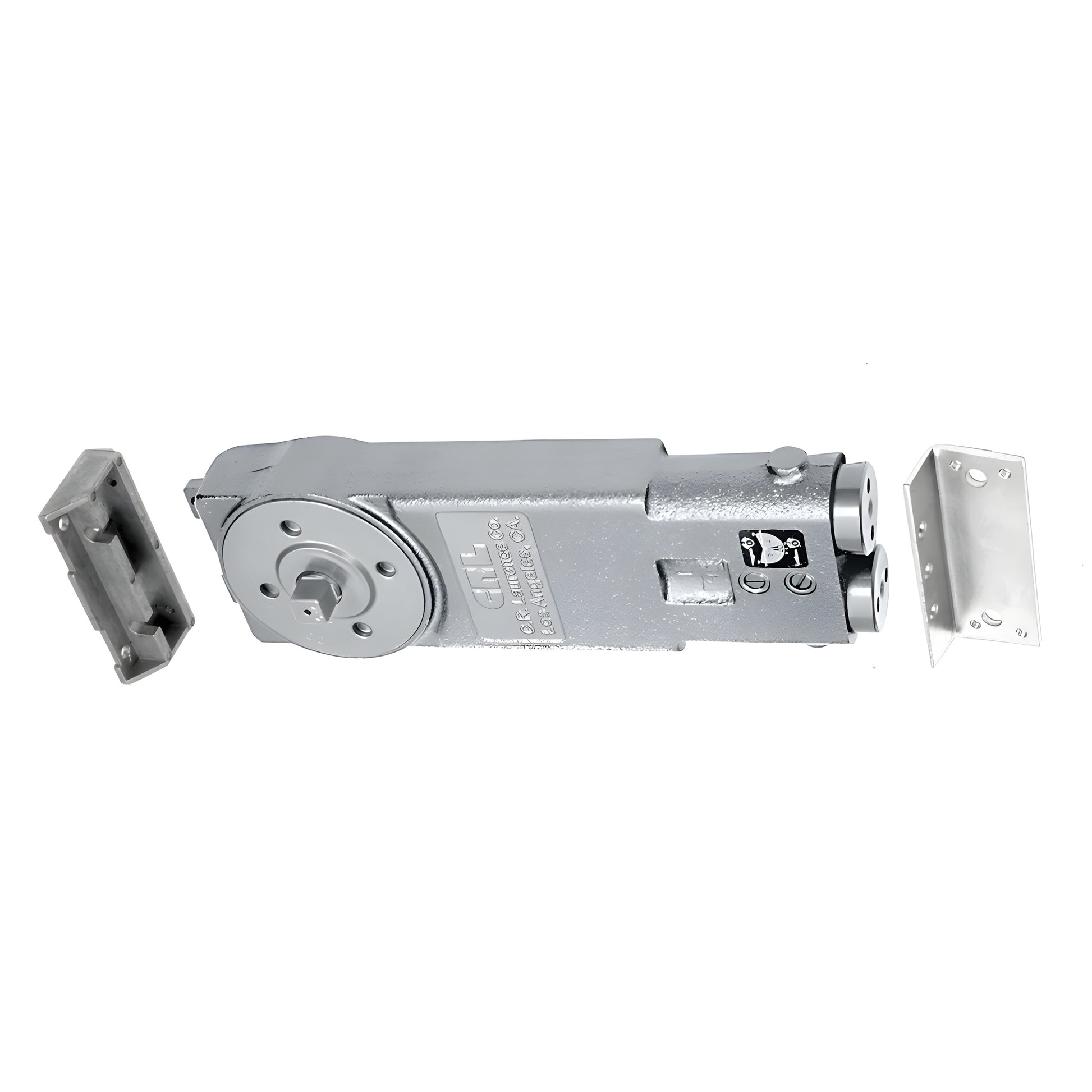

CRL 90° Medium-Duty Overhead Concealed Door Closer Body (No Hold Open)
CRL 90° Medium-Duty Overhead Concealed Door Closer Body (No Hold Open)
Regular price
$133.48 CAD
Regular price
Sale price
$133.48 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL7162
Shipping Weight: 10.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 10.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Case Quantity
6
Closer Type
Overhead Concealed
Door Height
96
Handing
Double Acting
Includes
CRL8010FS
Maximum Door Weight
200
No Hold Open
90°
Recommended Door Type
Aluminum, Hollow Metal
Spindle
1/2
Spring Size
8.5
UL Listed
Yes
Overview
- Interchangeable with all Jackson®-style overhead concealed door closers
- 20 models available (SKU: CRL7162)
- Conveniently packaged with mounting clips, templates, and instructions
- 5‑Year Limited Warranty
- UL Listed
There are two advantages to buying our Door Closer Bodies with Mounting Clips. First, if you are replacing a worn door closer, you save by not purchasing unnecessary hardware. Second, by adding accessories you can configure a door closer package with the exact pivots, arms, and parts needed for your installation. Each door closer body ships with mounting clips, templates, and installation instructions.

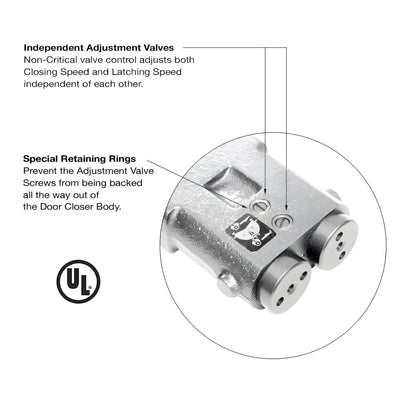

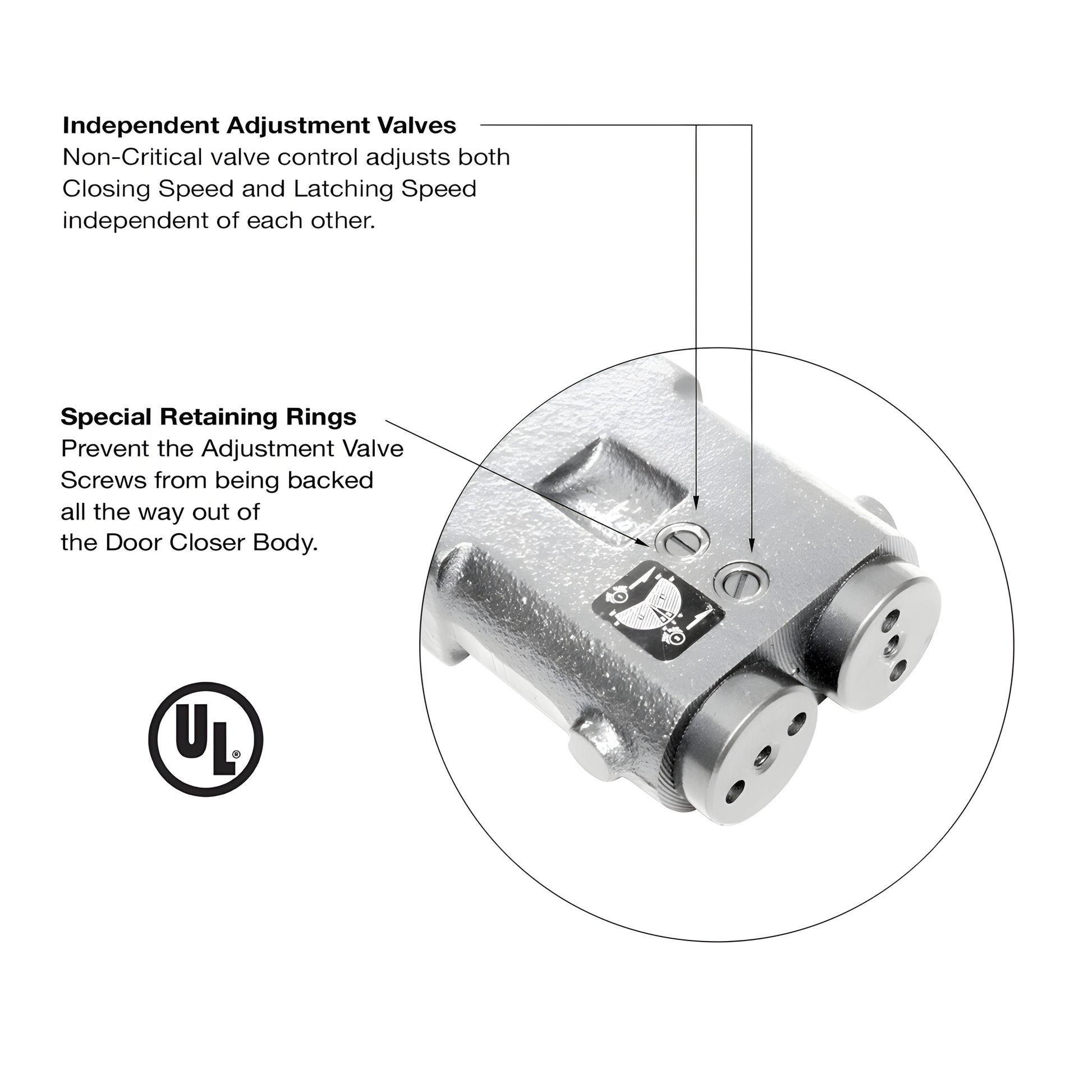

Independent Adjustment Valves
Non-critical valve control allows independent adjustment of both closing speed and latching speed.
Special Retaining Rings
Prevent the adjustment valve screws from being backed completely out of the door closer body.
Note: Use an auxiliary floor or overhead door stop to prevent damage from over-extension of maximum allowable door swing.
Weight and Size Limitations
Door weight: 200 lbs (91 kg)
Exterior door width: 42" (1.07 m)
Interior door width: 48" (1.22 m)
Door height: 96" (2.44 m)
Find the exact replacement Jackson®-style concealed door closer body (CRL7162) for your project — order now or contact CRL for assistance.
