CRL 5x5 Metallic Silver Offset Base Plate - Post Mount
CRL 5x5 Metallic Silver Offset Base Plate - Post Mount
Regular price
$64.99 CAD
Regular price
Sale price
$64.99 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# BP05S
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description

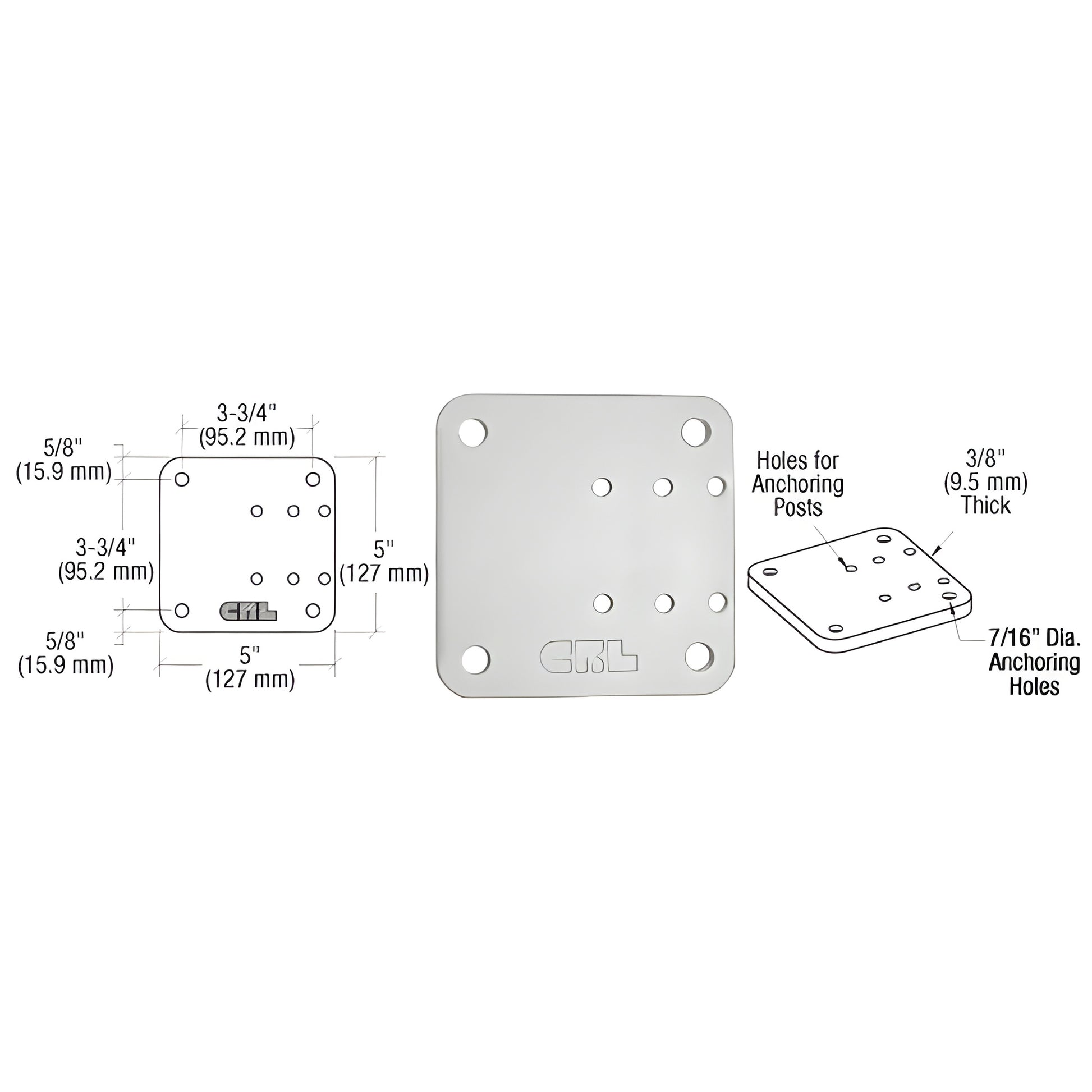

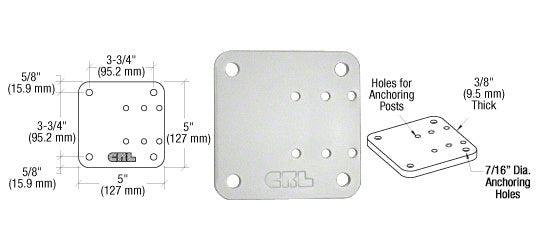

Base Plate Diameter
5 in. (127 mm)
Base Plate Thickness
3/8 in. (10 mm)
Finish/Color
Silver Metallic
Material
Aluminum
Overview
- Seven standard colors, plus unfinished chromate available — for standard and 45° post applications
- Compatible with all standard railings
- For 2-3/8" (60 mm) square aluminum posts
CRL Standard Square Base Plates (SKU: BP05S) screw into vertical post raceways and are countersunk to accept four Cat. No. BPS112 base plate screws. The BP05 offset base plate design positions the vertical post to one side of the plate for flush or offset mounting. Attach to substrate with CRL concrete anchors or lag bolts. Use stainless steel washers (WSHR1) and color-match bolt cover buttons (BTN1) for a finished appearance. One moisture barrier gasket (Cat. No. BPG1BL) is included with each base plate.
Key differentiators:
- Offset design for side-mounted square aluminum posts
- Countersunk holes for a clean, low-profile installation
- Available in seven finished colors plus unfinished chromate for custom projects
Product Warning:
All ARS/AWS products are painted to order and are non-refundable and non-returnable.
Order BP05S offset base plates for reliable, low-profile mounting of 2-3/8" square aluminum posts — contact CRL to buy or request exact shipping weight.
