CRL 135° Silver AWS Steel Stanchion for Rectangular Center Posts
Item# PSB5AS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Base Plate Length
5 in. (127 mm)
Base Plate Thickness
3/8 in. (10 mm)
Base Plate Width
5 in. (127 mm)
Degree
135
Finish/Color
Silver Metallic
Height
12 in. (305 mm)
Material
Zinc Plated Steel
Mounting Hole Diameter
1/2 in. (13 mm)
- Fits Post Heights Up to 24" (610 mm)
- Available in Several Attractive Colors
- 90°, 135°, and 180° Base Options for Concrete or Steel Installations
- Attaches to Posts Using Our 95CBL Silicon
- Galvanized and Powder-Coated Finish for Corrosion Resistance

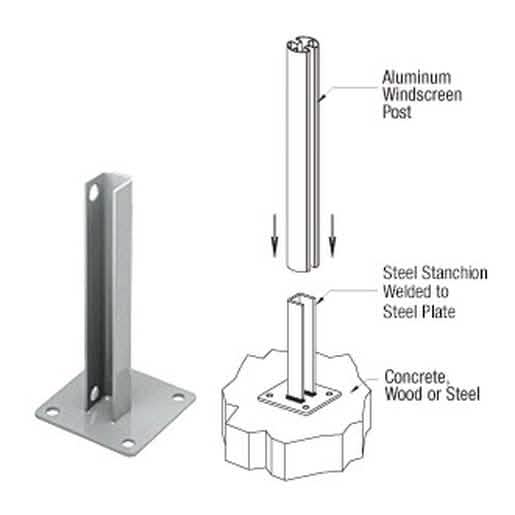

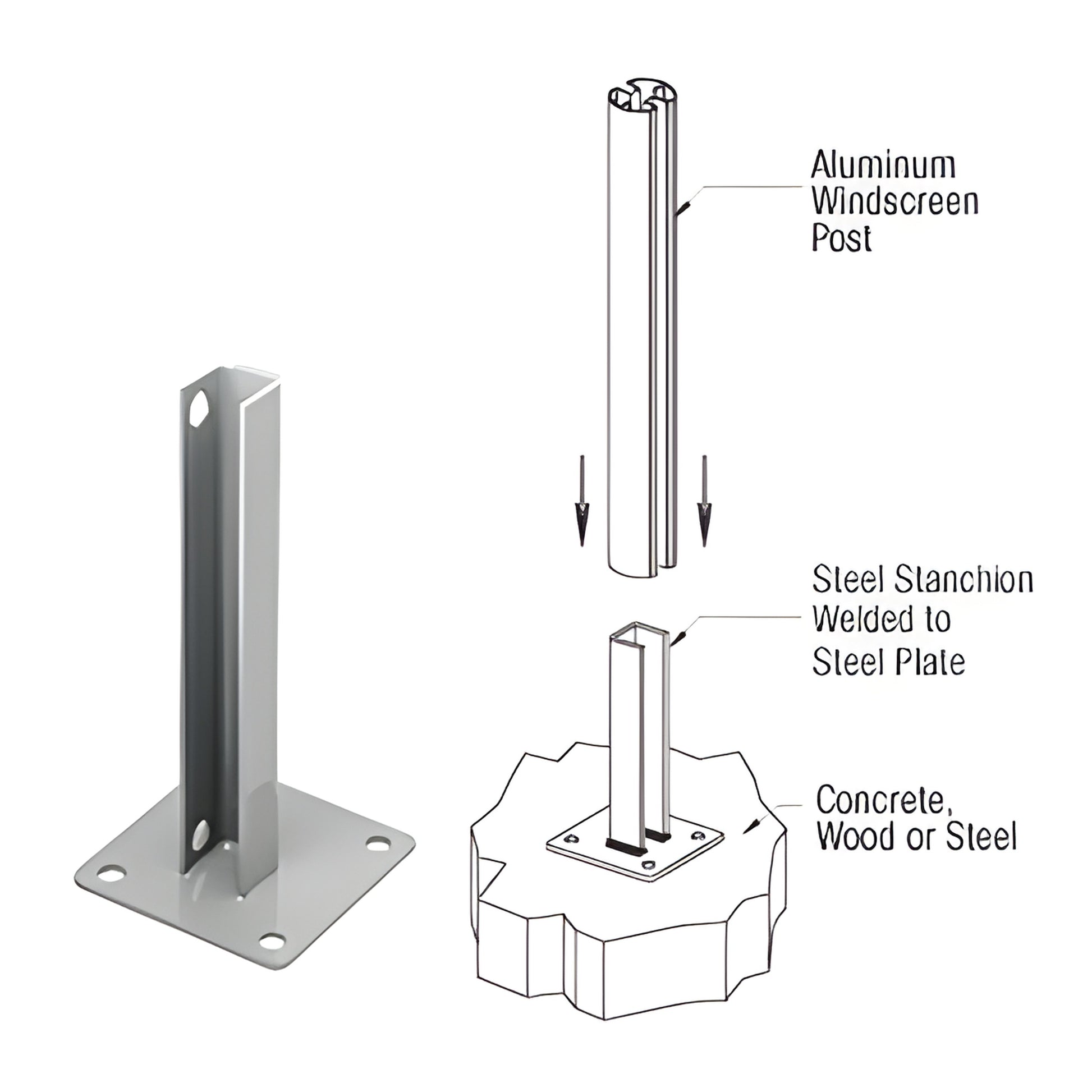

CRL Welded Steel Stanchions (SKU: PSB5AS) are engineered for surface-mount applications with our aluminum posts. Each stanchion is welded to a heavy-duty steel base plate and powder-coated to match CRL aluminum posts and bottom rails, providing a cohesive, durable solution for railing systems.
Stanchions are sold individually and available in multiple sizes to accommodate different post heights. Choose from color-matched, powder-coated finishes with galvanized protection—ideal for exterior and high-traffic installations.
Product Warning:
All ARS/AWS products are painted to order and are non-refundable and non-returnable.
Most shipping weights are approximate and have not been verified. If an exact shipping weight is required to determine shipping costs before ordering, contact CRL Customer Service. Product images show the actual product or a close representation; colors may vary by monitor and video card settings.
Contact CRL Customer Service to order or request exact shipping weights.
Engineering & Test Reports
