CRL Mill 200/300/350/400 Series 42in 135° Surface-Mount Post Kit
Item# P542KM
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Base Plate Length
5 in. (127 mm)
Base Plate Mounting Holes
4
Base Plate Thickness
3/8 in. (10 mm)
Finish/Color
Mill
Height
2-3/8 in. (60 mm)
Length
42 in. (1067 mm)
Material
Aluminum
Mounting Hole Diameter
7/16 in. (11 mm)
- Three standard post heights (select per order)
- Includes base plate, moisture barrier gasket, screws, stainless washers, and color‑match bolt cover buttons
- Designed for installation on concrete, wood, steel, and other substrates
- Available in several attractive, painted colors; custom heights and colors available

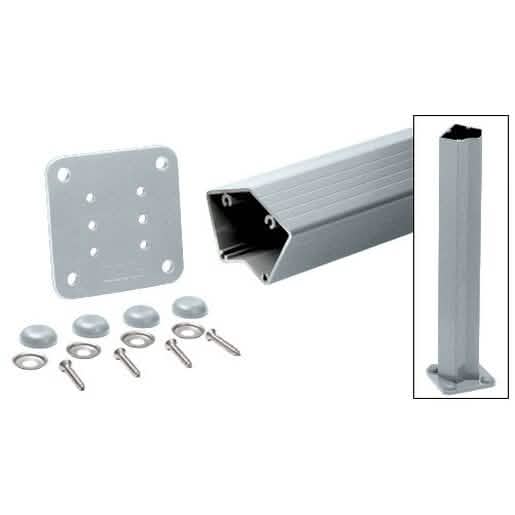

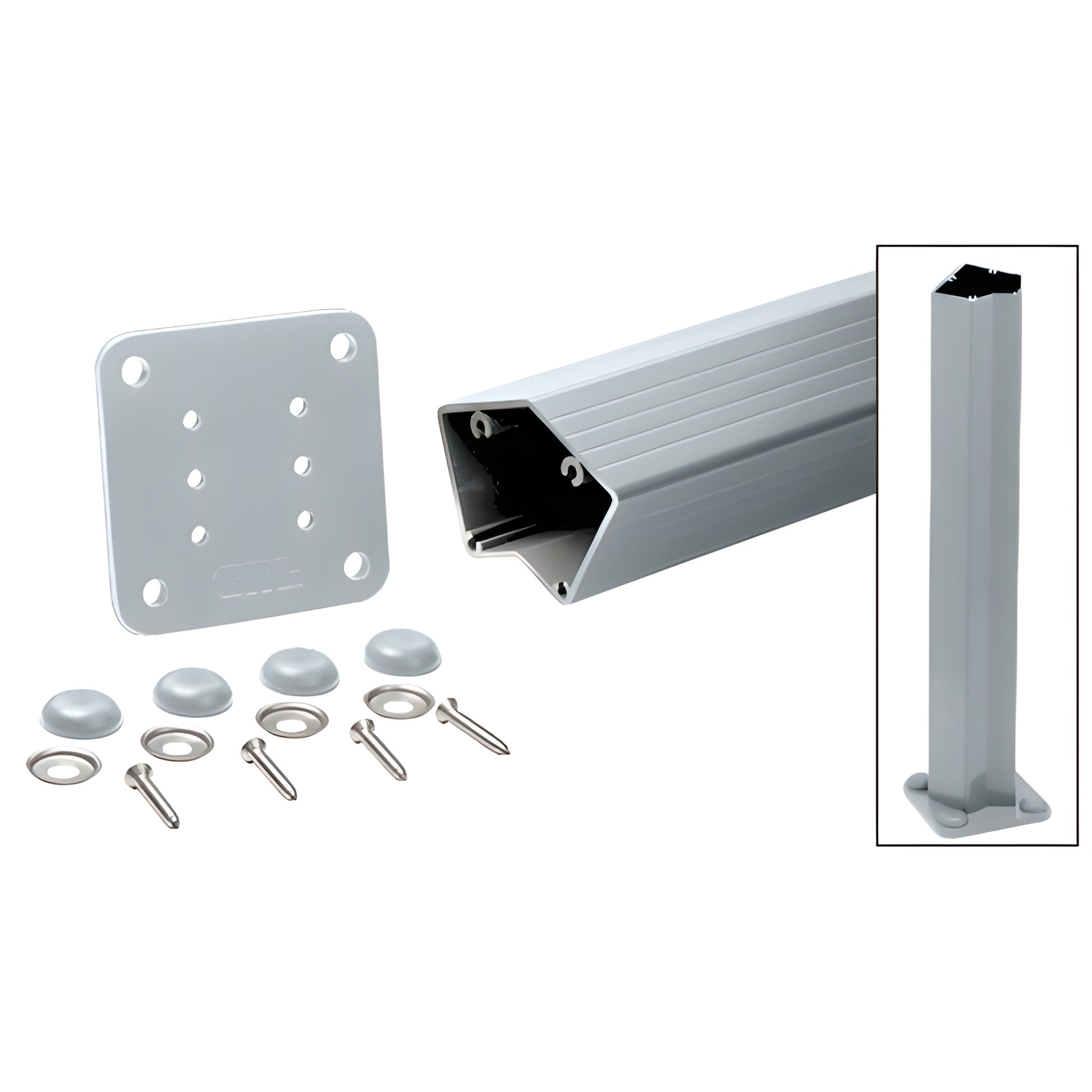

CRL 135 Degree Post Kits (SKU: P542KM) are complete railing post kits engineered for 135° glass and panel installations. Each kit includes Base Plate (BP5), Moisture Barrier Gasket (BPG1BL), Base Plate Screws (BPS112), Stainless Steel Washers (WSHR1), and Color‑Match Bolt Cover Buttons (BTN1). These post kits are ideal for mounting to concrete, wood, steel, and similar substrates and are available in three standard heights and multiple painted finishes for a coordinated look.
Key differentiators:
- All‑in‑one kit with color‑matched bolt cover buttons for finished appearance
- Moisture barrier gasket included to protect substrate and hardware
- Stainless steel washers and screws for corrosion resistance
- Painted‑to‑order color options and custom heights available
Product Warning:
All ARS/AWS products are painted to order and are non‑refundable and non‑returnable.
Most shipping weights are approximate and have not been verified. If an exact weight is required to determine shipping costs before ordering, please request this information from CRL Customer Service. Product images are representative; actual colors may vary based on your monitor and video settings.
For pricing, lead times, or to order SKU P542KM, contact CRL Customer Service or add this CRL 135 Degree Post Kit to your cart now.
