CRL Mill Aluminum Coastal Series Wall Mounted Hand Rail Bracket
Item # HR2FWMA
$86.32
CAD
Finish (3)
Overview
| SKU | HR2FWMA |
|---|---|
| Sold As | 1 Each |
| Alloy | 316 |
| Centerline Width Projection | 2-13/16 in. (71 mm) |
| Finish/Color | Mill |
| Height | 2-1/2 in. (64 mm) |
| Material | Aluminum |
Description
- 2-Way Adjustable
- Ready-to-Install
- Two Architectural Finishes Plus Mill Finish Aluminum
- For 1-1/2" to 2" (38 to 50.8 mm) Diameter Hand Rail Tubing

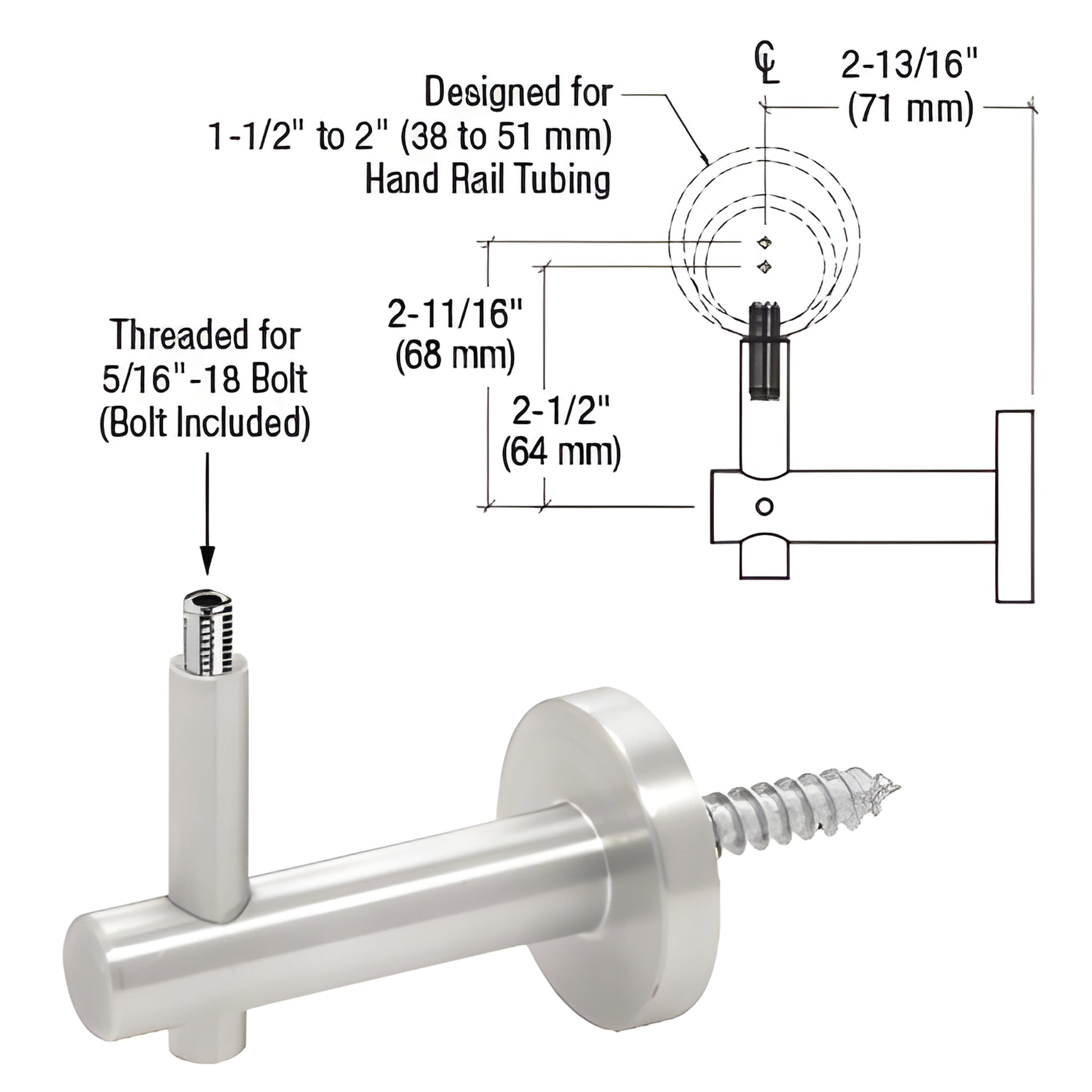

This CRL Coastal Series Wall Mounted Hand Rail Bracket is available in three architectural finishes for 1-1/2" to 2" (38 to 50.8 mm) diameter hand rail Tubing. This bracket is unique in that it mounts directly to hand rail tubing without the use of a saddle. Brackets are individually packed and come with attachment screws and an hanger bolt for wall mounting.
Specifications
Brochures & Literature
Quote Request Forms
CAD Drawings - pdf
CAD Drawings - dwg
