CRL Mill Aluminum Smoke Baffle Base Shoe for 1/2" Glass in a 10' Length

• For Fabricating Almost Invisible Smoke Curtains from 1/2" (12 mm) Tempered Glass
• Glass is Mechanically Secured with Fasteners and Grommets
• Custom Drilling, Mitering, and Cutting Services Available

CRL Standard Smoke Baffle Base Shoe is designed to provide an almost invisible 1/2" (12 mm) tempered glass smoke curtain. Many of today's fire codes require large offices or retail areas to be broken down into smaller, more manageable areas that can be monitored by smoke detectors. This is the specific application for smoke baffles or curtains. Smoke curtains work to retain smoke in a specific area of a specified square footage. Some sprinkler systems are activated by a smoke alarm, so sectioning off areas through the use of smoke curtains can prevent unnecessary sprinkler activation.

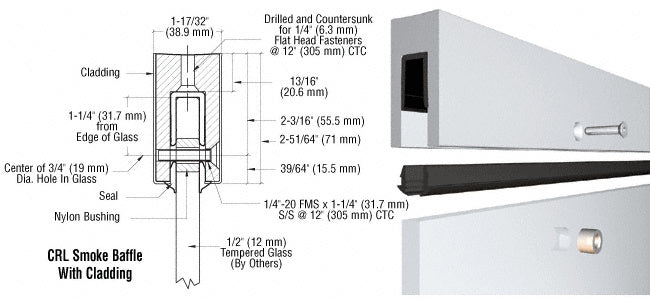

Extruded Aluminum Standard Smoke Baffle Base Shoe simply attaches to the ceiling structure so the glass can hang straight down. Smoke Baffles come with our GR5PV Cap Rail Vinyl, our RG12100 Roll-In Vinyl, and screws going through nylon grommets, which fit into 3/4" (19 mm) holes drilled in the glass on 12" (305 mm) centers. Cladding in six architectural finishes is available.

NOTE: Check your local building codes for regulations pertaining to ceiling area square footage and required depth specifications for smoke baffles or glass curtains.


Product Warning:

Check your local building codes for regulations pertaining to ceiling area square footage and required depth specifications for glass curtains.
