CRL Mill Finish 1.9" 90° Corner for 1/2" & 5/8" Glass Cap Railing
CRL Mill Finish 1.9" 90° Corner for 1/2" & 5/8" Glass Cap Railing
Regular price
$289.84 CAD
Regular price
Sale price
$289.84 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# GR19HM
Shipping Weight: 9.6 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 9.6 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Angle
90
Diameter
1.9 in. (48 mm)
Finish/Color
Mill
Material
6063-T6 Aluminum
Overview
- Mitered and finished
- 6063‑T6 mill aluminum alloy
- New oval corner in mill aluminum
- Requires two connector sleeves (not included)

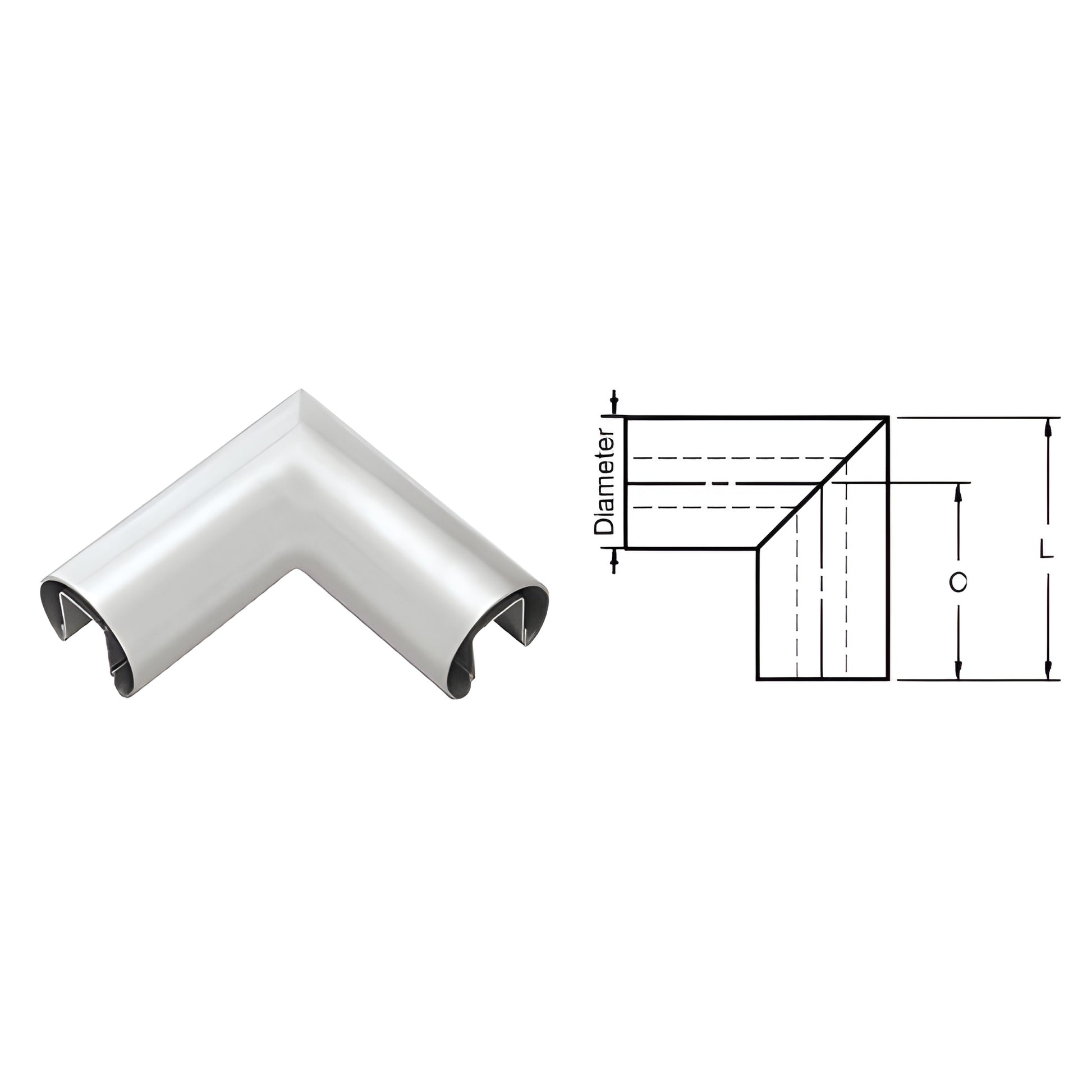

CRL Interior Slip-Fit Horizontal Corners — GR19HM
CRL GR19HM interior slip‑fit horizontal corners for 1/2" (12 mm), 9/16" (13.52 mm) or 5/8" (16 mm) glass enable hairline joint assemblies with straight lengths of CRL cap rail. These mitered, finished corners are made from durable 6063‑T6 mill aluminum alloy and are individually fabricated and packed.
Use CRL Cat. No. 32629 Metal Contact Cement to achieve a secure, permanent bond. Two connector sleeves (not included) are required per corner. Internal corner splices produce architecturally pleasing mitered joints. Our aluminum corners are welded for painted finishes only.
Standard stainless alloy is 304; stainless 316 is available by special order.
Glass securing recommendations:
- 1/2" (12 mm) glass: Cat. No. GR5PV cap rail vinyl and 95CBL silicone.
- 9/16" (13.52 mm) laminated glass: Cat. No. LR56PV cap rail rubber insert and 95CBL silicone.
- 5/8" (16 mm) glass: 95CBL silicone and shims.
Note: Product images represent the product or a close representation; colors may vary by monitor. Most shipping weights are approximate—contact CRL Customer Service for exact weights or shipping quotes.
Please contact CRL Technical Sales for more information or a quote. Order GR19HM today to complete your glass railing or partition project.
