CRL Mill Finish Mirror Mounting Frame Cleat - Wall Hanger

• Designed for CRL Mirror Mount System Extrusions
• Helps prevent mirror backing failure due to moisture build-up

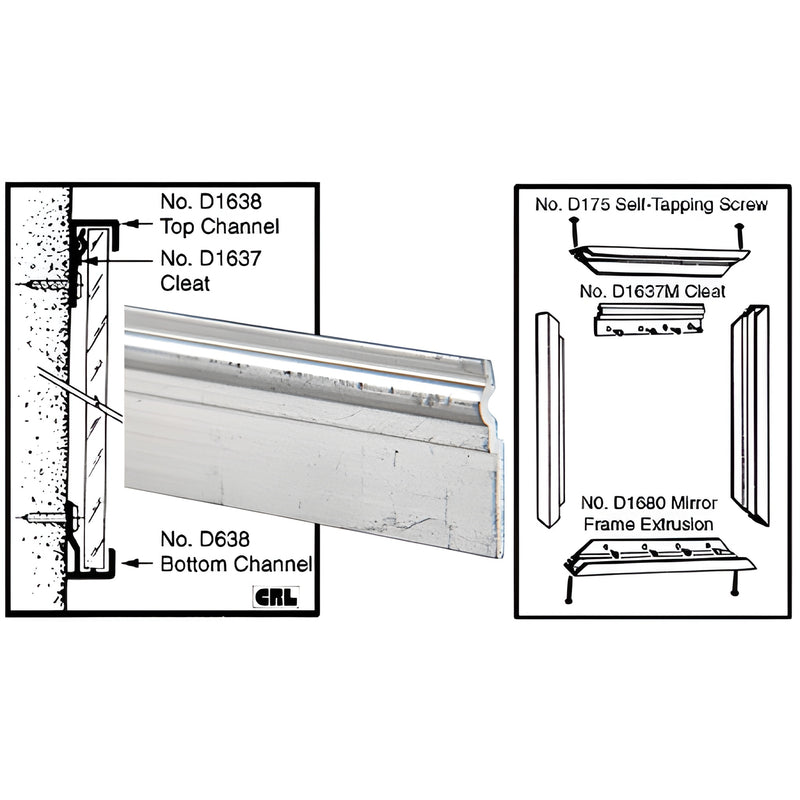

This CRL Mirror Mount Frame Cleat (SKU: D1637M) features a unique offset profile that holds a mirror away from direct contact with the wall and creates a pocket for a Top Channel Cap or Mirror Frame Extrusion. The offset design reduces moisture entrapment behind the mirror, conceals screws and support hardware, and provides a clean, narrow 5/16" (7.9 mm) framed mirror installation when used with a bottom FHA Type J-Bar and Top Channel Cap—ideal for installers seeking a slim, moisture-resistant mirror mounting solution.

If a fully framed system is desired, use Mirror Frame Extrusion.

Hint: When using the Top Channel Cap and FHA J-Bar system, closed ends can be created by trimming a portion of the J-Channel and bending back the front flaps to close off the ends.

SPECIFICATIONS:
Material: 6063-T5 Aluminum Alloy
Thickness: .047" (1.19 mm)
Stock Length: 12' (3.66 m)
Typical Use: Holds mirror away from direct contact with the wall surface. Can be used with D1680 Mirror Frame Extrusion or D1638 Top Channel.

Product Warning:

Stock lengths must ship common carrier unless specifically cut for UPS shipment.

Not recommended for schools, hospitals or institutions where mirror edges should be protected on all four sides.

Order SKU D1637M now to reduce mirror backing failure from moisture and achieve a clean,
