CRL Nylon Plunger Latch Replacement for 3/4 x 1/4 or 5/16 Frame
CRL Nylon Plunger Latch Replacement for 3/4 x 1/4 or 5/16 Frame
Regular price
$47.24 CAD
Regular price
Sale price
$47.24 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# WSC614PK
Shipping Weight: 1.92 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.92 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Cap Length
7/16 in. (11.1 mm)
Pack Quantity
100
Plunger Latch For Frame Sizes
3/4 x 1/4, 5/16
Overview
- Holds window screen into the frame

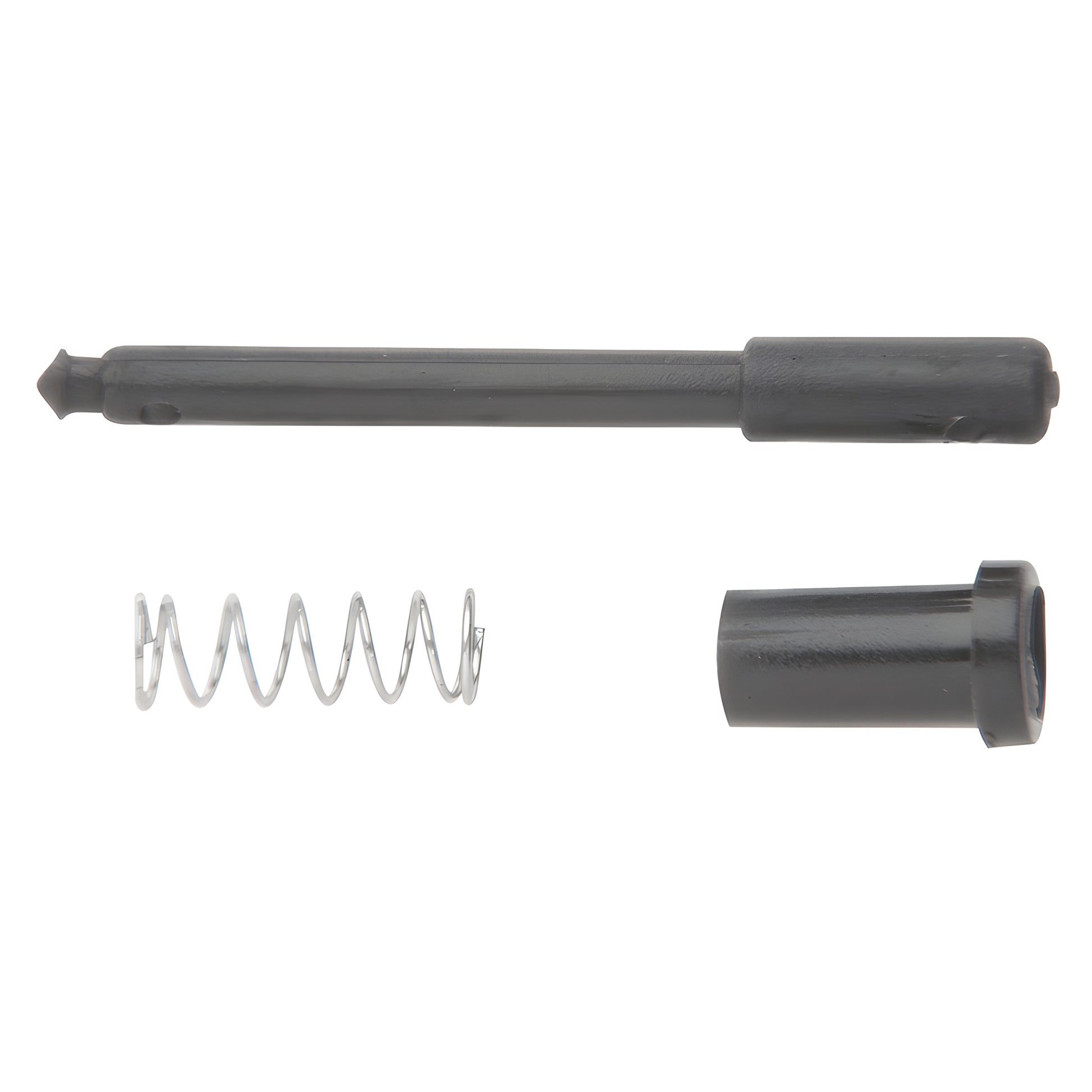

- Black nylon spring-loaded plunger latch (WSC614PK)
- Fits 1/4" to 7/16" (6.3–11 mm) screen frames
- Installs into 7/32" (5.6 mm) pilot hole; two-step drilling required

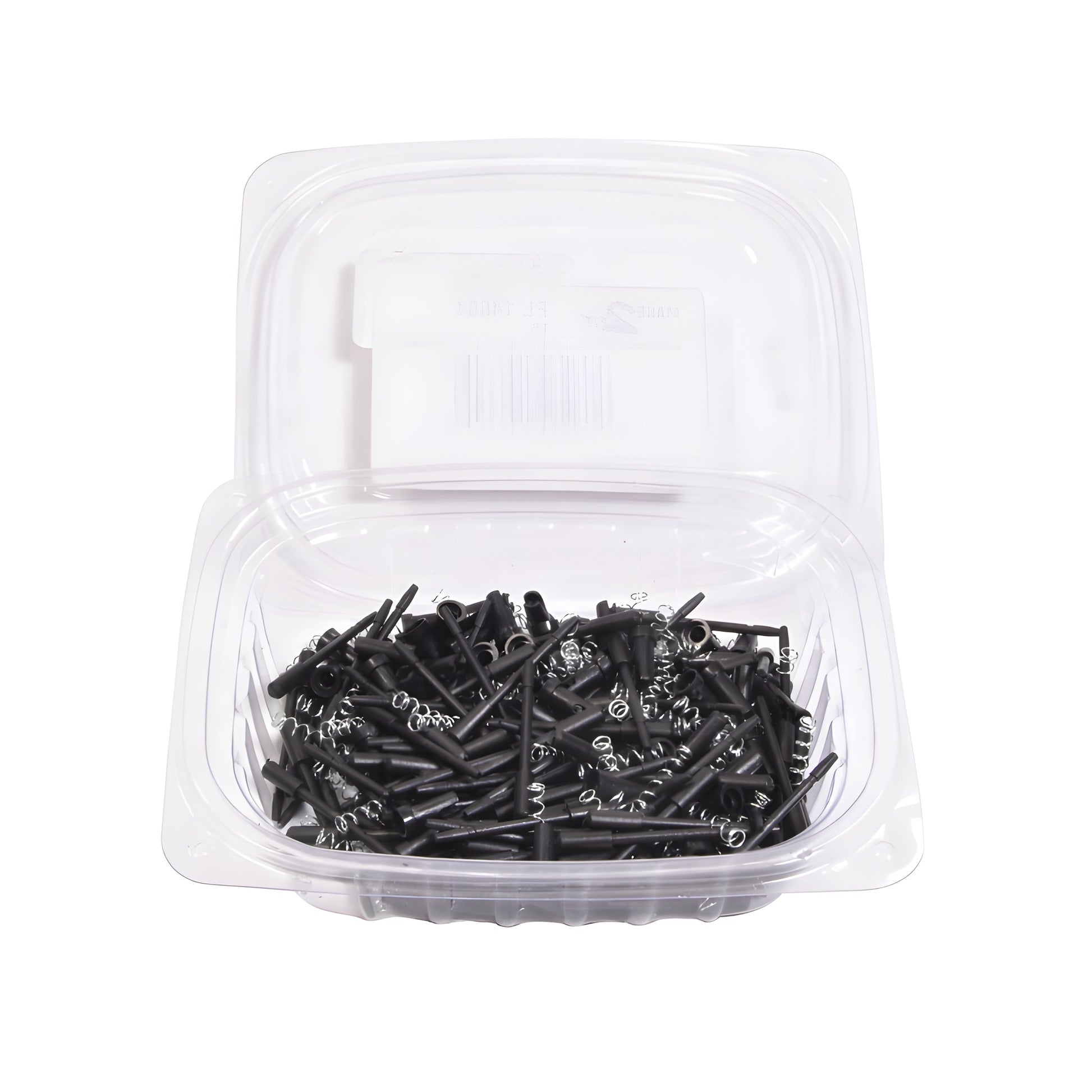

- 100 latches per bulk pack (also available in 6-pack retail)

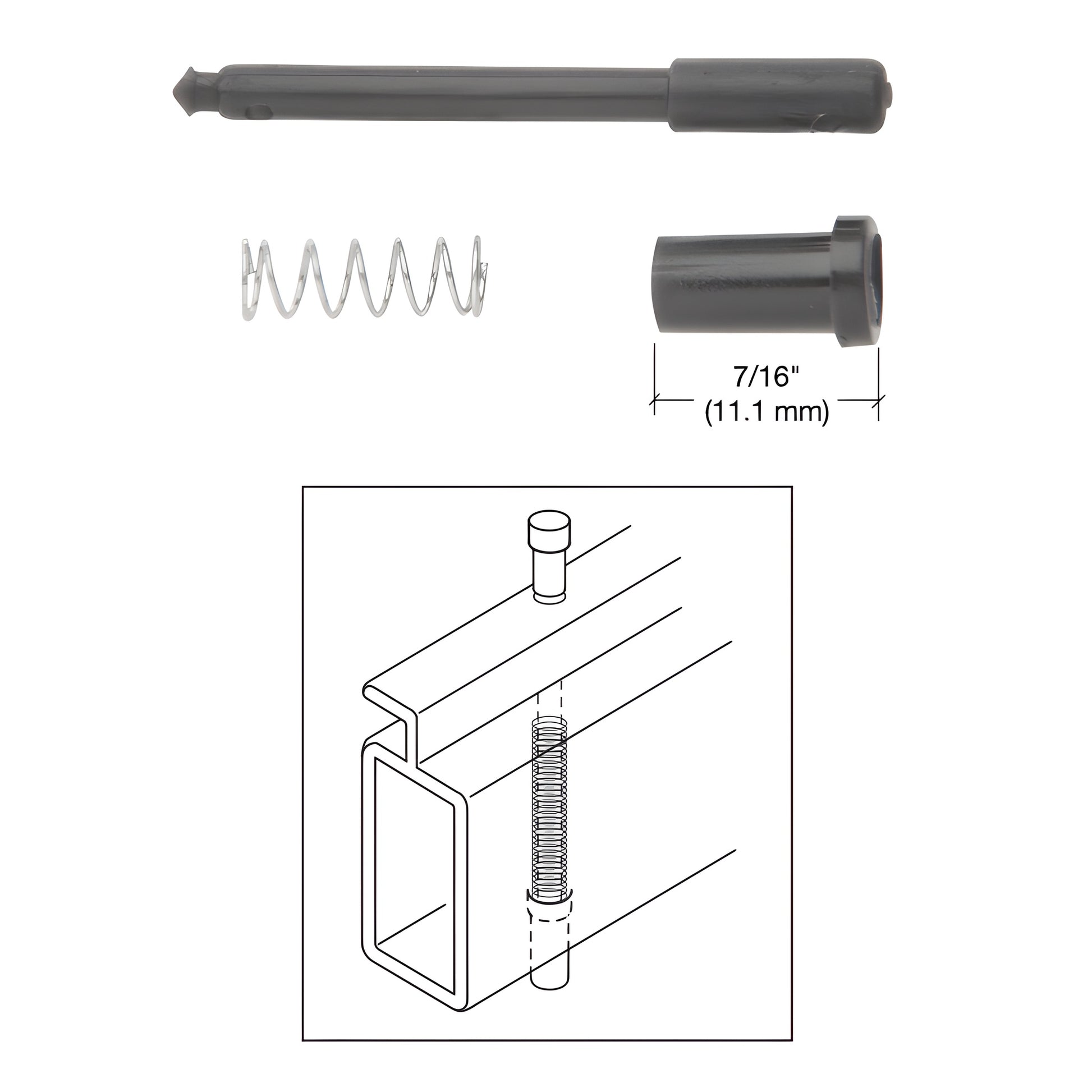

The Spring-Loaded CRL Nylon Plunger latch (SKU WSC614PK) secures metal window screens ranging from 1/4" to 7/16" (6.3–11 mm). This black, spring-loaded screen plunger latch installs into a 7/32" (5.6 mm) hole and requires two drill sizes: 1/8" (3.2 mm) and 3/16" (4.8 mm). Use CRL drill bits Cat. No. 60118 and 601316 and the WST920 jig for fast, accurate alignment. Ideal for replacement window screen latches and bulk screen repair projects.
NOTE: Use CRL Cat. No. WST905 Step Drill to install the similar WSC615 plungers. For WSC614PK, two drill bits are required: CRL Cat. No. 60118 (1/8") and 601316 (3/16").
For smaller jobs or retail sales, these screen latches are also available in a 6-latch package.
Product Warning:
Tip is no longer a "cone" shape; the tip is now flat.
Ready to order WSC614PK replacement window screen plunger latches? Add to cart or contact CRL Customer Service for bulk pricing and drill/jig recommendations.
