144 in Shower Door Header Kit - CRL Oil Rubbed Bronze Deluxe

CRL Deluxe Header Kit — SKU: SDH1440RB. Aluminum header kit for frameless glass shower doors and glass partition installations; supports 5/16" (8 mm), 3/8" (10 mm) and 1/2" (12 mm) glass.

• Available in 66" (1.67 m), 98" (2.49 m) or 144" (3.66 m) lengths

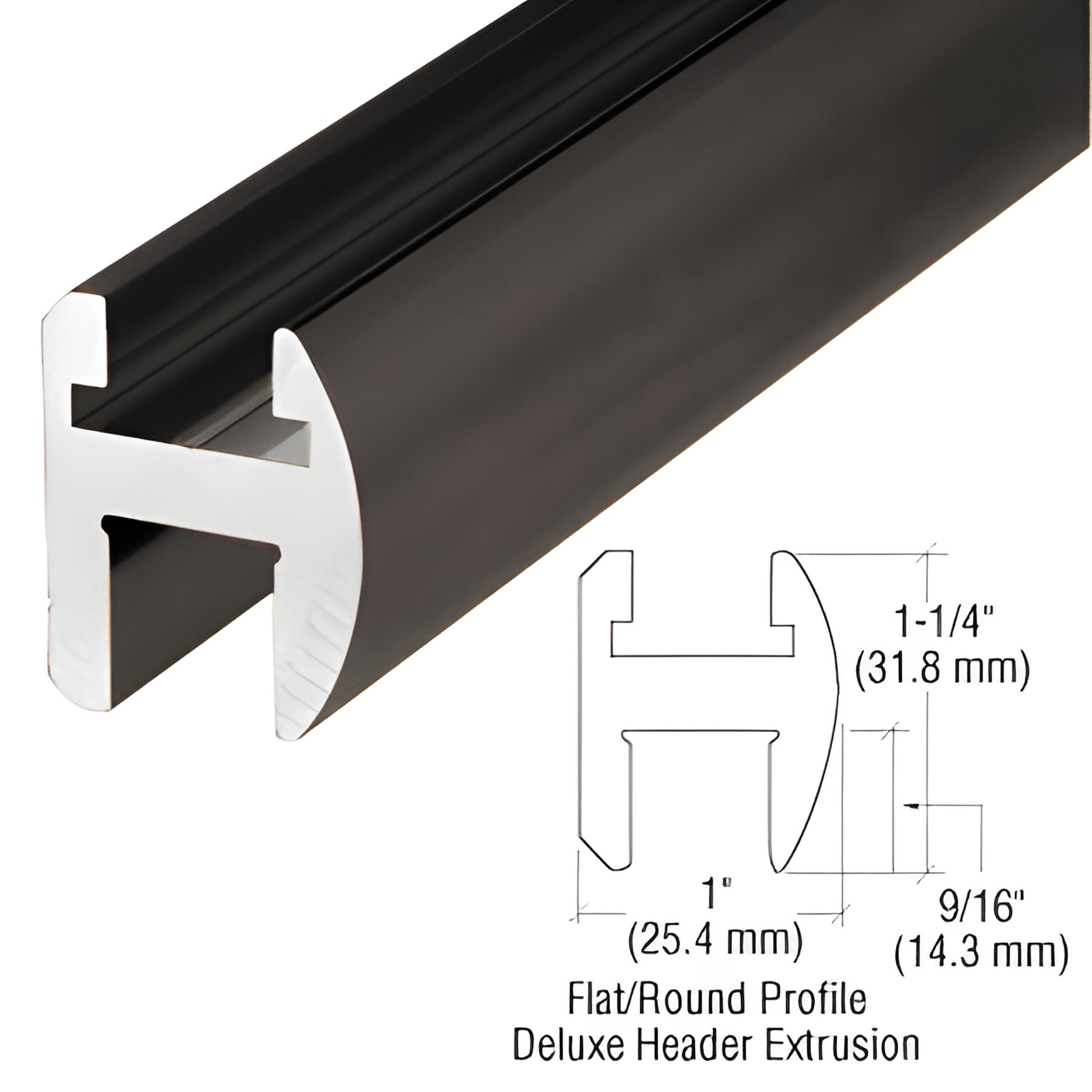

• Narrow 1-1/4" (32 mm) face on header extrusion to minimize visible sight line
• Includes brass wall mounting brackets for secure wall attachment
• Snap-in filler for door pocket simplifies on-site fabrication and a clean finish
• Clear vinyl included for 5/16" (8 mm) and 3/8" (10 mm) glass; not required for 1/2" (12 mm) glass

Deluxe Header Kits provide additional support and safety for glass panels that do not reach the ceiling. Designed for installers who prefer in-house fabrication using component parts. 90° and 135° corners, adjustable corners, and a special adapter block for pivot hinge installations are sold separately. A blank mounting bracket is available when the header does not meet the wall at 90° and standard brackets cannot be used.

This kit is adaptable to Senior Prima, Senior Cardiff, Prima, Cardiff, Rondo or Shell hinges when used with top-and-bottom mount pivot hinges.

Each deluxe header kit contains:

• One piece of header extrusion — 66", 98" or 144" (1.67 m, 2.49 m or 3.66 m)
• One 36" (0.91 m) snap-in filler for door pocket
• Clear vinyl for 5/16" (8 mm) and 3/8" (10 mm) glass
• Pack of two BWB2 brass wall mounting brackets

Note: For use with 1/4" (6 mm) glass, order Cat. No. HV140 clear vinyl separately.

Order the CRL Deluxe Header Kit (SKU: SDH1440RB) today to reinforce frameless
