CRL Oil-Rubbed Bronze Grade 1 Entrance Lever Lockset, Schlage® 6-Pin
CRL Oil-Rubbed Bronze Grade 1 Entrance Lever Lockset, Schlage® 6-Pin
Regular price
$183.26 CAD
Regular price
Sale price
$183.26 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# D60ENT0RB
Shipping Weight: 4.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 4.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Backset
2-3/4
Category
Door Accessories
Certification
ANSI A156.2 Grade 1
Clutch Feature
Yes
Door Thickness Range
1-3/8" To 1-3/4"
Door Type
Aluminum, Wood, Hollow Metal
Finish/Color
Oil Rubbed Bronze
Fire Rating Hour
3
Function
Entrance
Handing
Non Handed and Reversible
Handle Length
4-5/8
Includes
Strike
Keyway
Schlage (R) 6-Pin
Operation Type
F109 Entrance Lever
Projection
2-1/2
Rosette Base Height
11/16
Rosette Base Width
3-3/8
Strike Height
4-7/8
Strike Width
1-1/4
Type
Heavy Duty Lever Lockset
UL Listed
Yes
Overview
- Schlage® 'C' 6-Pin Keyway
- Clutch Feature (Grade 1) — prevents latch failure from excessive torque
- ANSI A156.2 Grade 1
- 3 Year Warranty
- UL Listed (3-hour fire rating)

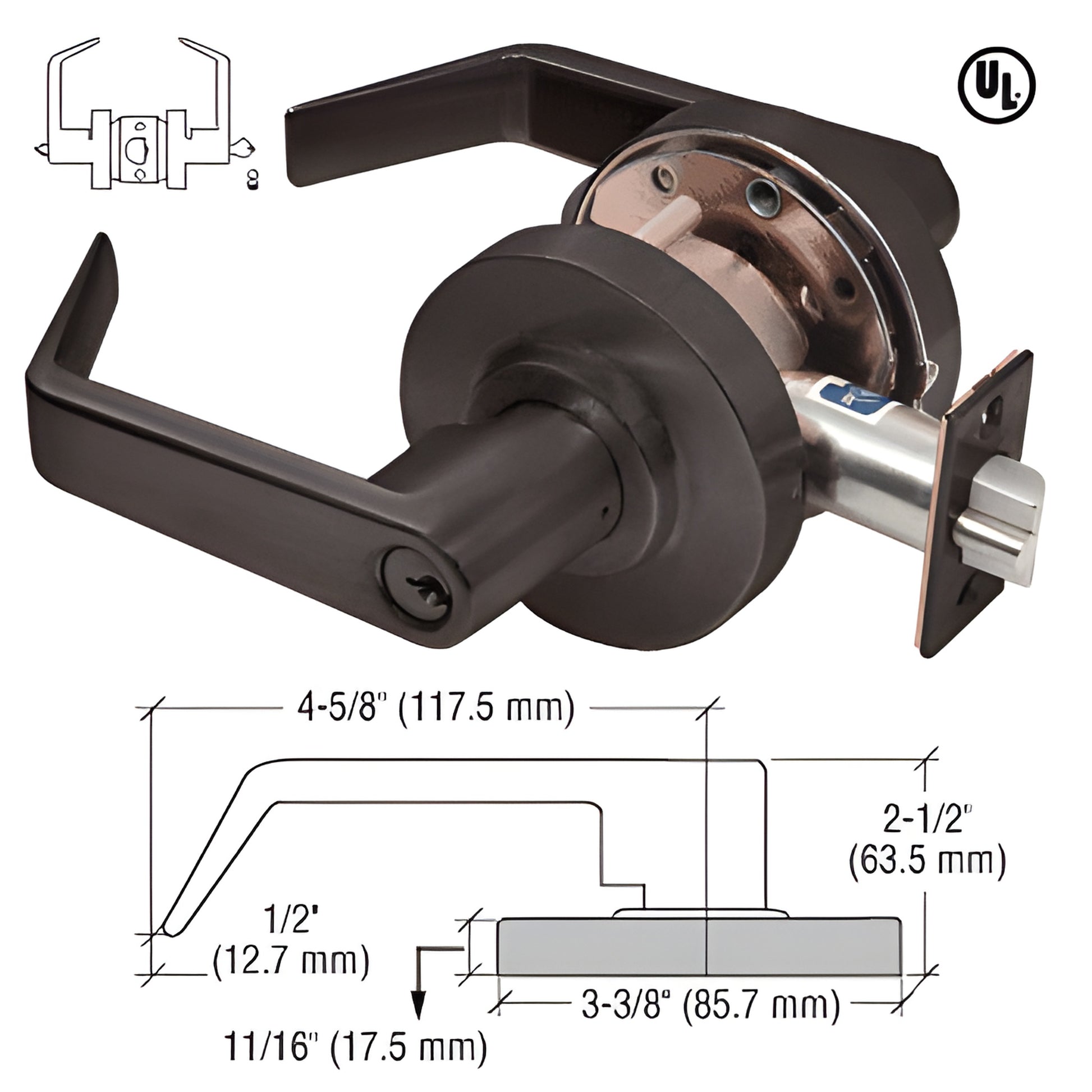

These CRL heavy-duty commercial Grade 1 and 2 lever locksets are non-handed, reversible, and include a Grade 1 clutch that disengages the outer lever when the latch is locked to resist forced-entry torque. Ideal for commercial entry doors and high-traffic applications, the locksets are UL Listed with a 3-hour fire rating and fit door thicknesses 1-3/8" to 1-3/4" (35–45 mm) with a 2-3/4" (70 mm) backset. Available with a Schlage® 'C' 6-pin keyway or 7-pin Small Format Interchangeable Core (SFIC) and include an ANSI 1-1/4" x 4-7/8" (32 x 124 mm) strike. SKU: D60ENT0RB.
Entrance function: Pushing the inside button locks the outside trim and requires a key to unlock. Pushing and twisting the button locks the outside lever and always requires a key to unlatch. The inside lever always allows free egress—meets commercial safety and code requirements for egress.
Choose this heavy-duty, UL 3-hour fire-rated commercial lever lockset for reliable security and durability—order now or contact CRL for bulk pricing and technical assistance.
