CRL Prima Oil-Rubbed Bronze Door Hinge with Rear Drip Plate

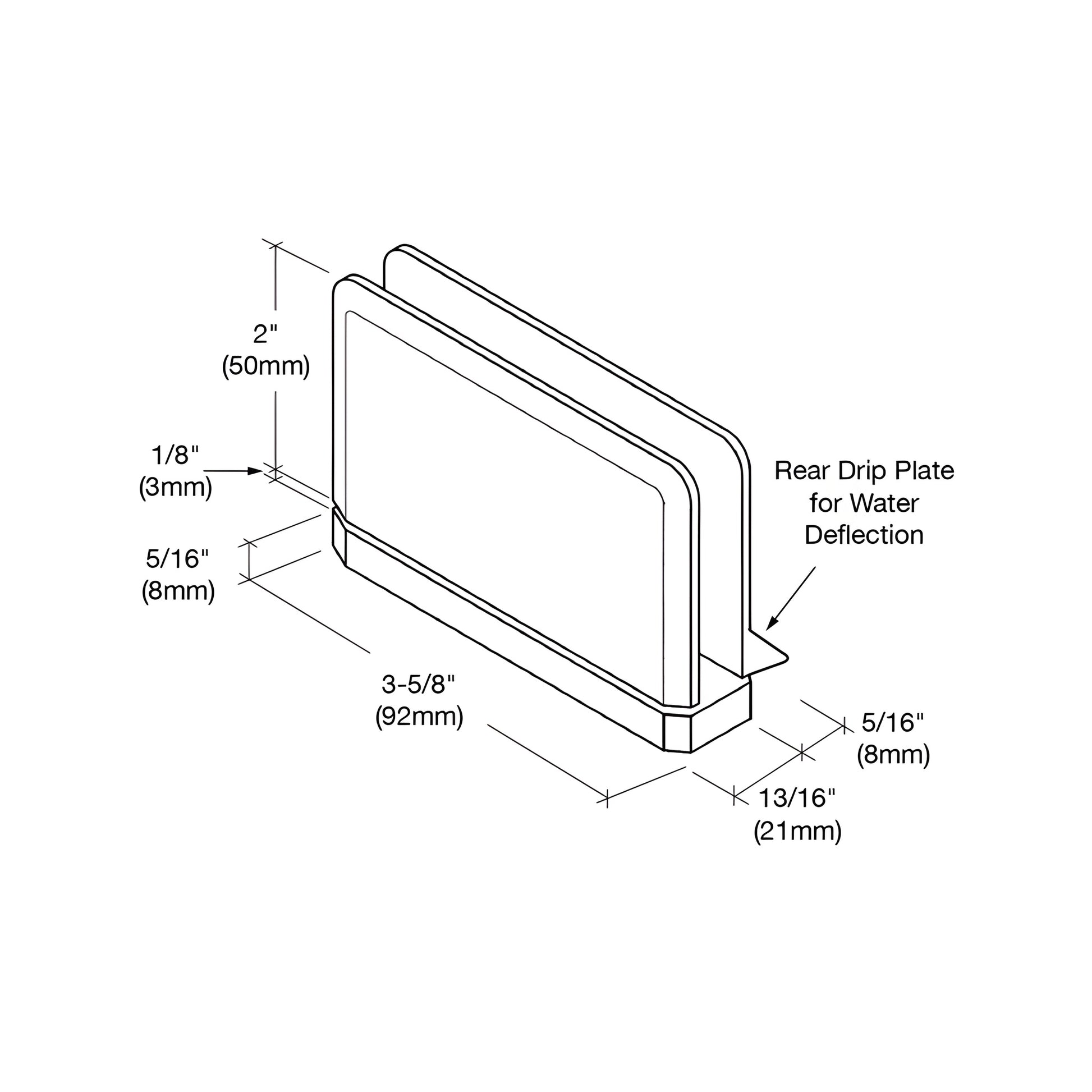

• Attractive rear drip plate deflects water back into the shower
• Drip plate does not interfere with door swing
• Designed for monolithic tempered glass
• Stocked in four popular finishes; additional finishes available by special order
• Drip plates (Cat. No. PPHWP1) sold separately in eight stock finishes

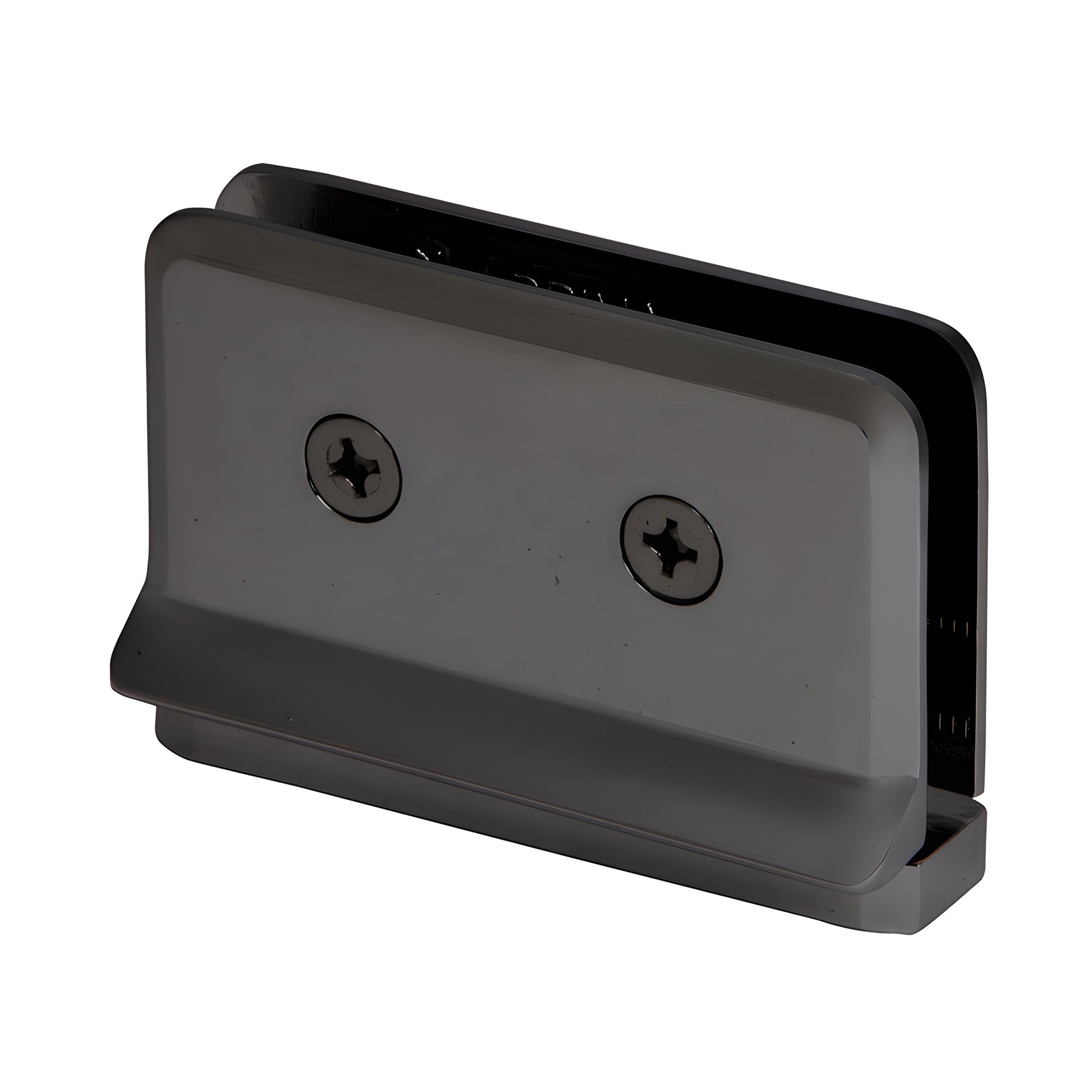

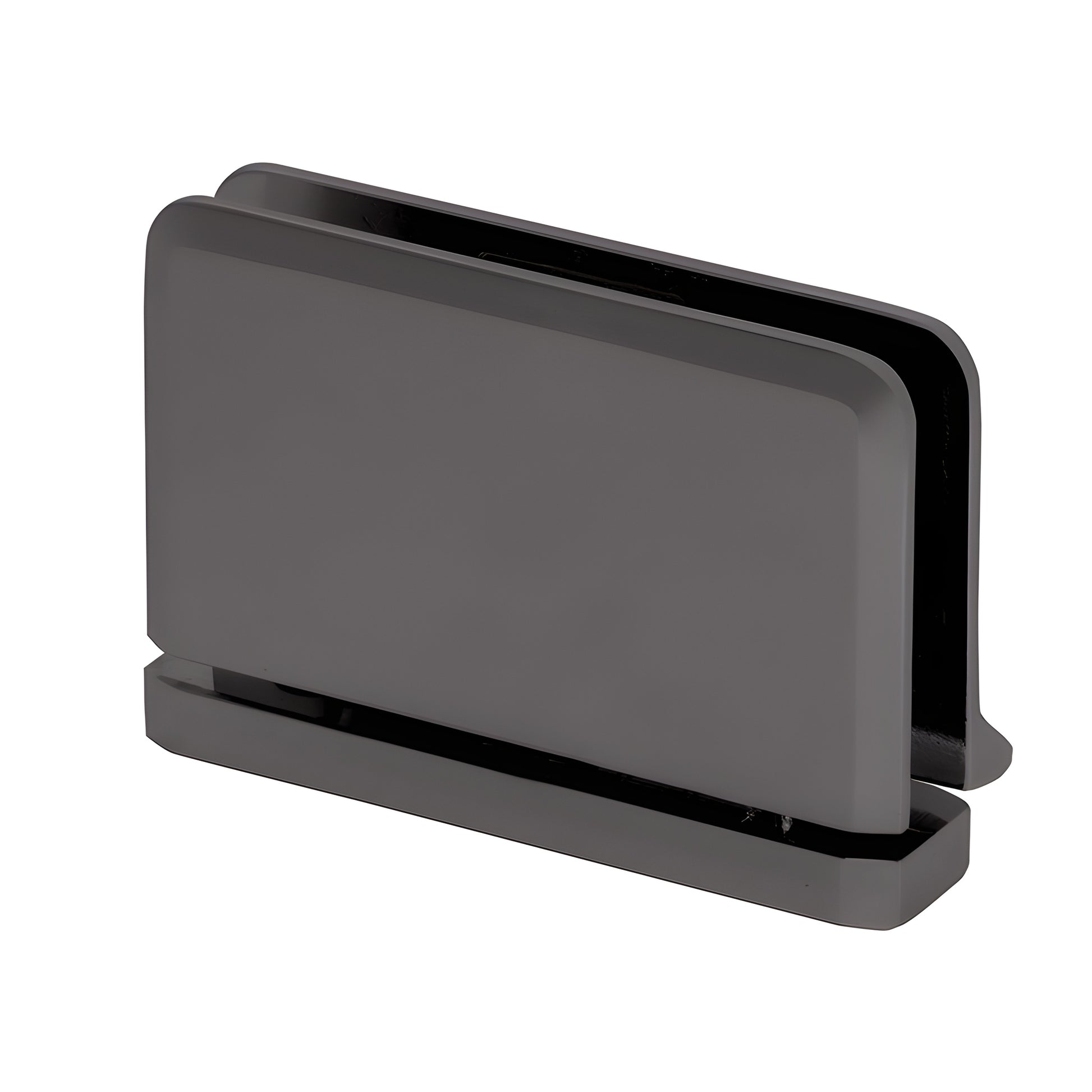

CRL Prima Hinge with Rear Drip Plate (SKU: PPH080RB)—solid brass shower door hinge engineered to minimize water leakage by directing water from the hinge gap back into the shower. The slim rear drip plate preserves full door swing and installs without affecting operation. Stocked in four popular finishes; custom and special-order finishes available. Drip plates (PPHWP1) are stocked in eight finishes for retrofit or replacement.

Optional 5° Pivot Pin Set (Prima, Cardiff, Rondo, Shell Series): Adjust door closing position by 5°. Pivot pins can be pre-installed or retrofitted. Sold as a set (top and bottom). Not included with hinge purchase. Pre-set 5° hinge models available from stock.

Capacity (two hinges): For 5/16"–3/8" (8–10 mm) tempered safety glass, the hinge supports up to 100 lbs (45 kg) per pair with a maximum door width of 31" (787 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass
Special Features: Top-and-bottom mount design shows more glass and reduces required cut-outs versus standard side-mount glass-to-glass hinges. Cat. No. PPH01 can be mounted floor-and-ceiling or floor-and-header.
Construction: Solid brass
Hinge Swings: Full rotation
Closing Type: Self-centering within 15° of closed position
Cut-Out Required: (PPH135 model also requires two holes; PPH07 model requires cut-out for hinge and hole for clamp)
Includes: Gaskets, screws, and glass fabrication dimensions
Patented: Patent No. 5,297,313

Custom finishes available on request. Contact the CRL Technical Sales Department for finish options and compatibility details.

Product Warning:
CRL shower door hinges are designed for residential and hotel shower use. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the included template—CRL cut-out dimensions may differ from other brands.
