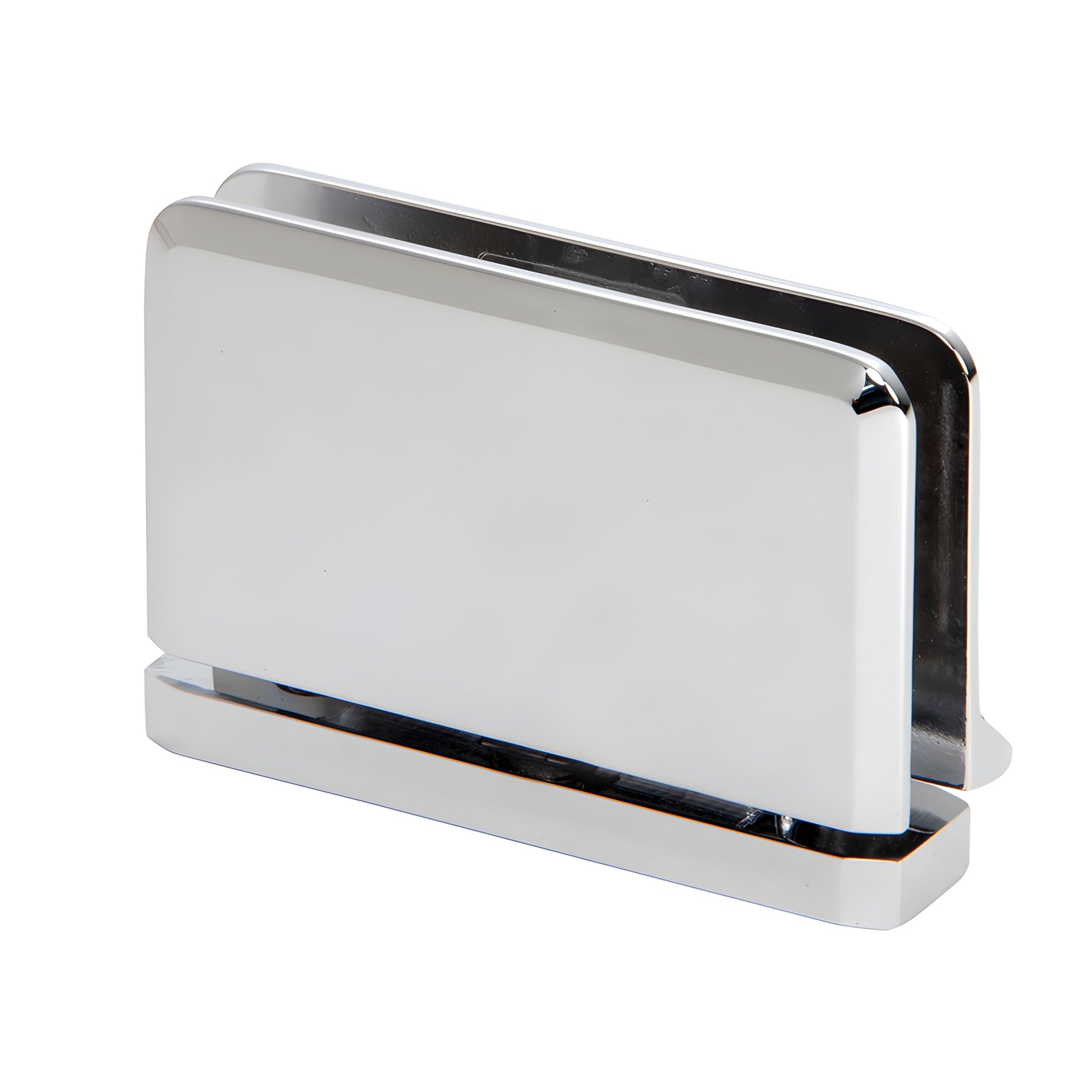

CRL Prima Polished Chrome Shower Door Hinge with Rear Drip Plate

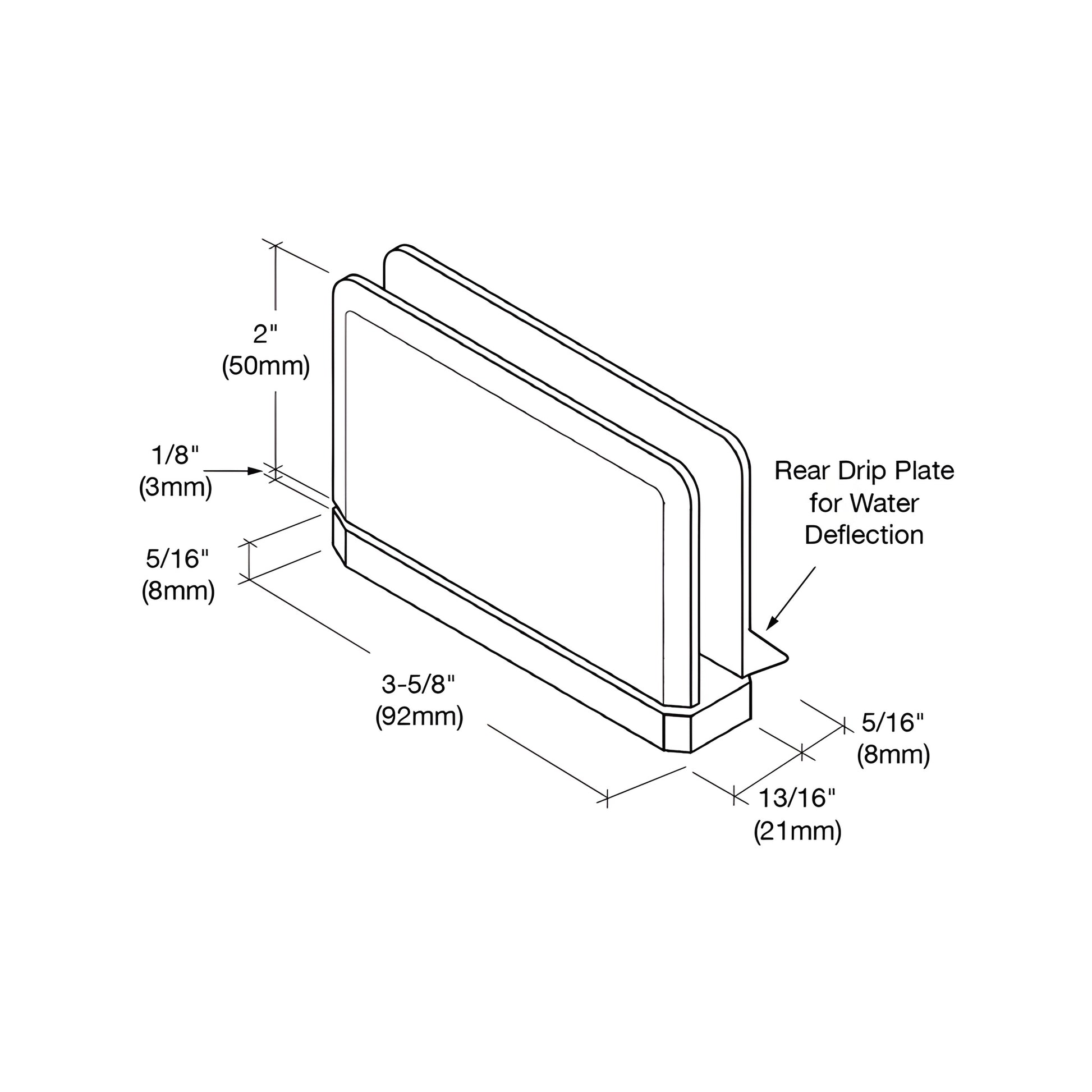

• Attractive rear drip plate deflects water back into the shower
• Drip plate does not interfere with door swing
• Designed for monolithic tempered glass
• Stocked in four popular finishes; other finishes available by special order
• Drip plates (PPHWP1) sold separately and stocked in eight finishes

The CRL Prima Hinge with Rear Drip Plate (SKU: PPH08CH) is a solid-brass shower door hinge engineered to reduce water escape at the hinge/base plate gap. The low-profile drip plate directs stray water back into the shower without affecting door swing. Ideal for tempered glass shower doors, this hinge is stocked in four popular finishes with additional custom finishes available by special order. Drip plates (PPHWP1) can be added later to existing installations and are available in eight stock finishes.

Optional 5° Pivot Pin Set (Prima, Cardiff, Rondo, Shell Series): Use the optional 5° pivot pin set to adjust the door closing position by 5°. Pins can be installed before or retrofitted after installation. Sold as a top-and-bottom set; not included with hinge. Pre-set 5° hinge models are available from stock.

Load & Glass Capacity: With two hinges and 5/16"–3/8" (8–10 mm) tempered safety glass, the hinge supports up to 100 lbs (45 kg) and a maximum door width of 31" (787 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass
Special Features: Top-and-bottom mount design maximizes visible glass and reduces the number of glass cut-outs versus standard side-mount glass-to-glass hinges. Cat. No. PPH01 can be mounted floor-to-ceiling or floor-to-header.
Construction: Solid brass
Hinge Swings: Full rotation
Closing Type: Self-centering within 15° of the closed position
Cut-Out Required: PPH135 model also requires two holes; PPH07 requires cut-out for hinge and hole for clamp
Includes: Gaskets, screws, and glass fabrication dimensions
Patent: This hinge series is patented (Patent No. 5,297,313).

Custom finishes are available on request. Contact the CRL Technical Sales Department for finish and retrofit options.

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the included template—CRL cut-out dimensions may differ from other brands.
