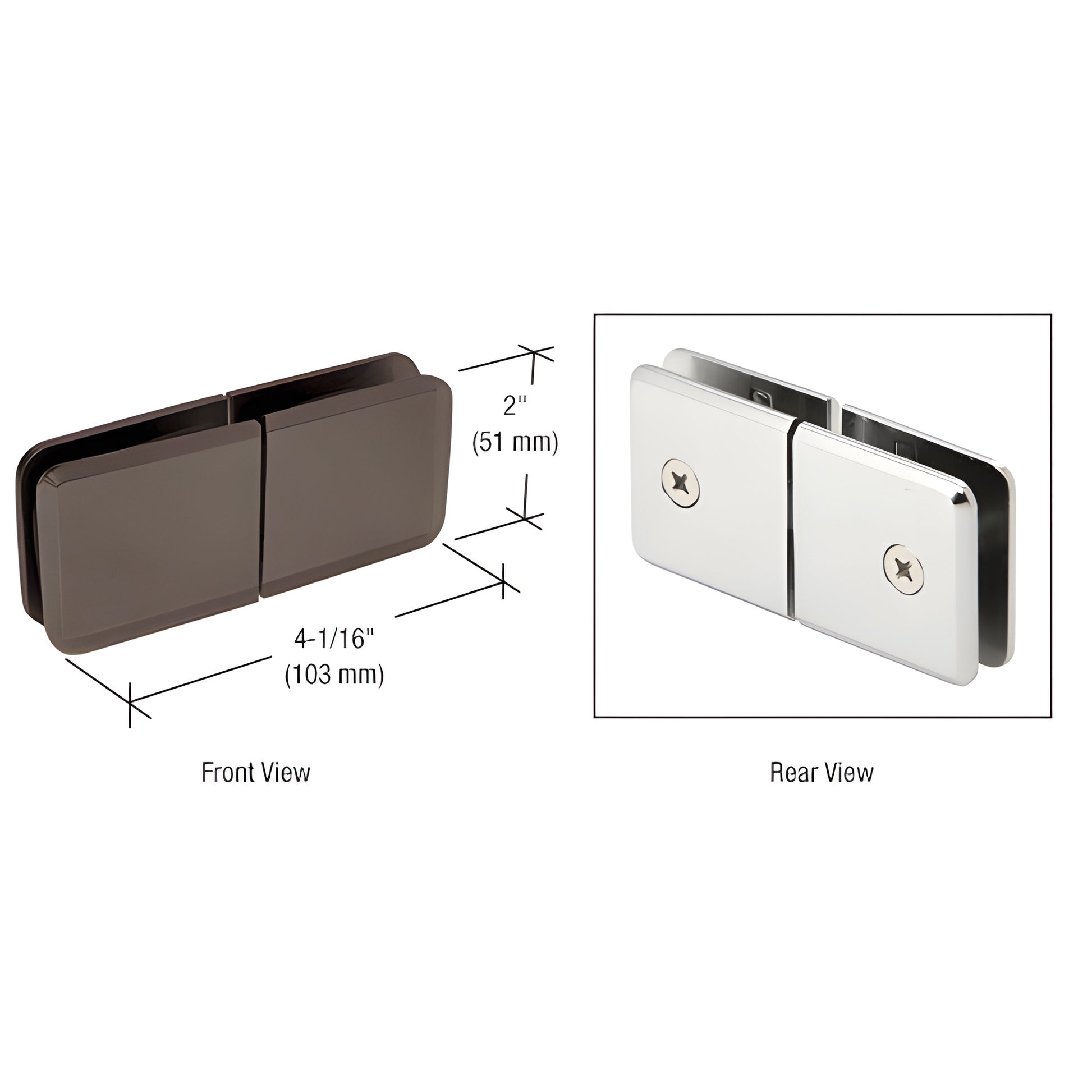

CRL Movable 180Β° Oil-Rubbed Bronze Glass-to-Glass Transom Clamp
CRL Movable 180Β° Oil-Rubbed Bronze Glass-to-Glass Transom Clamp
Regular price
$40.08 CAD
Regular price
Sale price
$40.08 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# BGC1880RB
Shipping Weight: 15.36 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 15.36 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Design Style
Beveled
Enclosure Type
Niche, Tailor Made Solutions
Finish/Color
Oil Rubbed Bronze
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)
Material
Brass
Mounting Type
Glass To Glass
Overview
- For 3/8" to 1/2" (10 to 12 mm) thick tempered glass
- Glass transom swivels to release steam β 180Β° rotation for ventilation
- Wall mount and 180ΒΊ glass-to-glass models available
- Solid brass construction for corrosion resistance and durability
- Designed for use with monolithic tempered glass
CRL Beveled 180ΒΊ Glass-to-Glass Movable Transom Clamps (SKU: BGC1880RB) allow rotation of a movable transom away from an inline fixed glass panel for ventilation and access. Ideal as a movable transom clamp for glass shower enclosures and commercial glass partitions. Can be used with Cat No. BGC186 wall-mount movable transom clamp for alternate mounting configurations. Clamp must be centered on the transom to achieve balanced movement.
Replacement parts: Cat. Nos. 90295A120 (nylon washer), 211039 (10-32 x 3/4" flat head Phillips screw), 193004 (10-32 nylon lock nut), and BGCU1G (gasket).
NOTE: Maximum transom size is 16" x 30" (406 x 762 mm). Larger transoms require pivot hinges used as transom clamps β call CRL for details.
SPECIFICATIONS:
Materials: Solid brass
Glass thickness range: 3/8" to 1/2" (10 to 12 mm)
Glass fabrication required: BGC180, BGC135, BGC90, and BGC186 require 3/4" (19 mm) holes; BGC188 requires a 3/4" (19 mm) hole in the fixed panel and a notch in the transom
Includes: Gaskets
Order the BGC1880RB beveled 180ΒΊ glass-to-glass movable transom clamp for durable, corrosion-resistant brass performance β contact CRL to buy or request a quote.
