CRL Custom Painted Aluminum Narrow Inset Interior Glazed Window

• Narrow inset frame vision window with surround sound for natural voice transmission
• Drawings and specifications available online

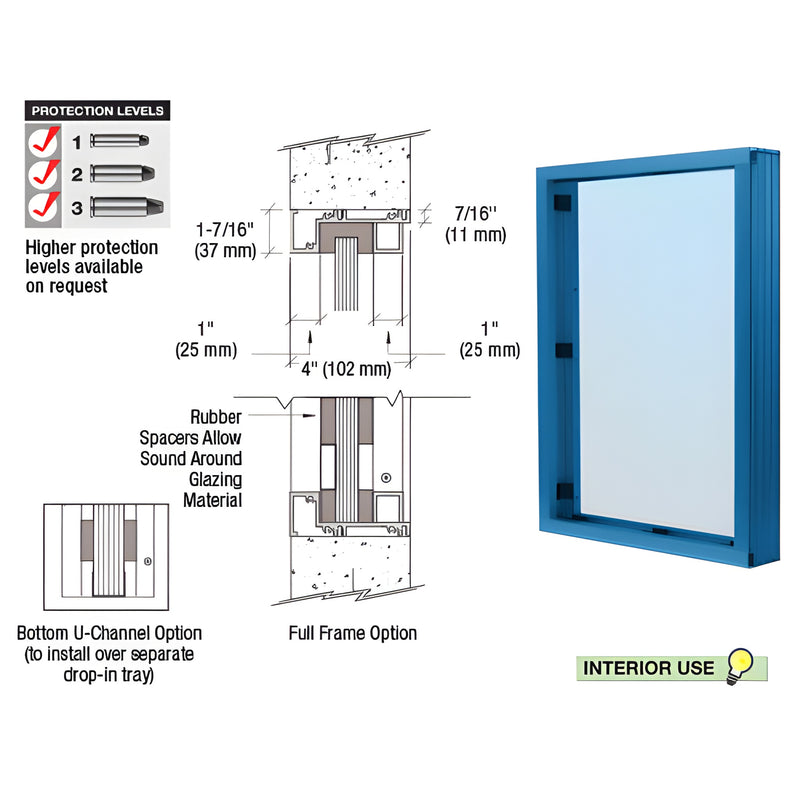

CRL Narrow Inset Frame Vision Windows with surround sound permit natural voice transmission without a separate speak‑thru device. Designed for interior walls 4" (102 mm) or thicker, these non‑weathertight frames are uniform on all four sides and are typically installed above built‑in exchange drawers or as sidelites in multi‑lite exchange window units. The frame requires removal of glazing and spacer blocks to secure to the wall. Can be ordered with U‑Channel only under glazing to allow access to drop‑in deal trays. SKU: N1V1P.

Key differentiators:

• Built‑in surround sound for clear, natural voice transmission—no separate speak‑thru required
• Uniform four‑side narrow inset frame for clean interior installations above transaction counters
• Multiple glazing options for specified security levels and impact resistance

SPECIFICATIONS:
Materials: Glazing — 1/4" (6 mm) Glass; 1-5/16" (33 mm) Level 1 Glass; 1-1/4" (32 mm) Level 1 Acrylic; 3/4" (19 mm) Level 1 Lexgard®; 1" (25 mm) Level 2 Lexgard®; 1-3/16" (30 mm) Level 3 Glass Clad Polycarbonate; 1-1/4" (32 mm) Level 3 Lexgard®.
Finishes: Frame — Satin Anodized, Duranodic Bronze, RAL powder paint colors, or custom KYNAR® paint colors.
Instructions included

Product Warning:

CRL recommends a maximum width of 36" (914 mm) when surround sound is used.

For drawings, detailed specs, or to order SKU N1V1P, view online documentation or contact CRL Customer Service. Request a
