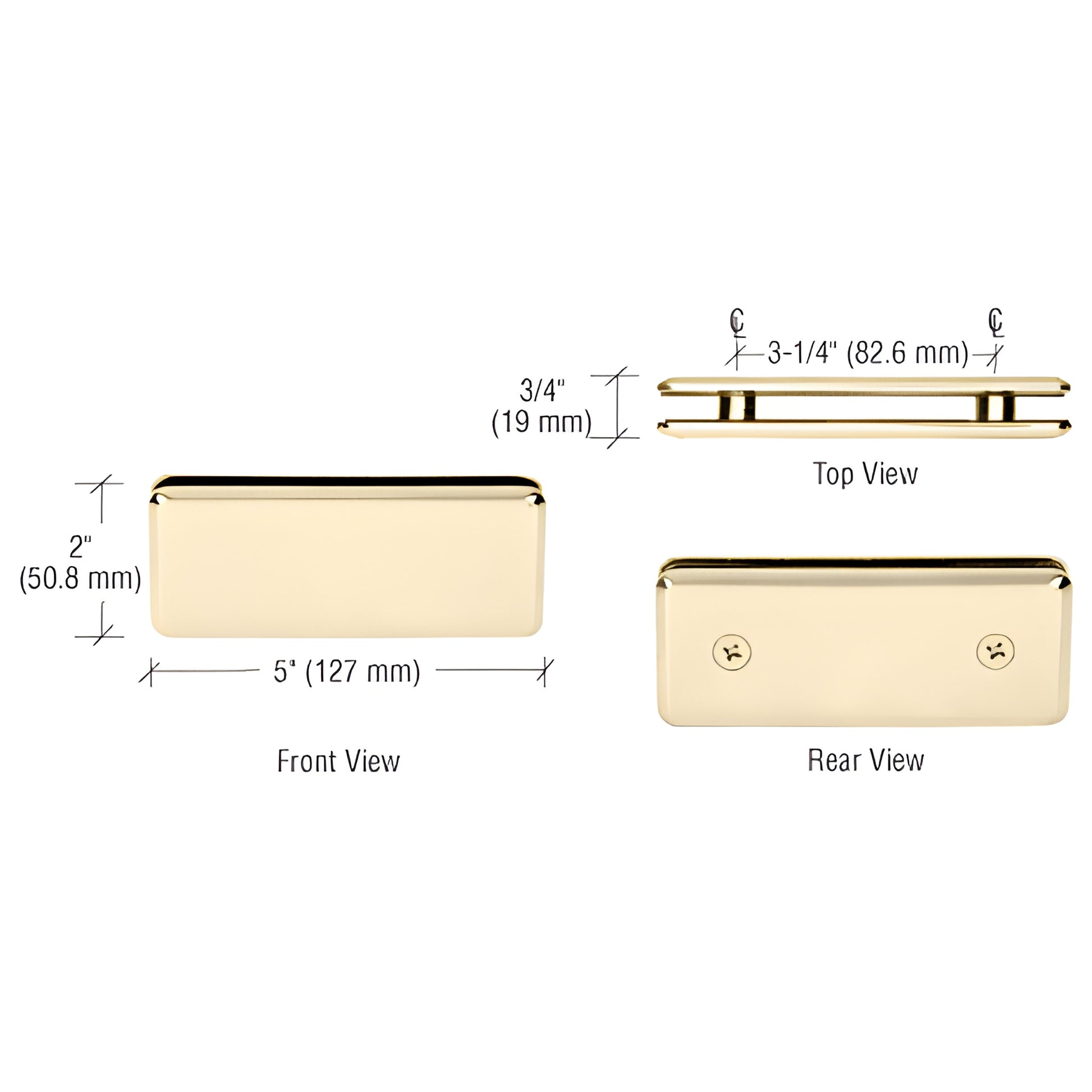

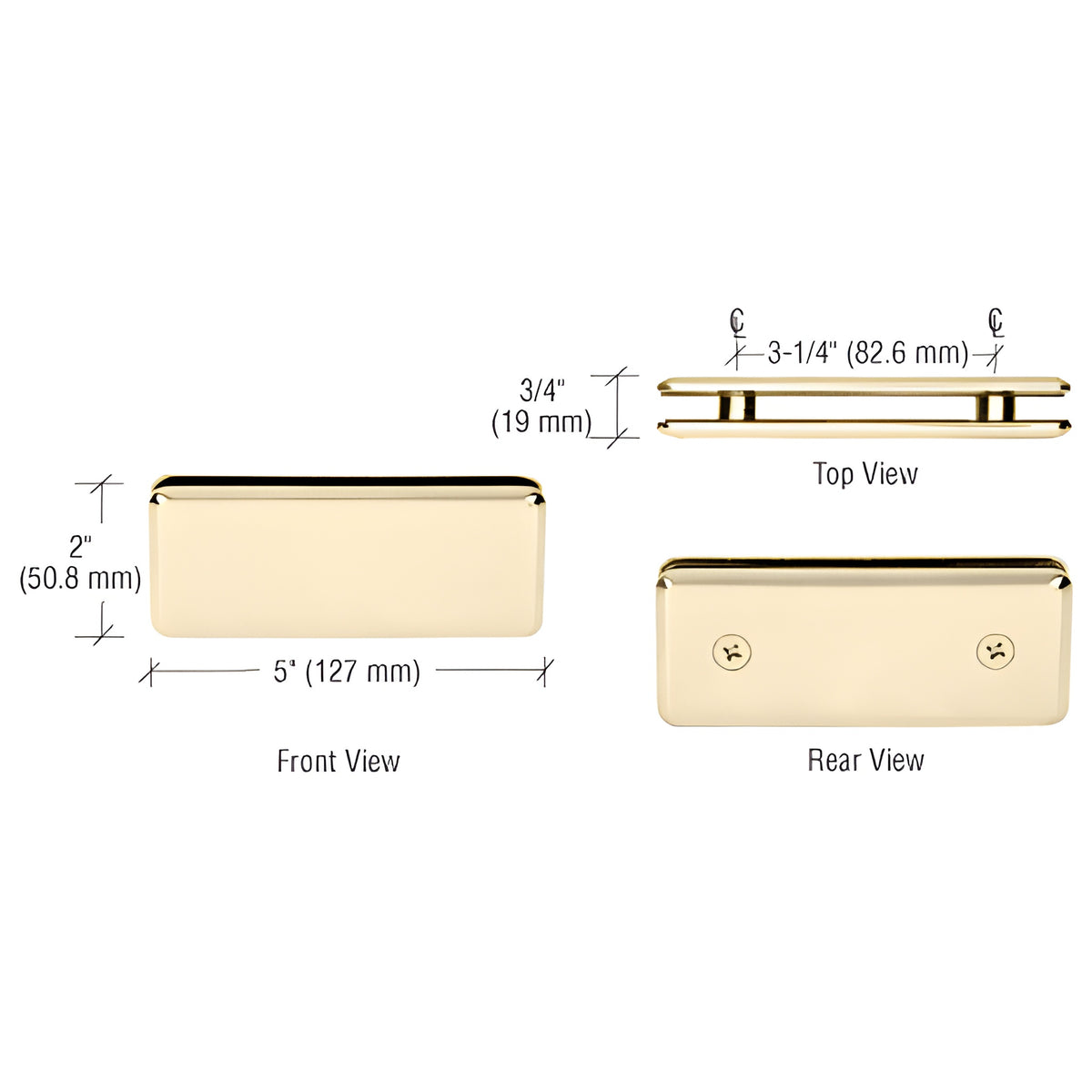

CRL Polished Brass Beveled 180º Glass-to-Glass Clamp
Item # BGC180BR
$58.35
CAD
Finish (9)
Overview
| SKU | BGC180BR |
|---|---|
| Sold As | 1 Each |
| Design Style | Beveled |
| Enclosure Type | Tailor Made Solutions |
| Finish/Color | Polished Brass |
| Glass To Glass Angle | 180 |
| Glazing Thickness | 3/8 in. To 1/2 in. (10 mm To 12 mm) |
| Material | Brass |
| Mounting Type | Glass To Glass |
Description
- For 3/8" to 1/2" (10 to 12 mm) Thick Glass
- Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
- Solid Brass
- A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
- Glass Fabrication Required to Accommodate Clamps
- Use Monolithic Tempered Glass
CRL's Beveled 180º Glass-to-Glass Clamps have attractive beveled edges, and are used to connect two fixed 5/16" to 1/2" (8 to 12 mm) glass fixed transom or inline panel installations in frameless shower enclosures. They feature solid brass construction and a variety of finishes to match our complete line of door hinges and clamps. These clamps are typically used in custom wall partitions, transoms, showcases, trophy cases, and 'all-glass' enclosures. They will instantly add a look of quality to the appearance of your project. Drawings and templates for all Clamps are available.
SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (3 to 12 mm)
Glass Fabrication Required: BGC180, BGC135, BGC90, and BGC186 Require 3/4" (19 mm) Holes; BGC188 Requires a 3/4" (19 mm) Hole in the Fixed Panel and a Notch in the Transom
Includes: Gaskets
Brass Finish Advisory:
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.Specifications
Brochures & Literature
Quote Request Forms
Templates
CAD Drawings - pdf
CAD Drawings - dwg
Cleaning & Maintenance
