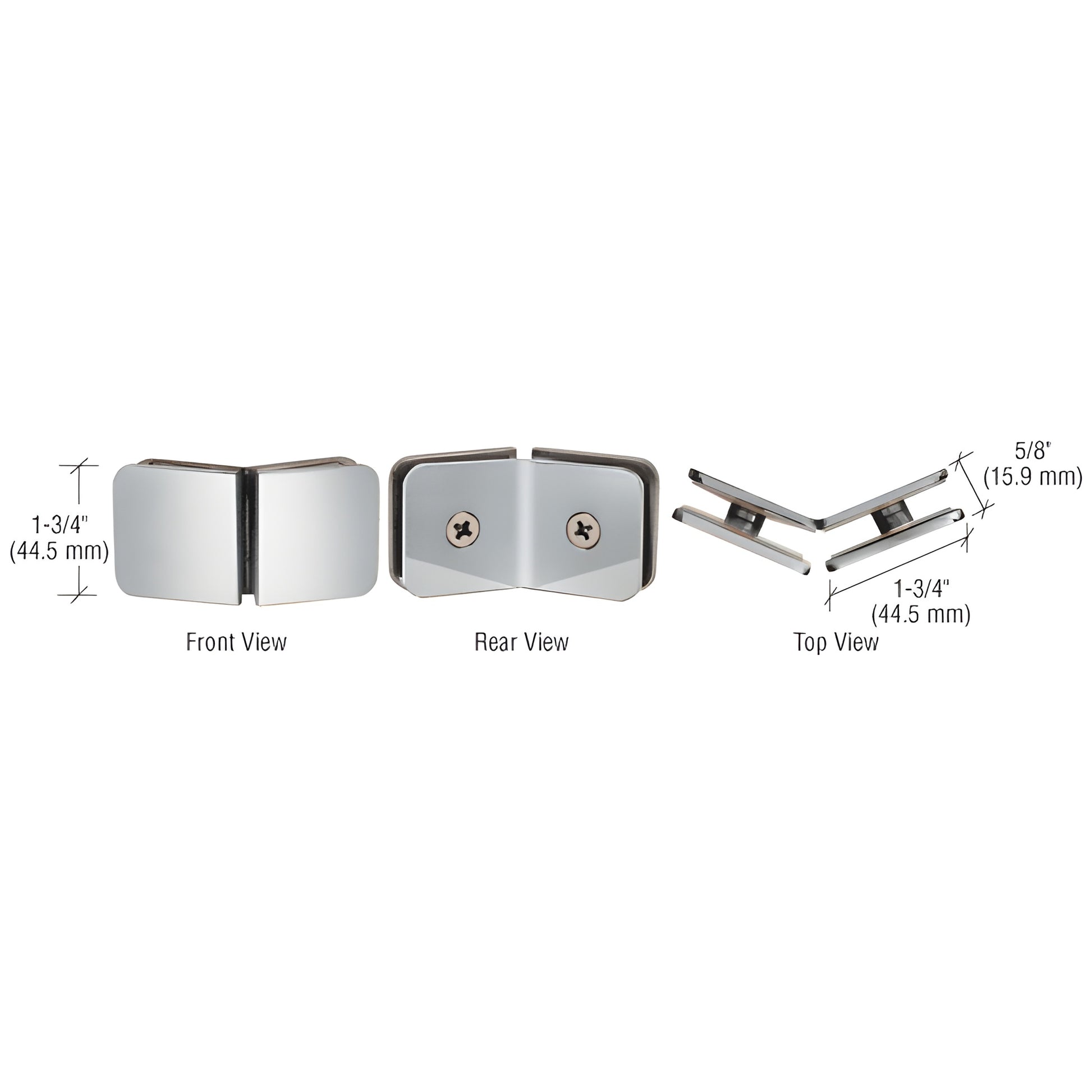

CRL 135° Polished Chrome Glass-to-Glass Clamp for Shower Door
CRL 135° Polished Chrome Glass-to-Glass Clamp for Shower Door
Regular price
$43.33 CAD
Regular price
Sale price
$43.33 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# GCB135CH
Shipping Weight: 8.448 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 8.448 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Chrome
Glass To Glass Angle
135
Glazing Thickness
5/16 in. To 1/2 in. (8 mm To 12 mm)
Material
Brass
Mounting Type
Glass To Glass
Series
Traditional
Overview
- Fits 5/16" to 1/2" (8 to 12 mm) thick glass
- Secures fixed glass panels meeting at a 135° angle (for frameless shower enclosures)
- Solid brass construction with finishes to match shower door hinges
- Cleaner, all-glass appearance alternative to traditional U-channel
- Requires glass fabrication and monolithic tempered glass
- Appropriate mounting screws and one set of clear gaskets included
These CRL Standard 135 Degree Glass Clamps (SKU: GCB135CH) are designed to clamp 5/16" to 1/2" (8 to 12 mm) tempered glass panels that meet at a 135° angle. Ideal for frameless shower enclosures, these solid brass 135° glass clamps provide a polished, "all-glass" look as an attractive alternative to U-channel installations.
Our traditional solid brass clamps are available in finishes that coordinate with the complete CRL line of shower door hinges. Each clamp ships with mounting screws and one set of clear gaskets; extra clear gaskets (Cat. No. UCG77) are available separately for 5/16" (8 mm) glass.
SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 5/16" to 1/2" (8 to 12 mm)
Hole Diameter Required: 5/8" or 3/4" (16 or 19 mm) per panel
Includes: One set of clear gaskets and mounting screws
NOTE: An additional set of gaskets is required for 5/16" (8 mm) glass (Cat. No. UCG77).
Order the GCB135CH solid brass 135° glass clamps for a clean frameless shower finish — add to cart or contact CRL for quantity pricing and technical help.
