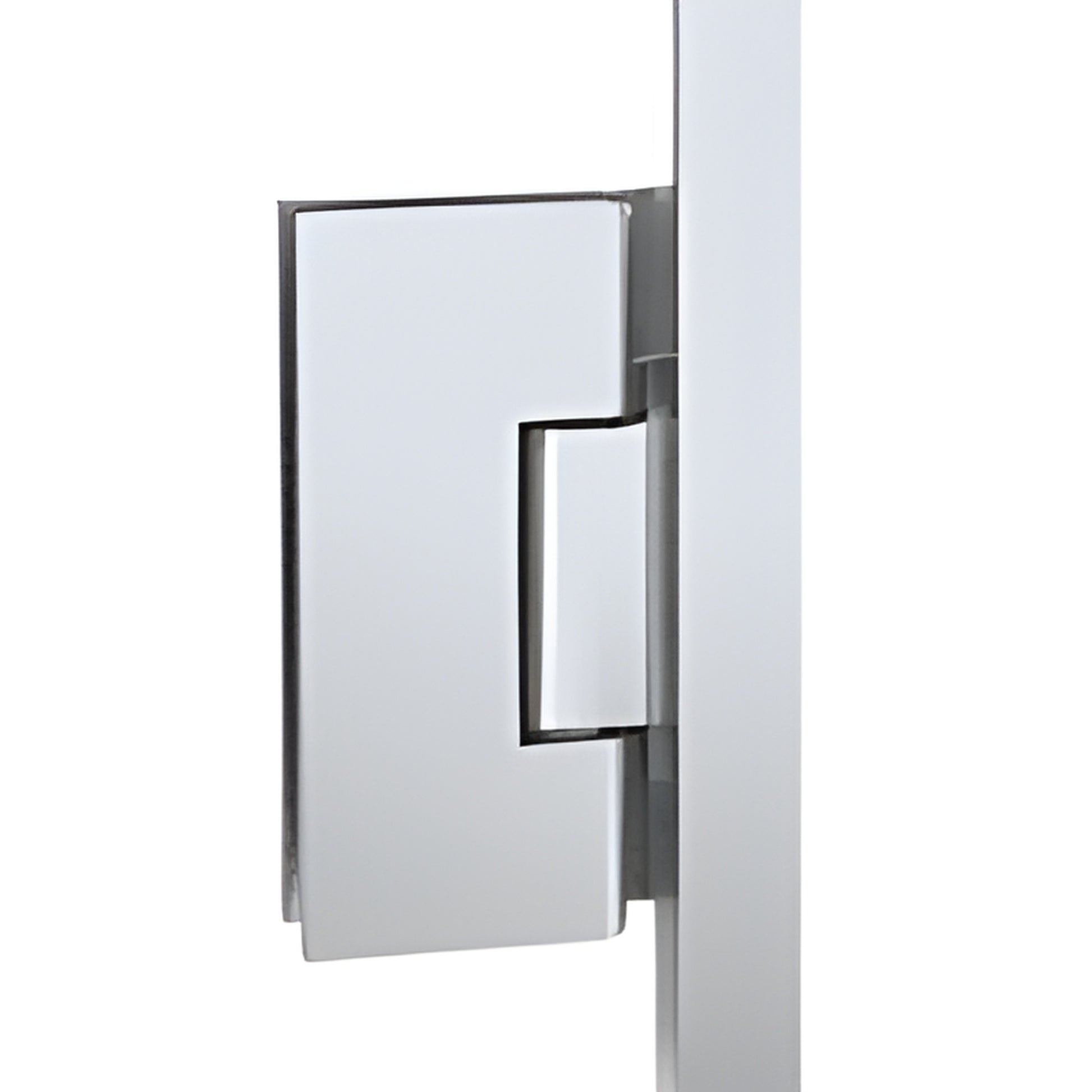

• Polished chrome Vienna series heavy-duty frameless shower door hinge (72") SKU V1E03372CH
1 1

CRL

CRL 72 in Polished Chrome Vienna Door Hinge Kit

CRL 72 in Polished Chrome Vienna Door Hinge Kit

$766.65 CAD
$766.65 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# V1E03372CH
Shipping Weight: 9.5 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Polished Chrome
Glazing Thickness
72 in. (1829 mm)
Length
72 in. (1829 mm)
Material
Aluminum
Maximum Clamping Screw Torque
60 lbf.in (677.9 cN.m)
Maximum Door Weight
100 lbs. (45.4 kg)
Maximum Door Width - 1/2 Glass
30 in. (762 mm)
Maximum Door Width - 3/8 Glass
36 in. (914 mm)
Mounting Type
Wall Mount
Self-Centering
Yes
Series
Vienna

Overview

  • 72" (1.83 m) High Vienna Series kit for frameless shower doors (SKU: V1E03372CH)
  • Includes heavy-duty hinges, aluminum extrusion and vinyl seal for a complete installation
  • Hinge kit fits 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass
  • 5° hinge pins ensure positive closure for a water-resistant seal at both sides and bottom
  • Self-centering from 15° for reliable door alignment and smooth operation

CRL Heavy-Duty Kits include bottom sweeps for both 3/8" (10 mm) and 1/2" (12 mm) glass. Kits are reversible and can be mounted with the hinge on the left or right when viewed from inside the shower. Install so the door swings outward for proper sealing and code compliance.

NOTE: 3/8" glass — maximum door width 36" (914 mm); max weight 100 lbs (45 kg). 1/2" glass — maximum door width 30" (762 mm); max weight 100 lbs (45 kg).

Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, contact CRL Customer Service before ordering. Product images show the actual product or a close representation; colors may vary by monitor.


Shop now to get the Vienna Series heavy-duty shower door hinge kit for a durable, water-resistant frameless shower installation.
