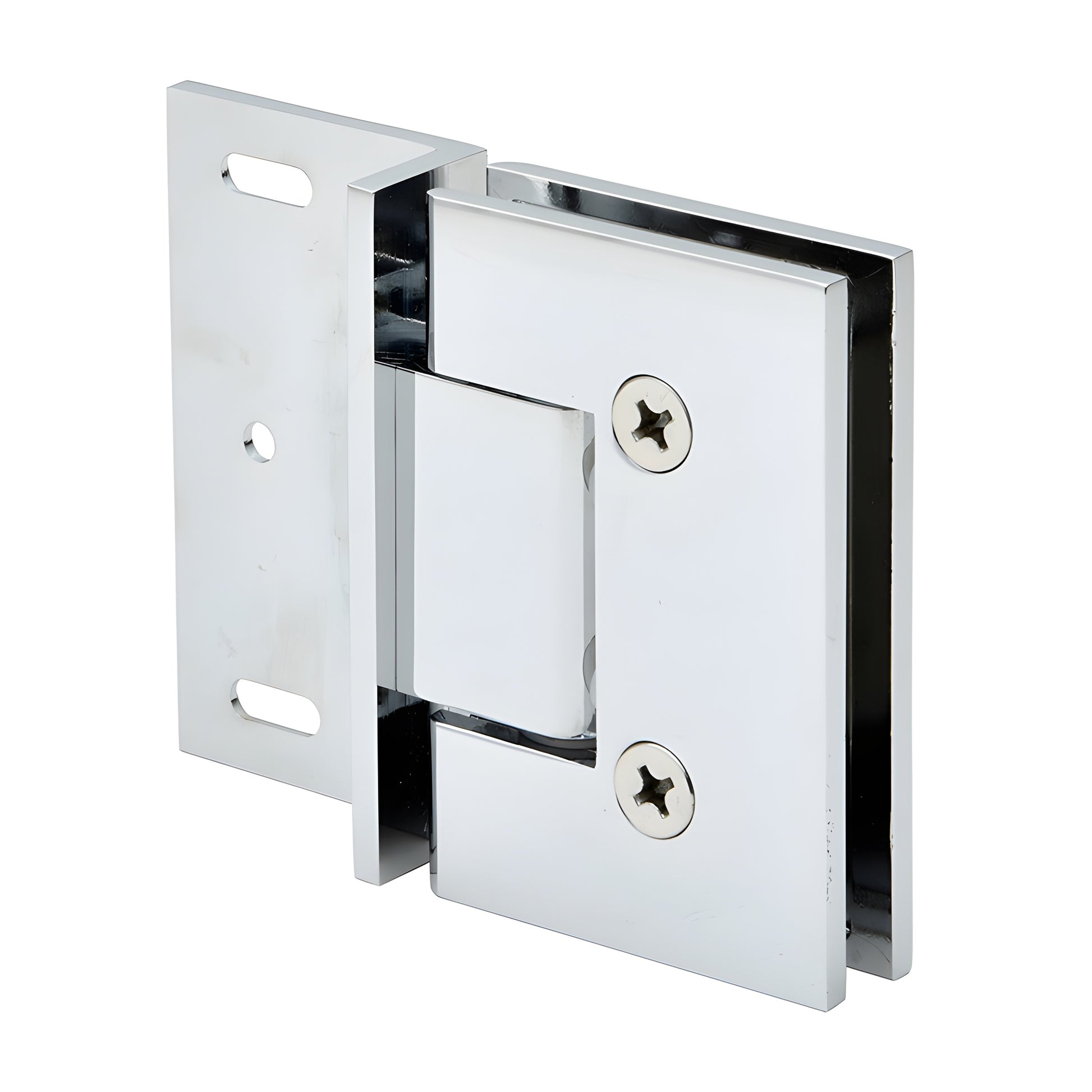

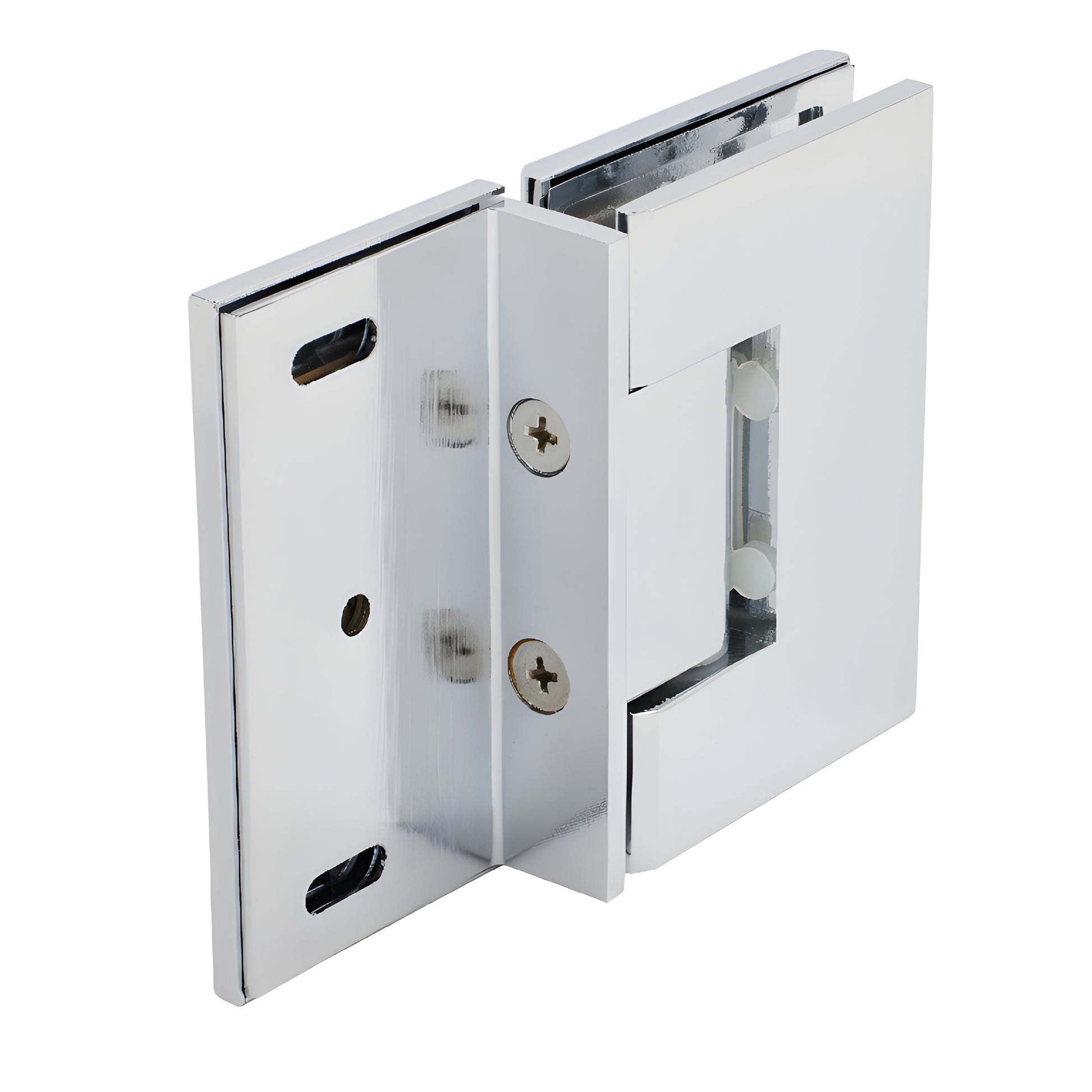

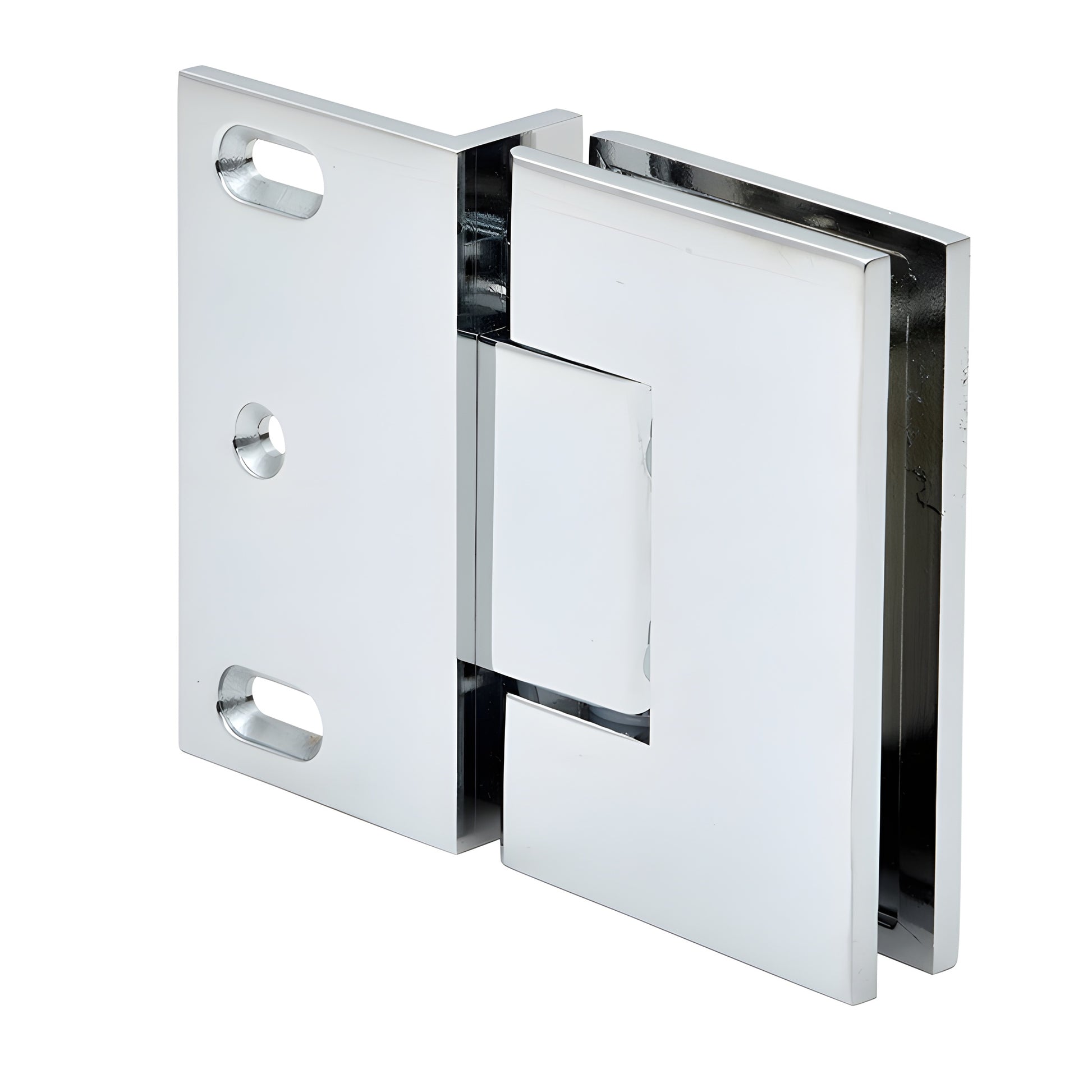

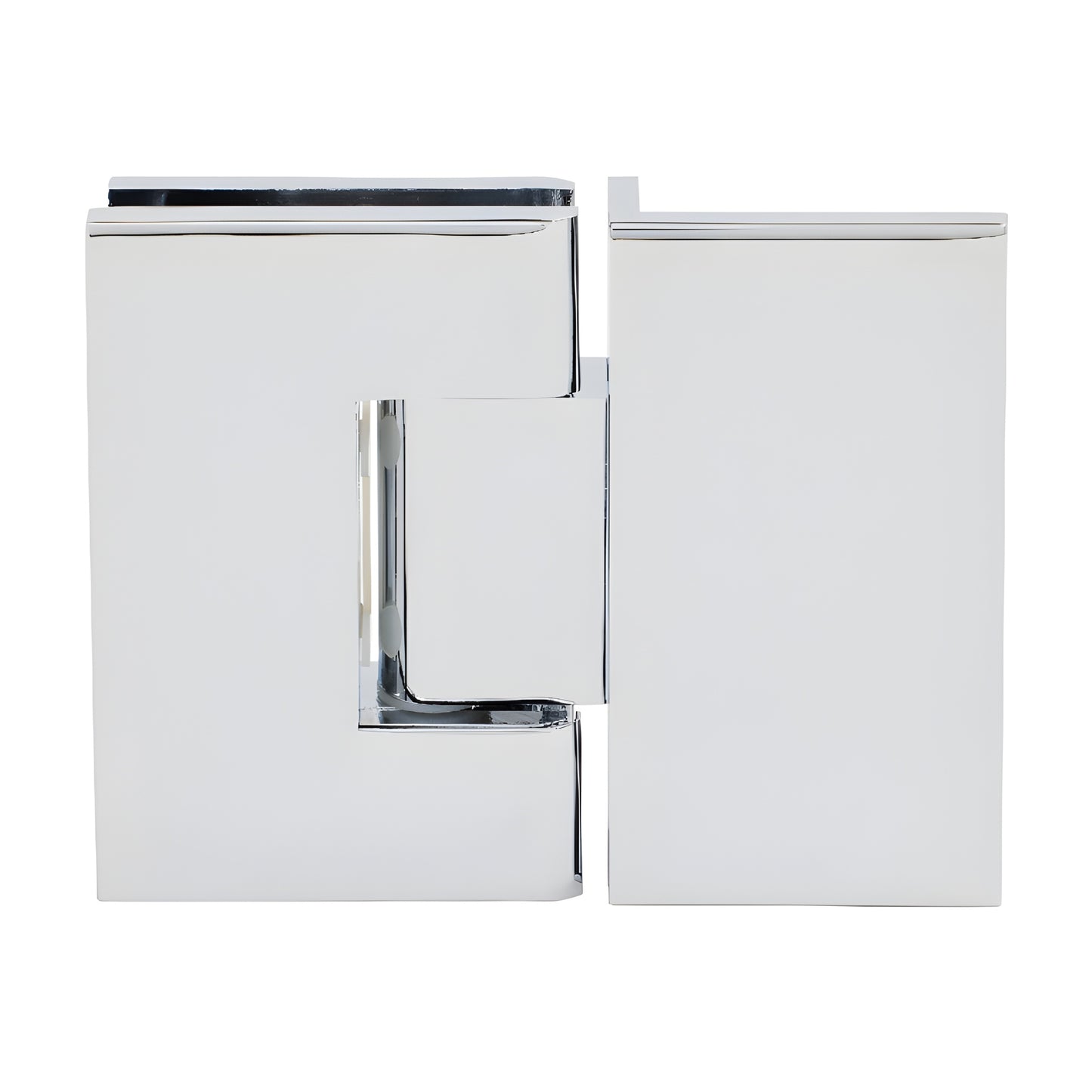

CRL Polished Chrome Melbourne Face-Mount Shower Hinge w/ Cover Plate

• Large hinge plates provide increased clamping force for secure installation
• Simple rectangular cut-out for easy tempered glass fabrication
• Compatible with 1/2", 3/8", and 5/16" (12, 10, 8 mm) tempered safety glass
• Stocked in three popular finishes; custom finishes available

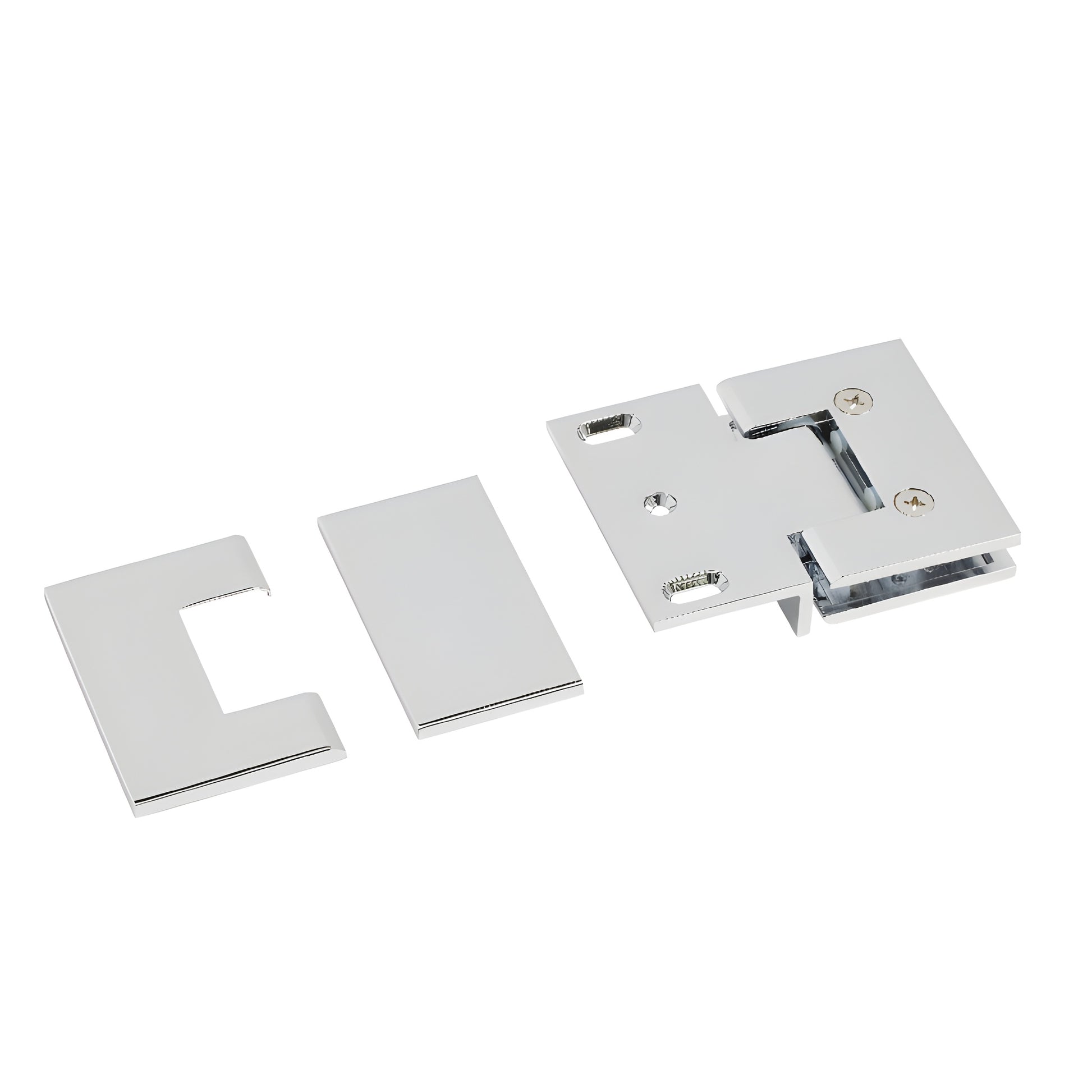

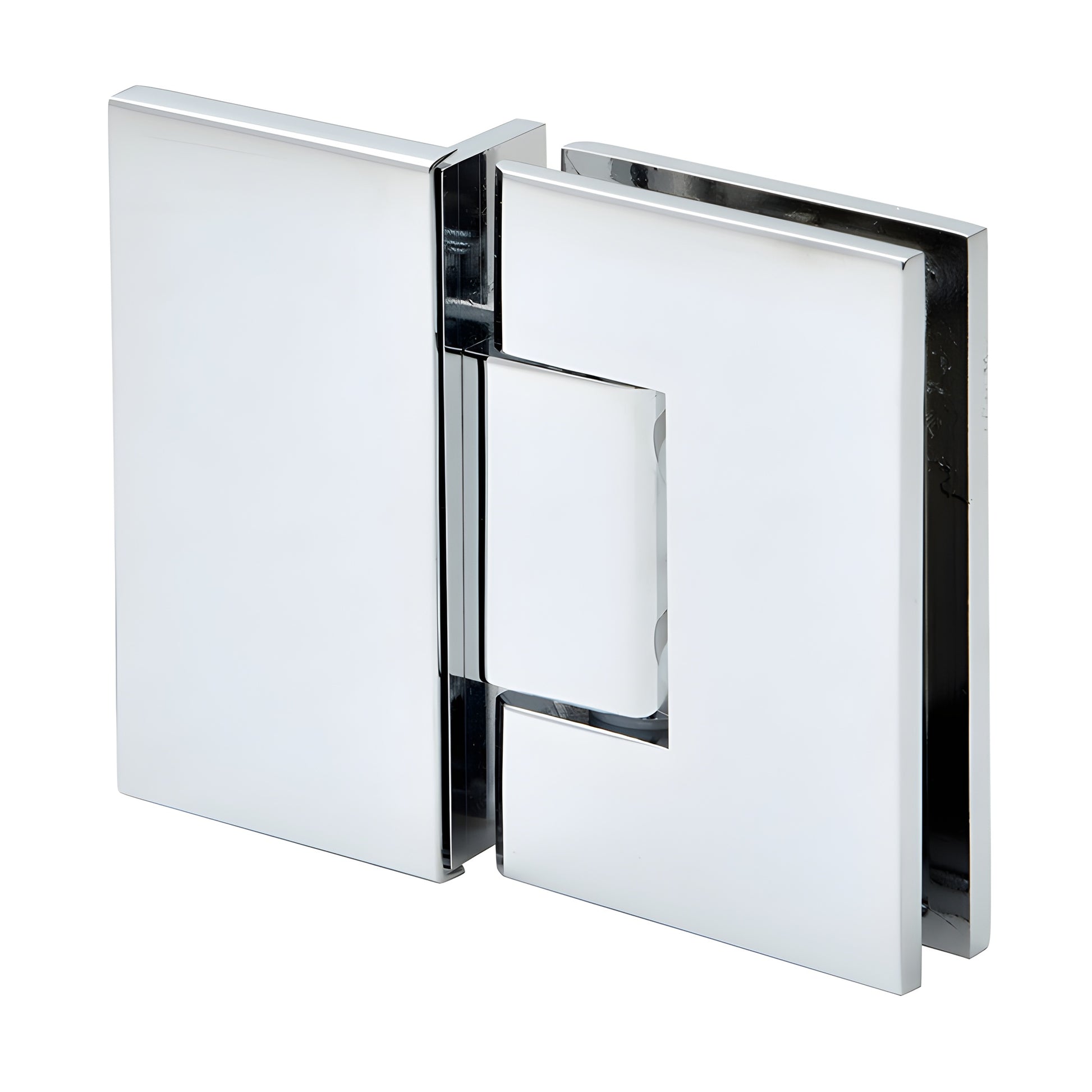

Forged solid brass construction and oversized hinge plates make these Melbourne Series shower door hinges ideal for durable, corrosion-resistant tempered glass shower doors. Designed for easy glass fabrication with a simple rectangular cut-out, the series includes four wall-mount models, a 180° glass-to-glass model, and removable cover plates to conceal hinge screws.

Load Capacity & Door Size
Using two hinges on 1/2", 3/8", or 5/16" glass (12, 10, 8 mm): holds up to 100 lbs (45 kg) with a maximum door width of 30" (762 mm).
Using three hinges on the same glass thicknesses: holds up to 120 lbs (54 kg) with a maximum door width of 34" (864 mm).

SPECIFICATIONS:
Glass Thickness: 1/2", 3/8", and 5/16" (12, 10, 8 mm) tempered safety glass
Construction: Forged solid brass (corrosion-resistant)
Hinge Swing: 90° in and 90° out (factory set position)
Closing Type: Self-centering when within 15° of closed position
Cut-Out: Simple rectangular cut-out required (use included template)
Includes: Gaskets, screws, and glass fabrication dimensions

Product Warning:
CRL shower door hinges are intended for residential or hotel shower use only. For alternative uses, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge; cut-out dimensions may differ from other brands.

Enhance your tempered glass shower door with durable, solid brass Melbourne Series hinges (MEL054CH). Contact CRL Shower Door Technical Sales or order now to specify finish and confirm cut-out details.
