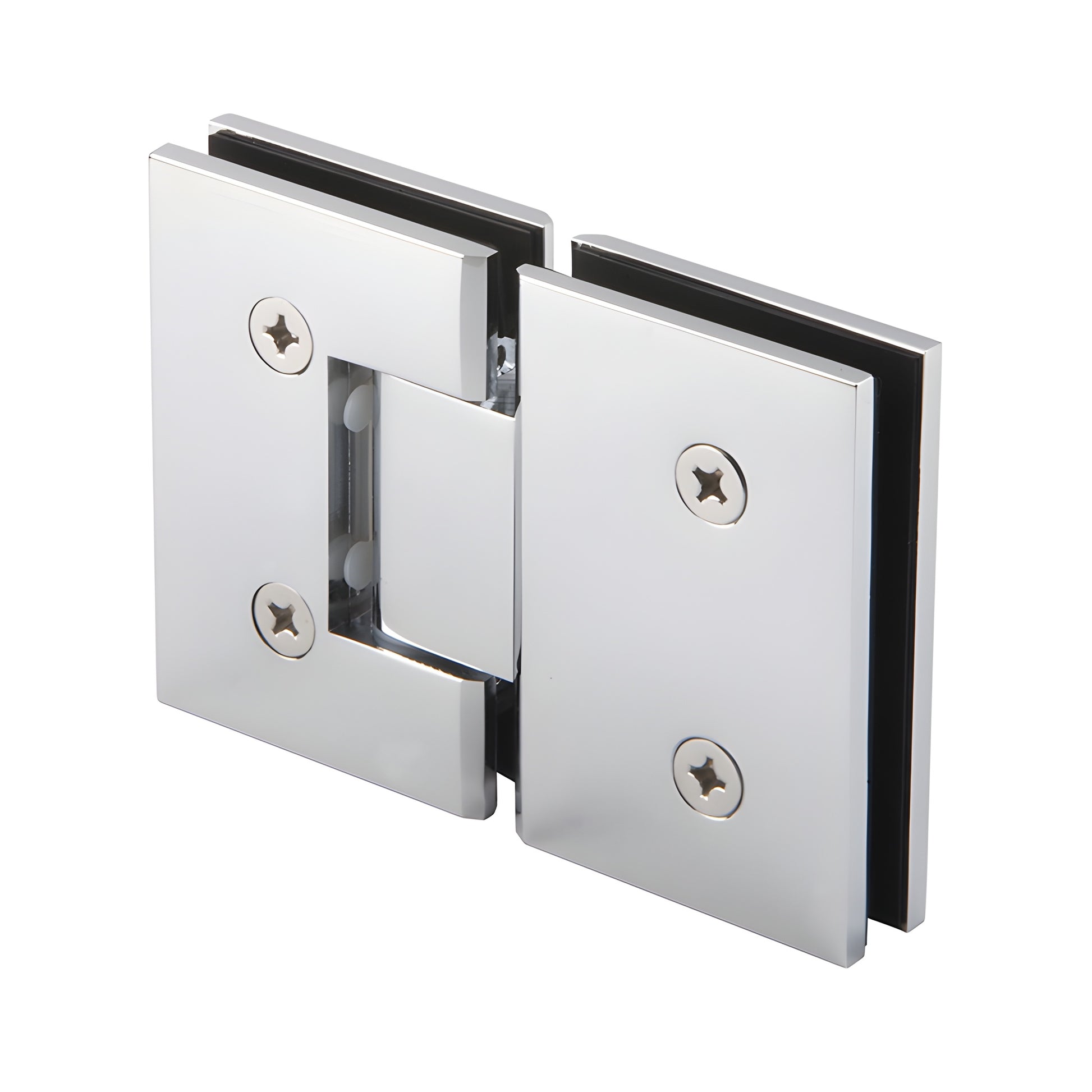

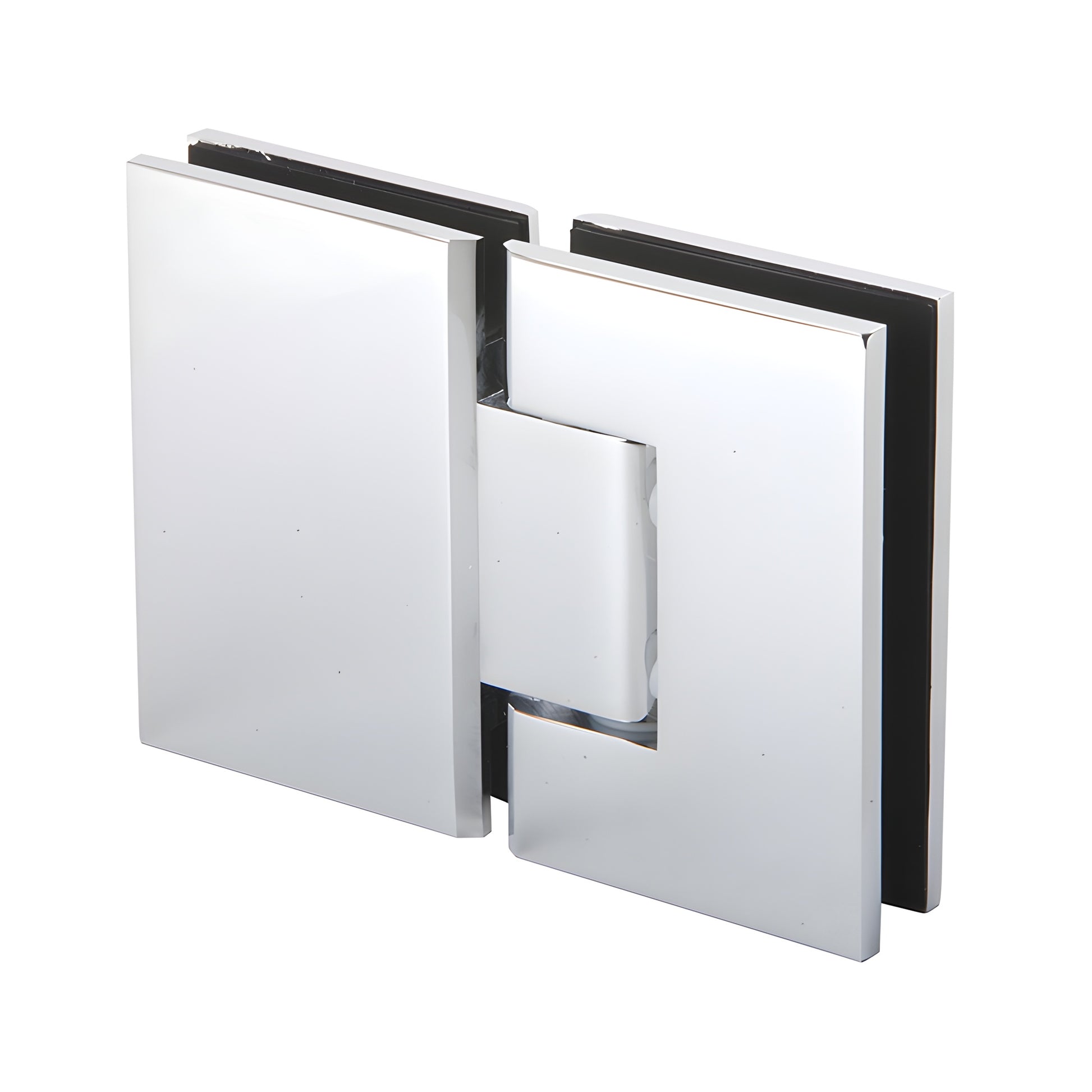

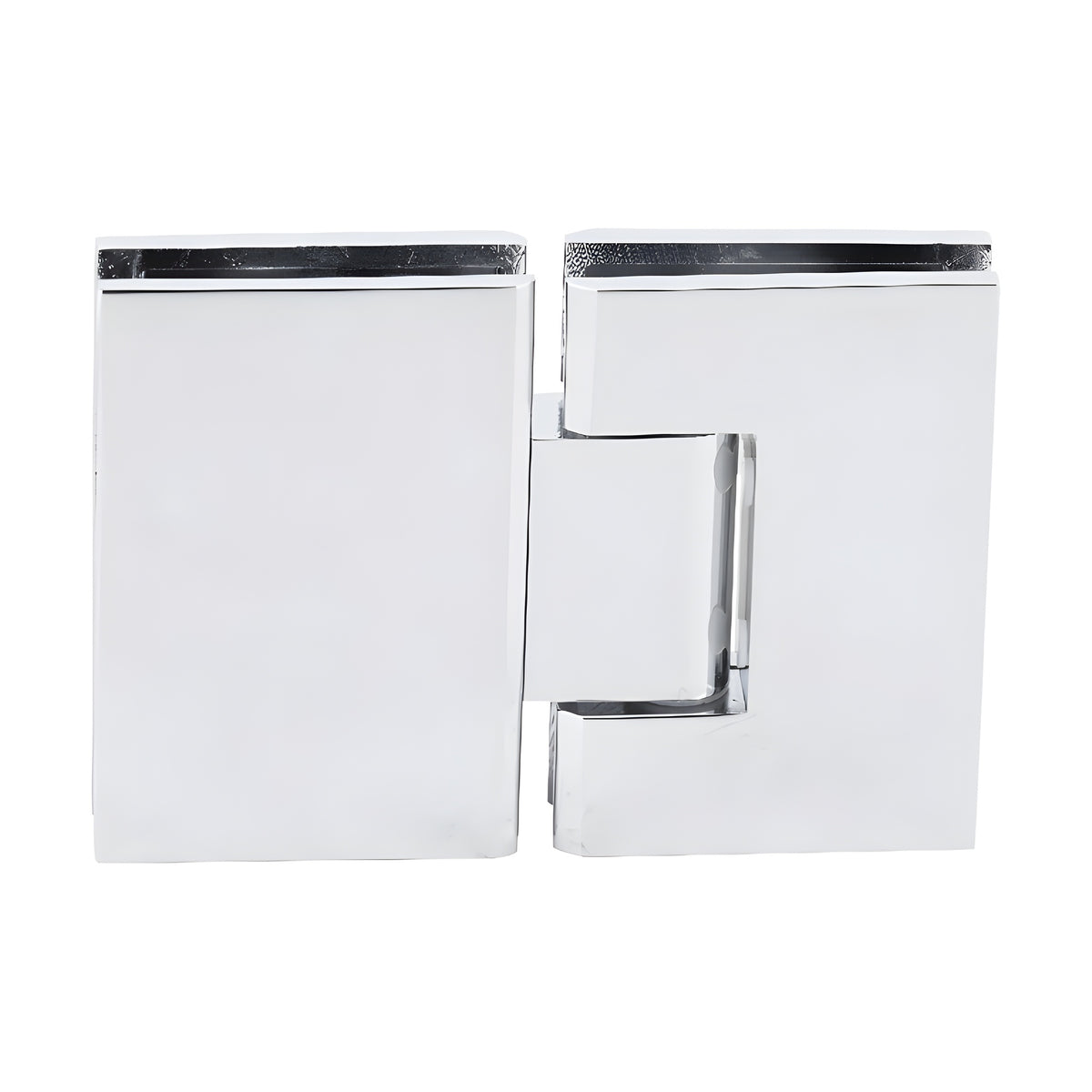

CRL Melbourne 180° Polished Chrome Glass-to-Glass Shower Hinge

• Large hinge plates provide increased clamping force for glass shower doors
• Inset-style gasket system simplifies installation
• Glass fabrication required: simple rectangular cut-out
• Compatible with 5/16", 3/8", and 1/2" (8, 10, 12 mm) tempered safety glass

CRL Melbourne Series Hinges (SKU: MEL180CH) feature large hinge plates for greater clamping force and an inset gasket system for easier installation on frameless glass shower doors. The design requires a simple rectangular glass cut-out and is constructed from solid brass for durability. Available as wall-mount models, a 180° glass-to-glass model, and replacement cover plates (MEL024) to conceal hinge plate screws. Stocked in three popular finishes; custom finishes available.

Load Capacity
Using two hinges with 5/16", 3/8", or 1/2" glass (8, 10, 12 mm) — holds up to 100 lbs (45 kg); maximum door width 30" (762 mm).

Using three hinges with 5/16", 3/8", or 1/2" glass (8, 10, 12 mm) — holds up to 120 lbs (54 kg); maximum door width 34" (864 mm).

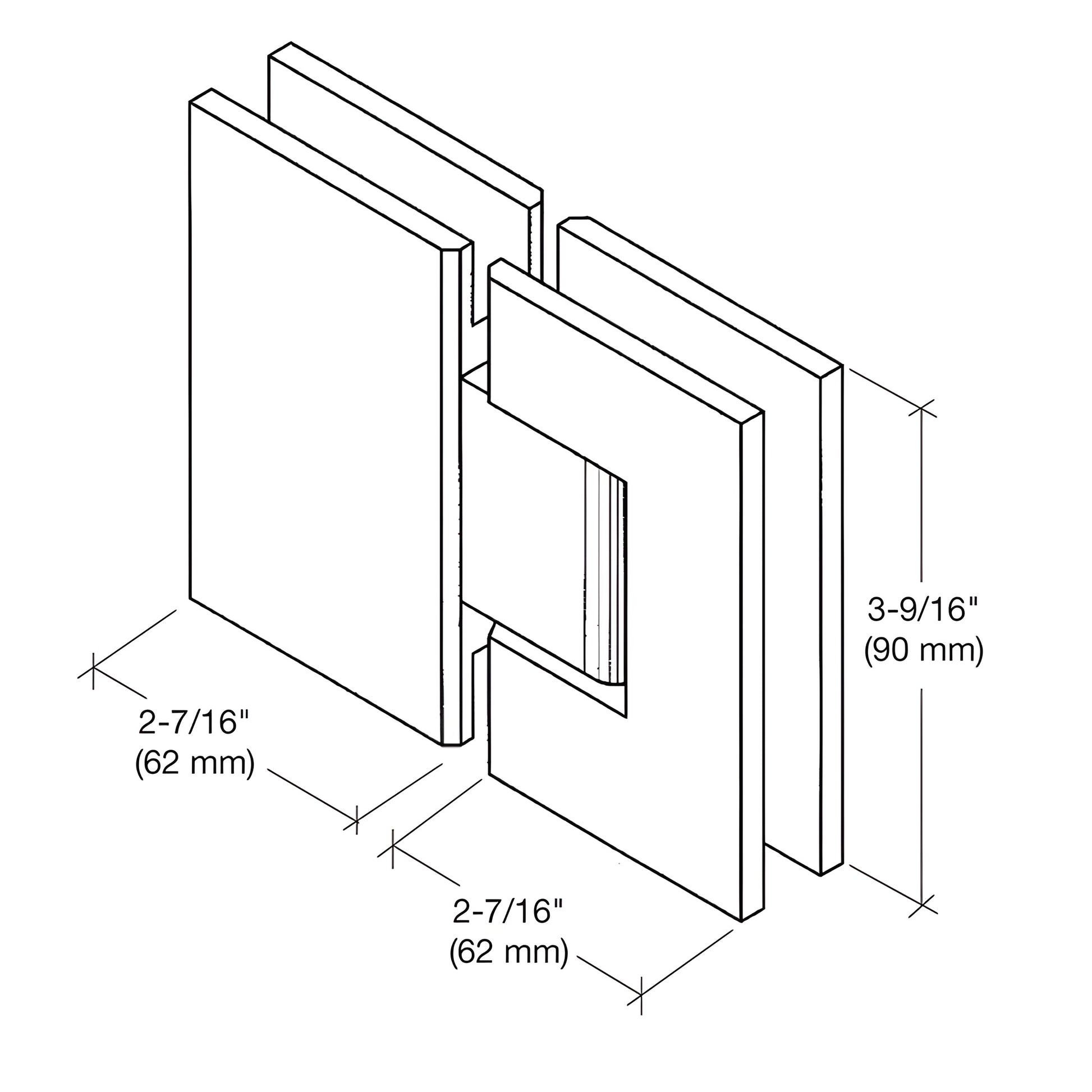

SPECIFICATIONS:
Glass Thickness: 5/16", 3/8", and 1/2" (8, 10, 12 mm) tempered safety glass
Construction: Solid brass (shower door hinge)
Hinge Swings: 90° in and 90° out (factory set)
Closing Type: Self-centering within 15° of closed position
Cut-Out Required: Simple rectangular cut-out — use included template only
Includes: Gaskets, screws, and glass fabrication dimensions

For technical questions or custom finishes, contact CRL Shower Door Technical Sales Department.

Product Warning:

CRL shower door hinges are designed for residential and hotel shower use only. For applications outside intended use, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge — cut-out dimensions for CRL hinges may not match other brands.

Order the MEL180CH solid brass Melbourne Series hinge for reliable, easy-install glass shower door hardware — contact CRL or your local distributor to buy now.
